Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine front cover (6019) and crankshaft sprockets (6306). Refer to Timing Drive Components .
  3. Remove the oil pan (6675). Refer to OIL PAN - Automatic Transmission  or OIL PAN - Manual Transmission .
  4. Remove the oil pump (6600).
    • Remove the bolts.
    • Remove the oil pump.

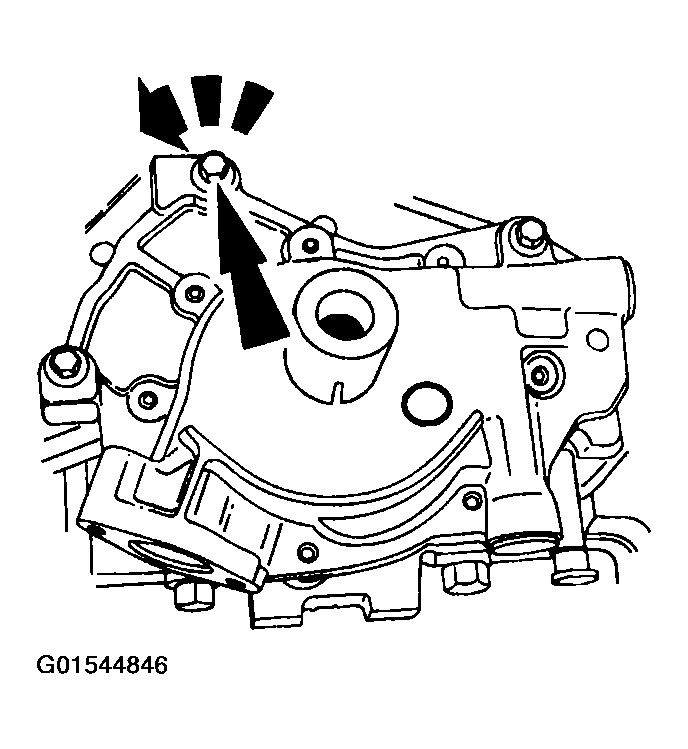

    Fig 1: Removing Oil Pump
    G01544846Courtesy of FORD MOTOR CO.
