Oil Pump: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean and inspect the mating surfaces.
  2. Position the oil pump and loosely install the bolts. Tighten the bolts in the sequence shown.

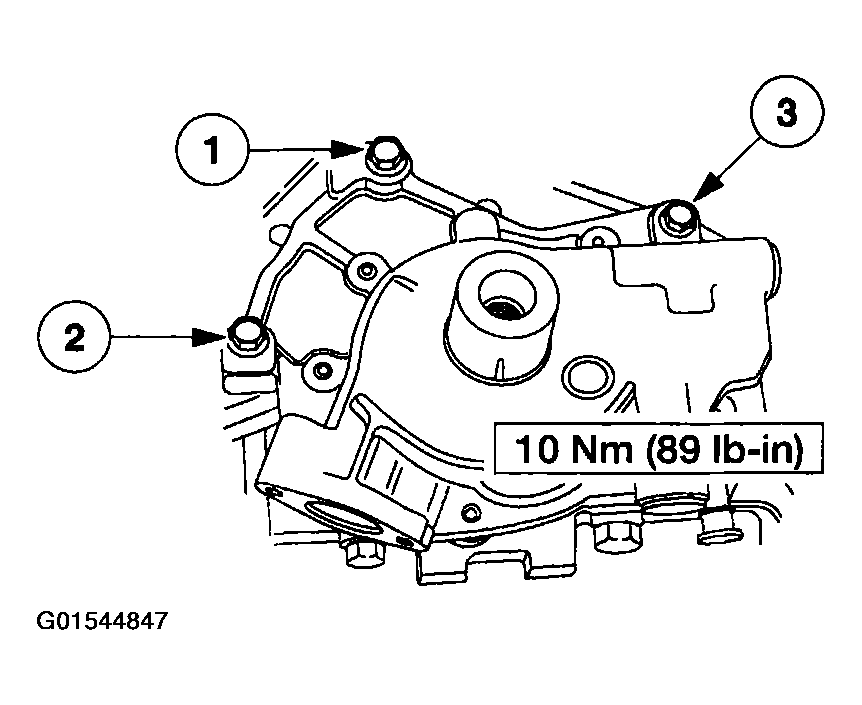

    Fig 1: Positioning Oil Pump And Installing Bolts
    G01544847Courtesy of FORD MOTOR CO.
  3. Install the oil pan. Refer to OIL PAN - Automatic Transmission  or OIL PAN - Manual Transmission .
  4. Install the timing chain (6268). Refer to Timing Drive Components .
  5. Connect the battery ground cable.
