Oil Pan - Automatic Transmission: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Partially drain the radiator and disconnect the upper radiator hose at the radiator.
  3. Remove the air cleaner outlet tube.
  4. Remove the accelerator cable splash shield.

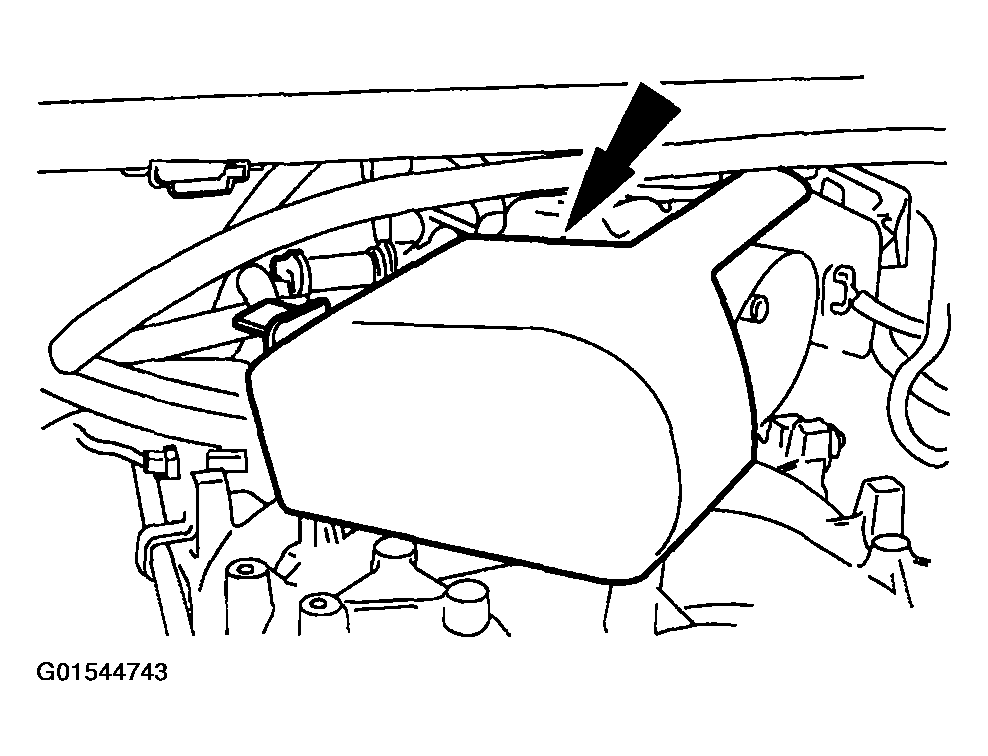

    Fig 1: Removing Accelerator Cable Splash Shield
    G01544743Courtesy of FORD MOTOR CO.
  5. Disconnect the accelerator and speed control cables and return spring.

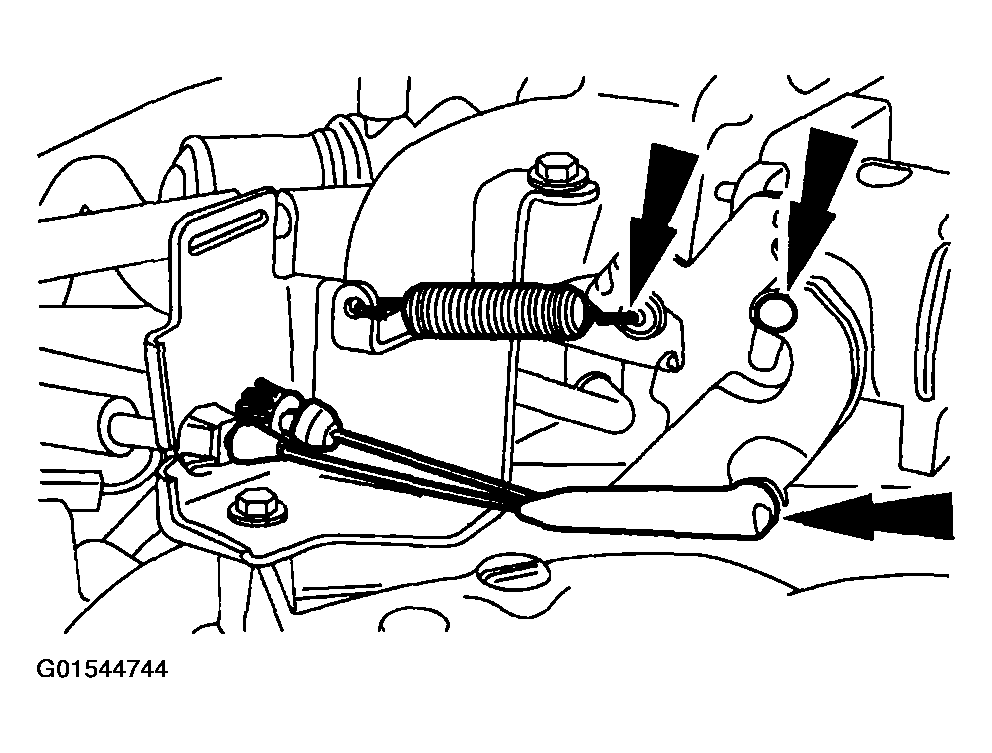

    Fig 2: Disconnecting Accelerator And Speed Control Cables And Return Spring
    G01544744Courtesy of FORD MOTOR CO.
  6. Position the accelerator cable bracket aside.
    • Remove the bolts.
    • Position the bracket and cables aside.

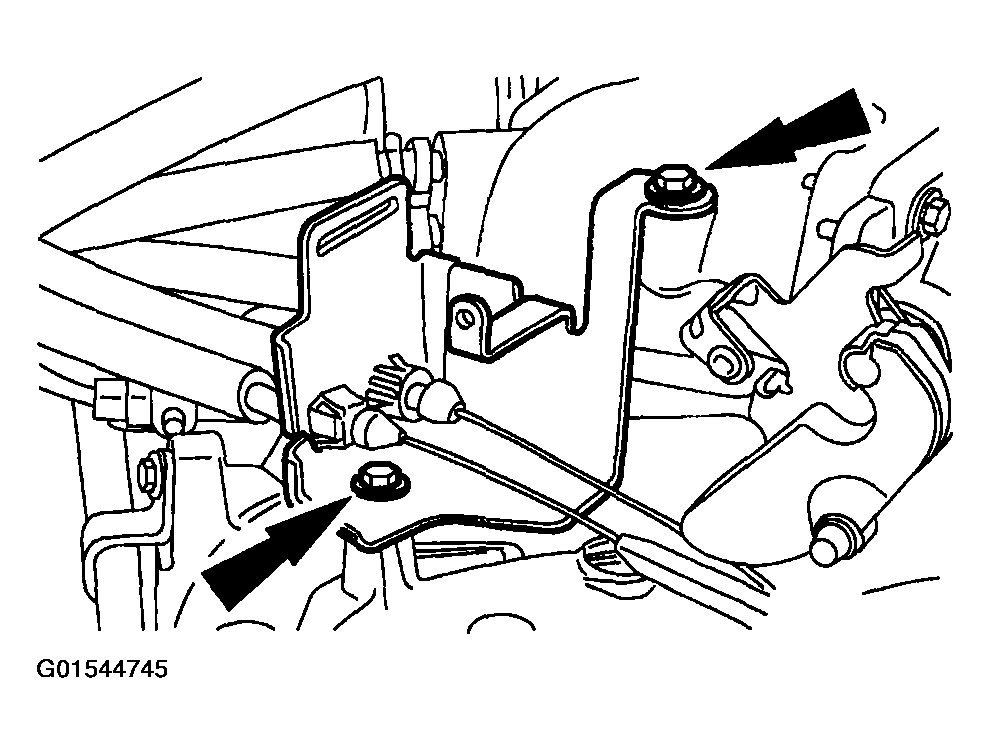

    Fig 3: Positioning Accelerator Cable Bracket
    G01544745Courtesy of FORD MOTOR CO.
  7. Disconnect the PCV vacuum and coolant hoses.

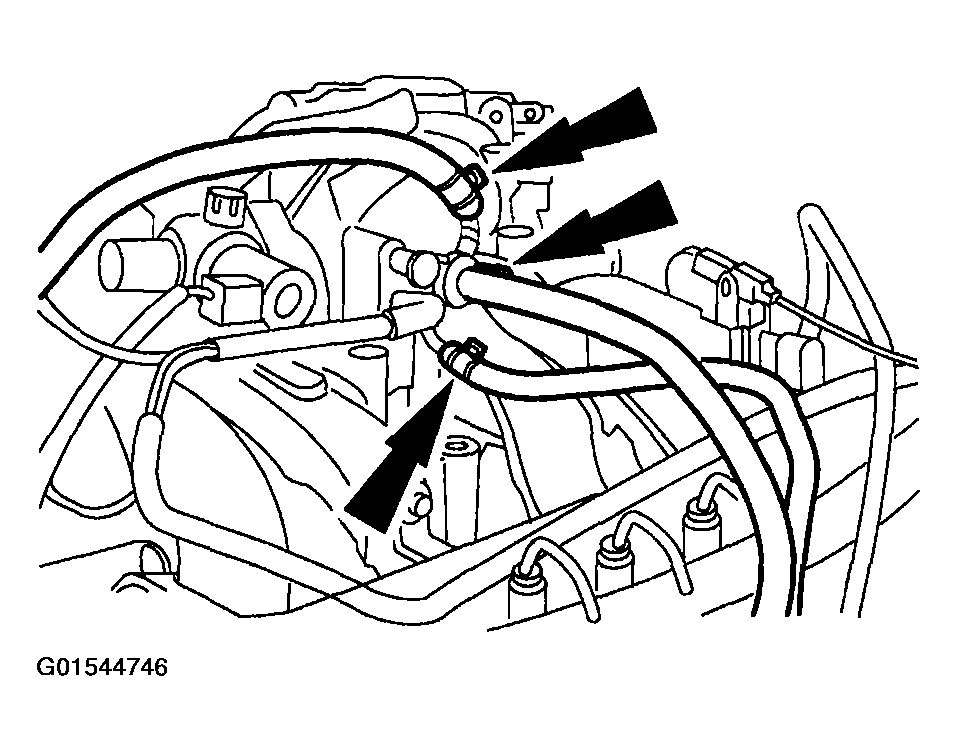

    Fig 4: Disconnecting PCV Vacuum And Coolant Hoses
    G01544746Courtesy of FORD MOTOR CO.
  8. Disconnect the following vacuum lines:
    • PCV
    • brake booster
    • engine sensor control wiring harness

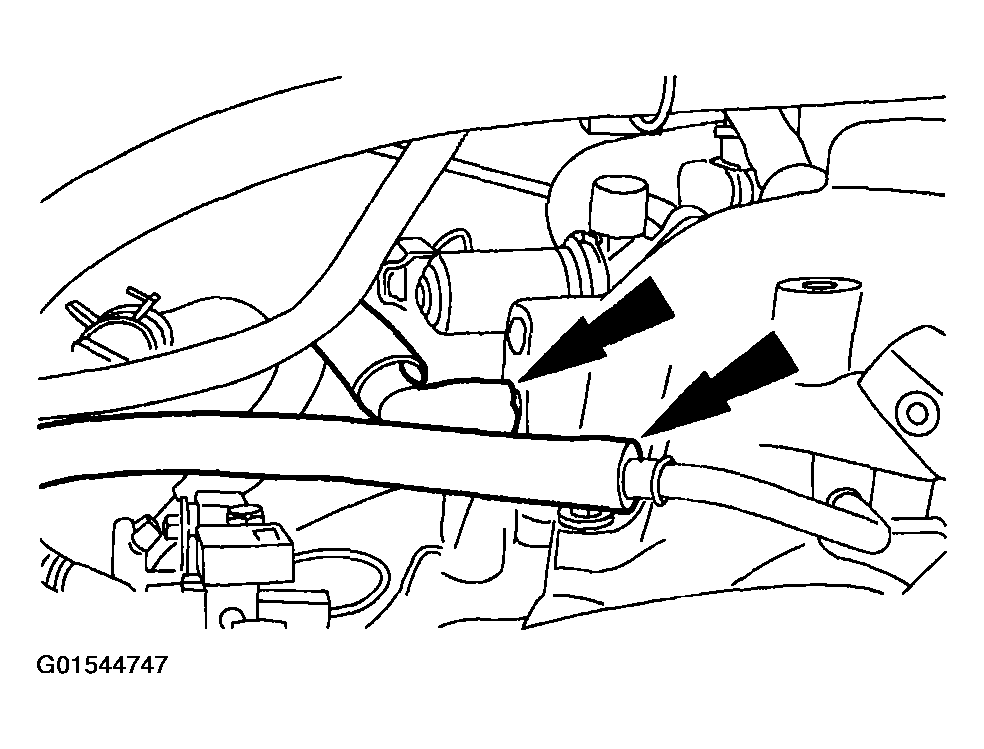

    Fig 5: Disconnecting PCV And Brake Booster Tubes
    G01544747Courtesy of FORD MOTOR CO.
  9. Disconnect the vacuum line.

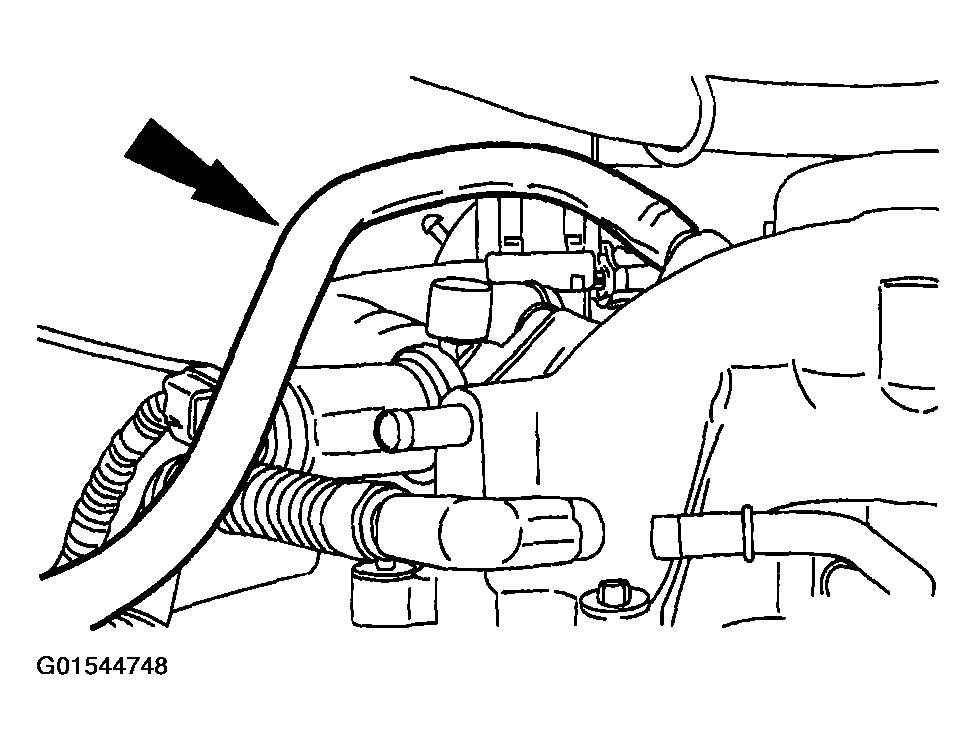

    Fig 6: Disconnecting Vacuum Line
    G01544748Courtesy of FORD MOTOR CO.
  10. Disconnect the idle air control motor electrical connector and the bypass hose.

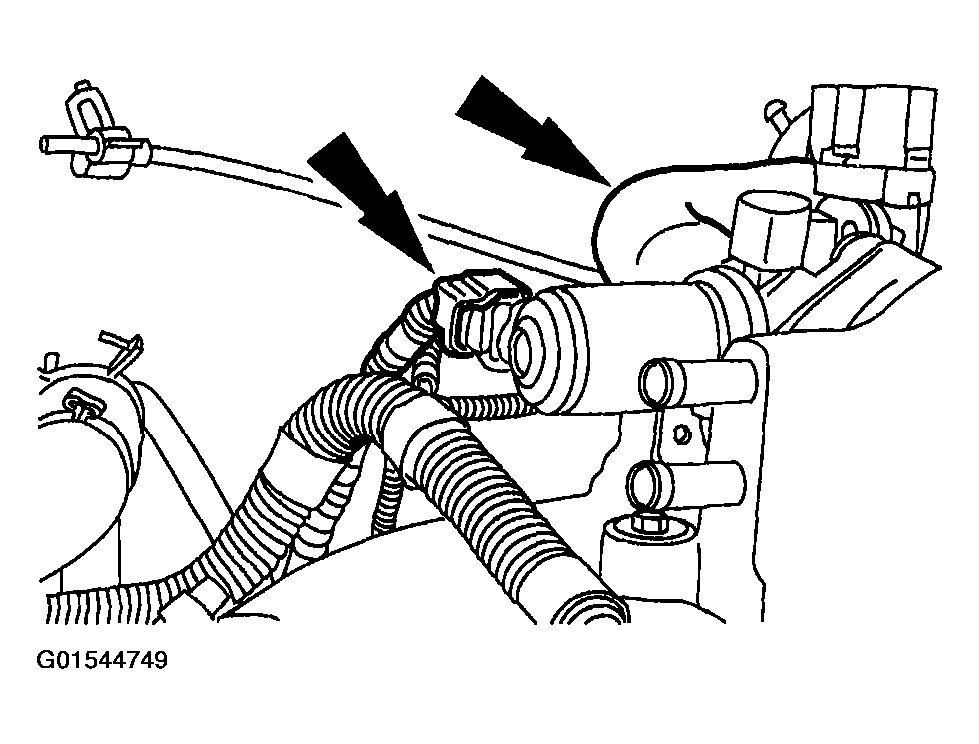

    Fig 7: Disconnecting Idle Air Control Motor Electrical Connector And Bypass Hose
    G01544749Courtesy of FORD MOTOR CO.
  11. If equipped, disconnect the EGR transducer and the throttle position sensor connectors.

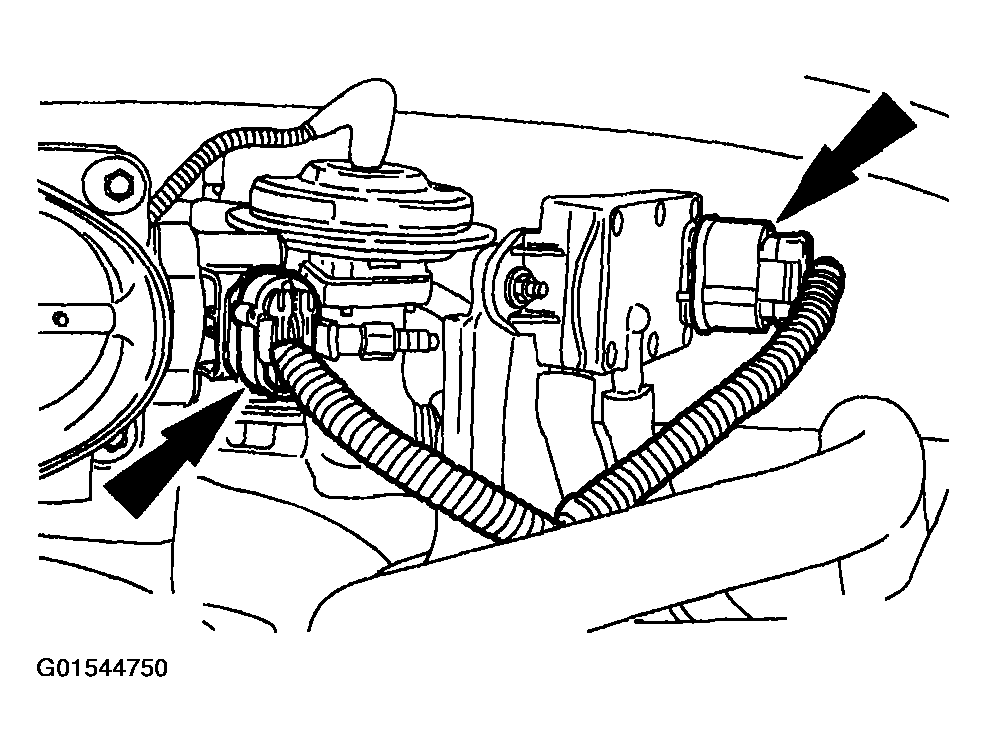

    Fig 8: Disconnecting EGR Transducer And Throttle Position Sensor Connectors
    G01544750Courtesy of FORD MOTOR CO.
  12. If equipped, disconnect the EGR transducer vacuum lines.

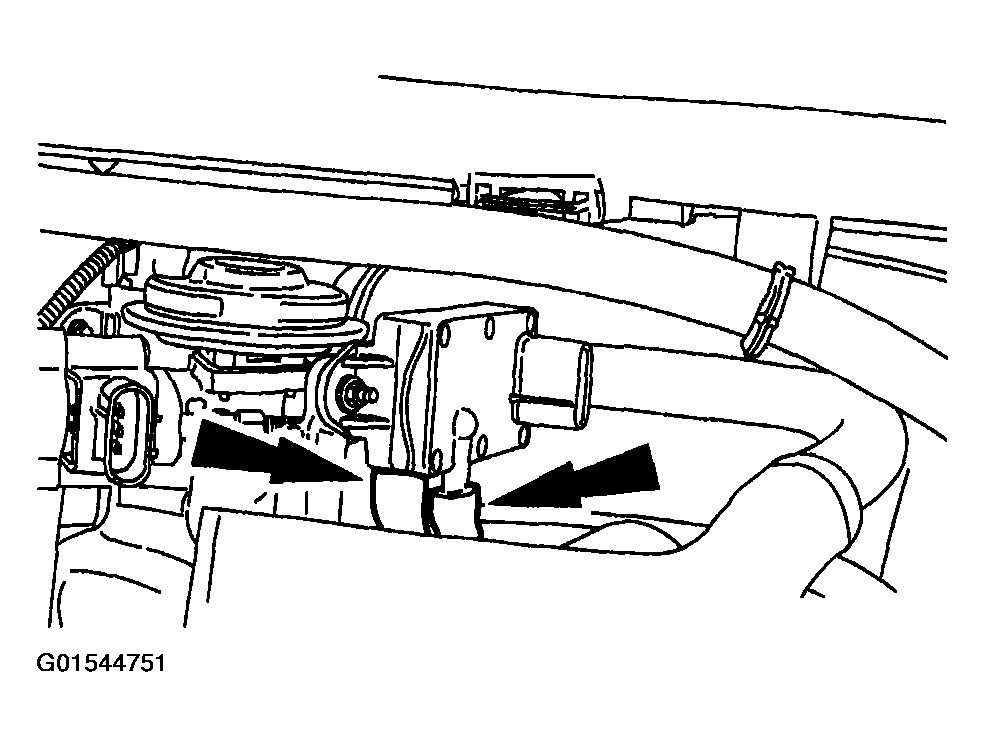

    Fig 9: Disconnecting EGR Transducer Vacuum Lines
    G01544751Courtesy of FORD MOTOR CO.
  13. If equipped, disconnect the exhaust gas recirculation (EGR) valve and the exhaust manifold tube lower fitting.

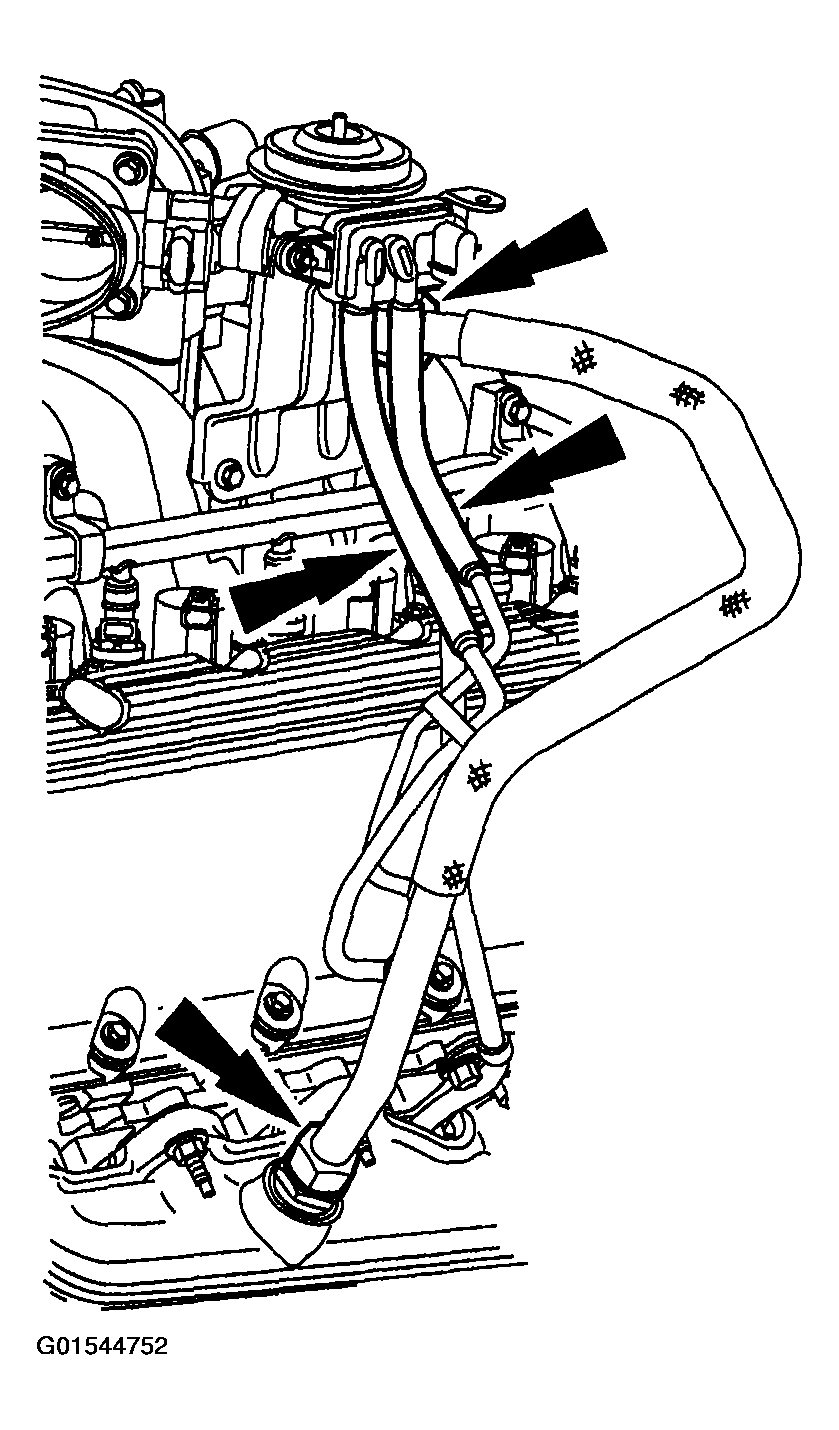

    Fig 10: Disconnecting Exhaust Gas Recirculation (EGR) Valve And Exhaust Manifold Tube Lower Fitting
    G01544752Courtesy of FORD MOTOR CO.
  14. If equipped, remove the EGR transducer bracket.

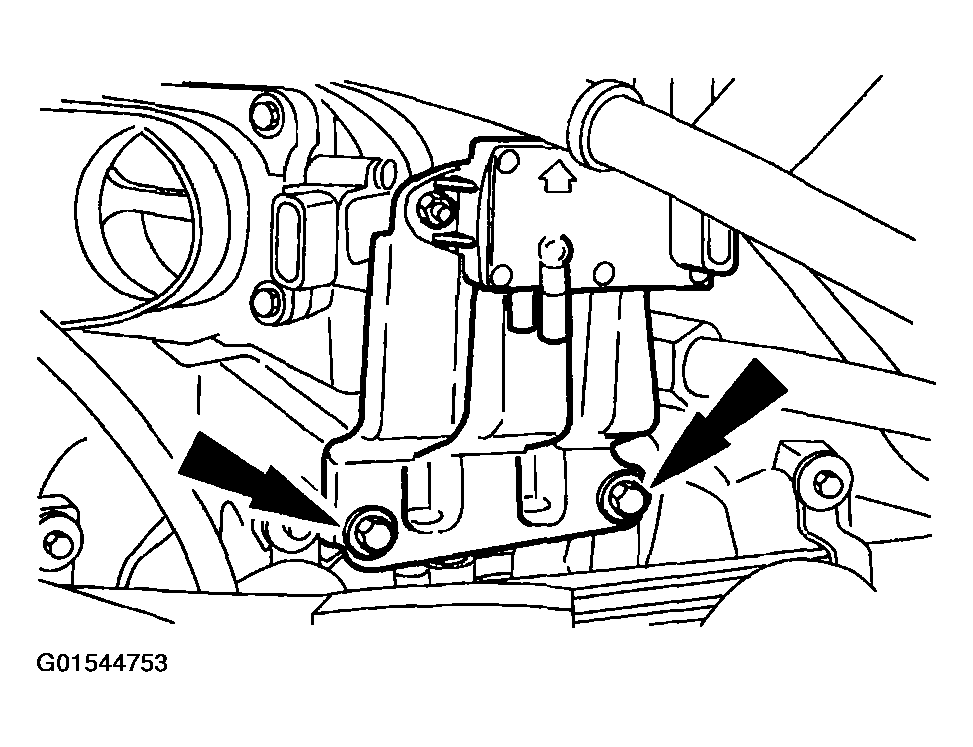

    Fig 11: Removing EGR Transducer Bracket
    G01544753Courtesy of FORD MOTOR CO.
  15. If equipped, remove the EGR valve to exhaust manifold tube.
    • Disconnect the upper fitting.
    • Remove the tube.

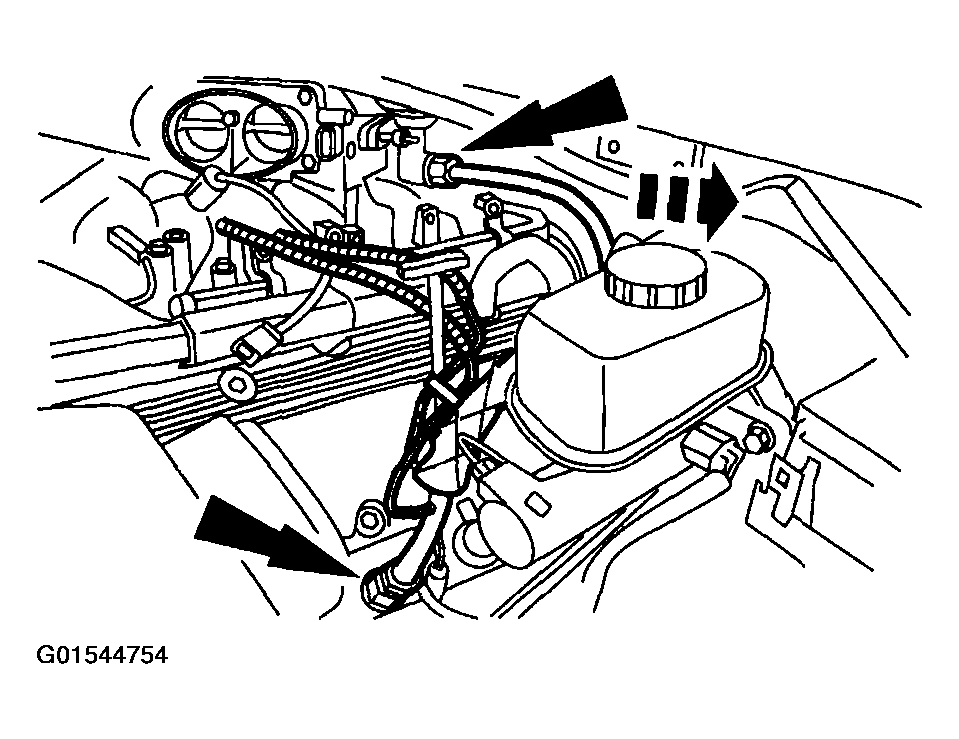

    Fig 12: Removing EGR Valve To Exhaust Manifold Tube
    G01544754Courtesy of FORD MOTOR CO.
  16. If equipped, disconnect the EGR valve vacuum line.

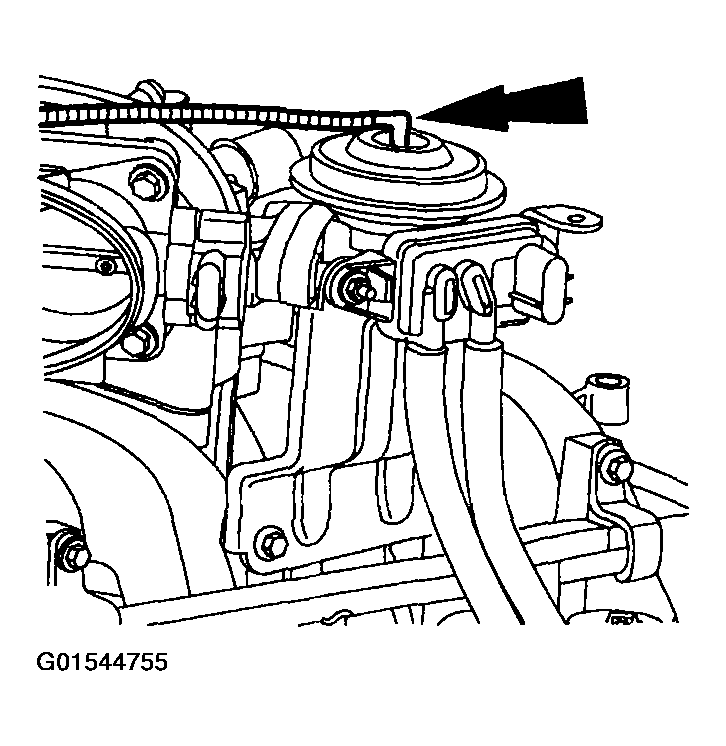

    Fig 13: Disconnecting EGR Valve Vacuum Line
    G01544755Courtesy of FORD MOTOR CO.
    17. NOTE: The EGR valve is shown removed for clarity.

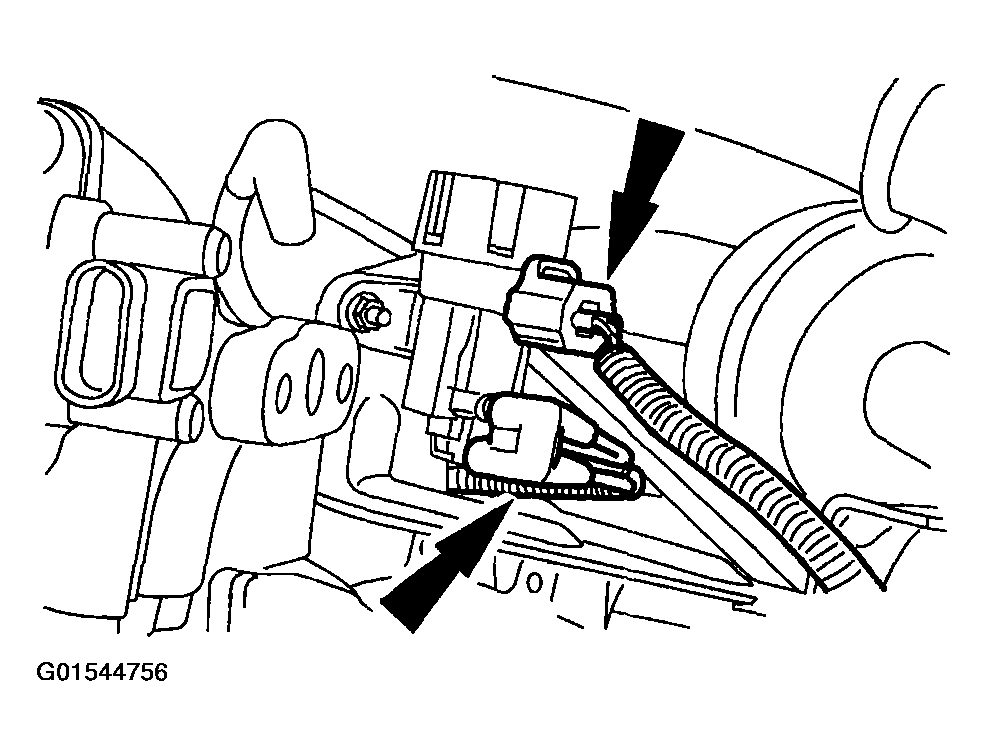

    Fig 14: Disconnecting EVR Solenoid Electrical And Vacuum Harness
    G01544756Courtesy of FORD MOTOR CO.
  17. If equipped, disconnect the EVR solenoid electrical and vacuum harness.
    18. NOTE: The idle air control valve is shown removed for clarity.

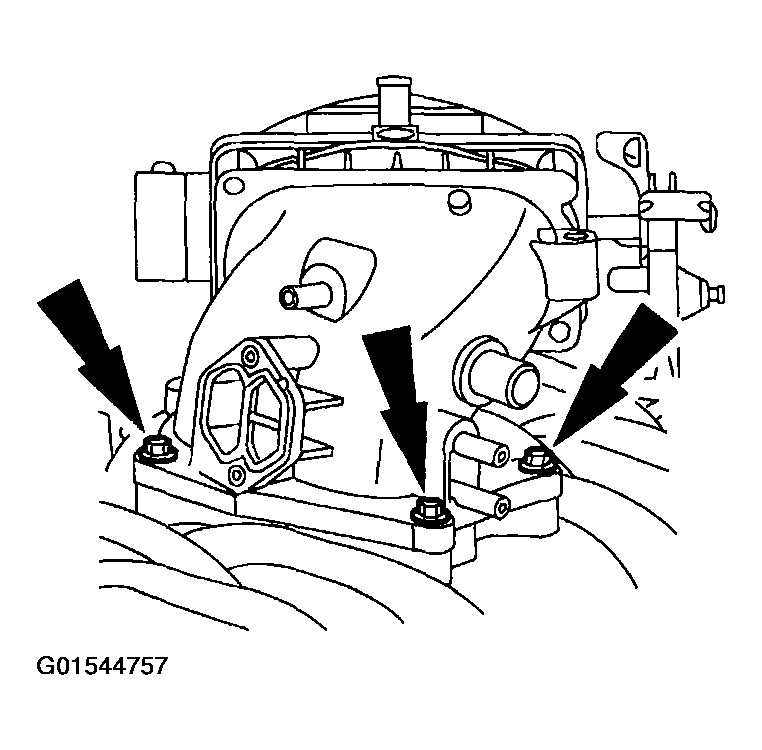

    Fig 15: Removing Throttle Body Adapter
    G01544757Courtesy of FORD MOTOR CO.
  18. Remove the throttle body adapter:
    • Remove the four bolts.
    • Remove the throttle body adapter.
    • Remove the throttle body adapter gasket.
  19. Remove the jack handle and the lug wrench.

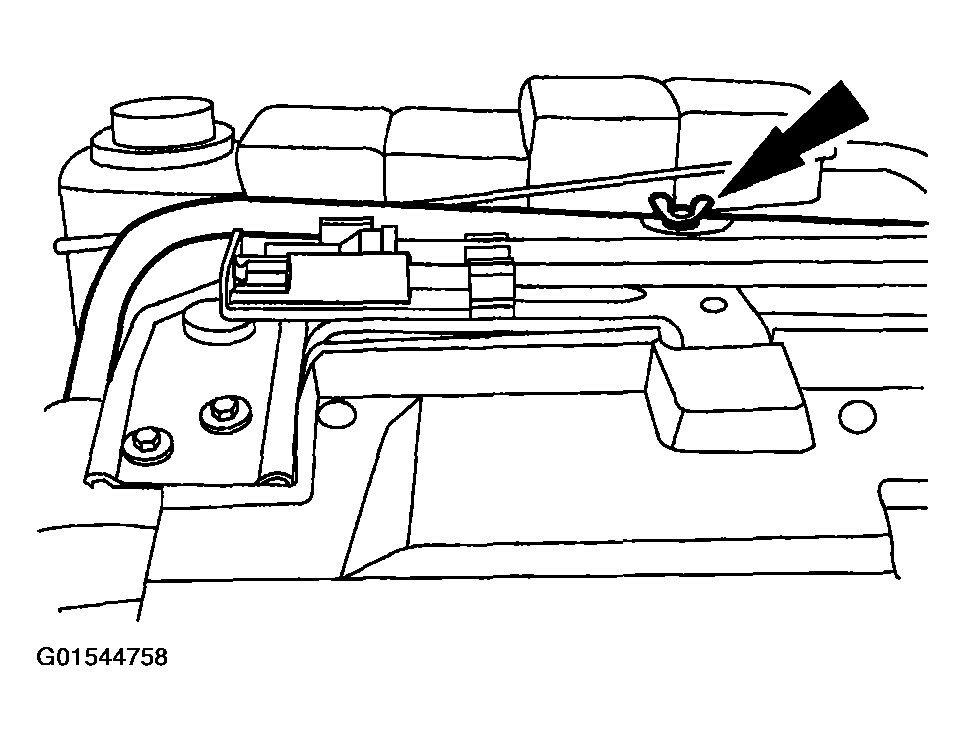

    Fig 16: Removing Jack Handle And Lug Wrench
    G01544758Courtesy of FORD MOTOR CO.
  20. Remove the bolts and position the degas bottle out of the way.

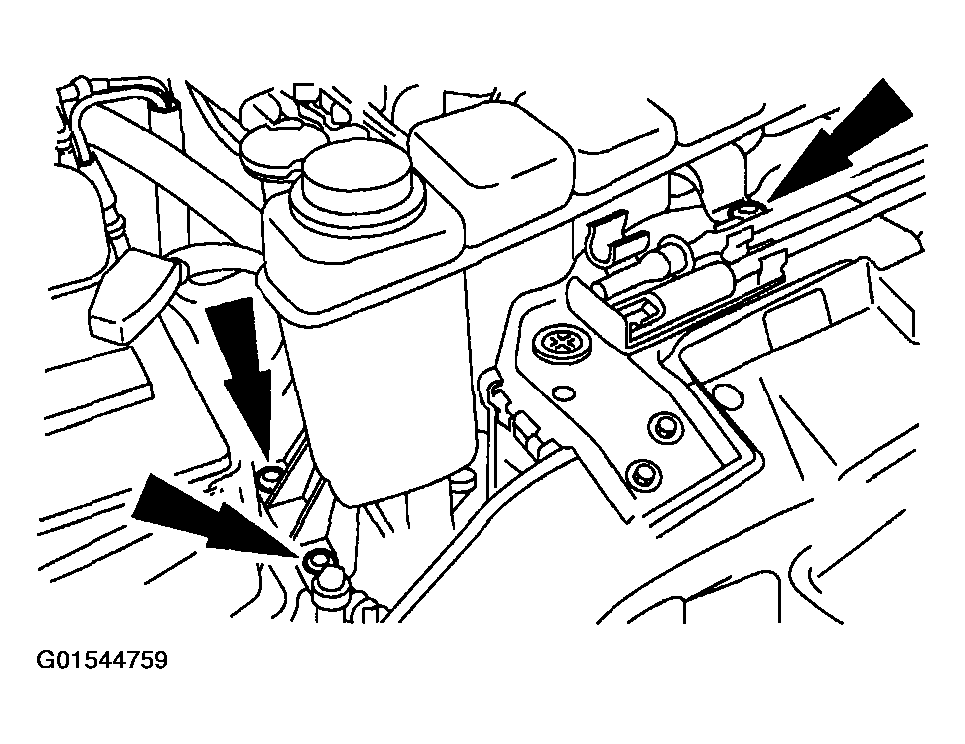

    Fig 17: Removing Bolts And Positioning Degas Bottle Out Of Way
    G01544759Courtesy of FORD MOTOR CO.
  21. Remove the two screws at the top of the fan shroud and position the fan shroud toward the engine.
  22. Remove the generator. Refer to GENERATORS & REGULATORS .
  23. Install the special tool on the engine using the generator mounting holes.

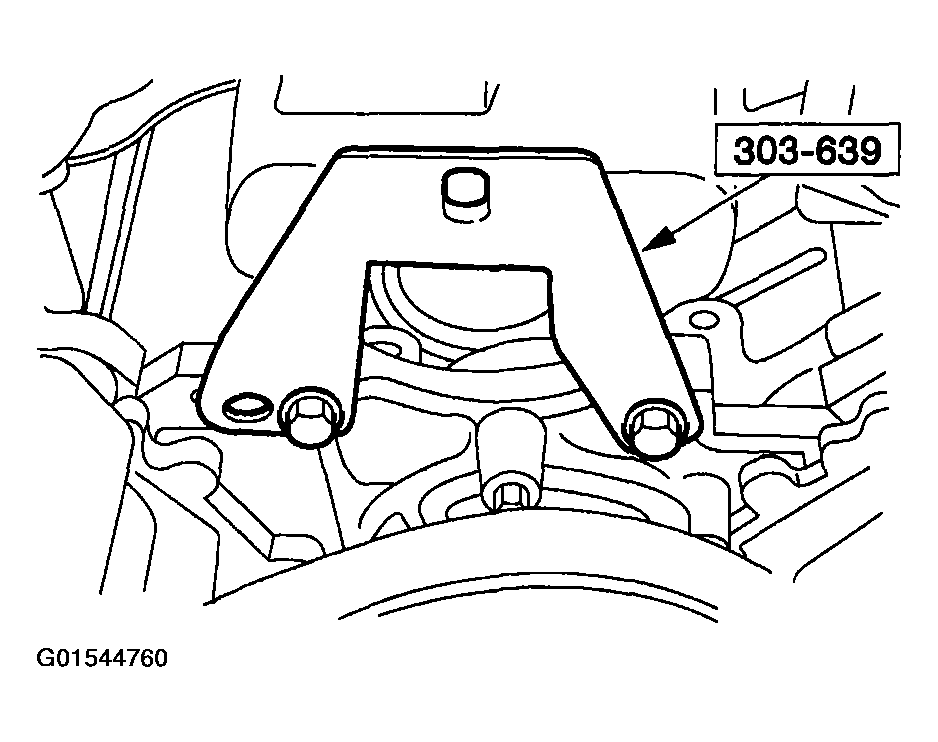

    Fig 18: Installing Special Tool On Engine Using Generator Mounting Holes
    G01544760Courtesy of FORD MOTOR CO.
  24. Raise and support the vehicle.
  25. Remove the engine mount nuts.

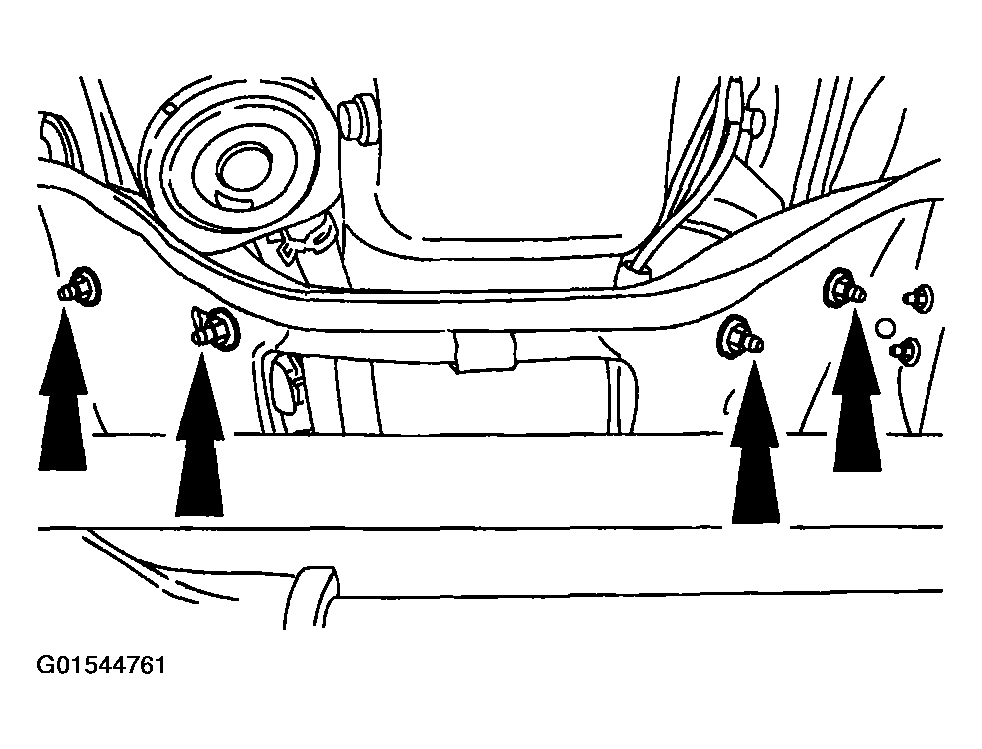

    Fig 19: Removing Engine Mount Nuts
    G01544761Courtesy of FORD MOTOR CO.
    26. CAUTION: Damage to the TSS/OSS may occur and cause transmission or torque converter operational concerns if the transmission is raised prior to removing TSS/OSS.
    CAUTION: Sensor bosses must be cleaned prior to removal and then plugged to prevent contamination from damaging internal components.
  26. If the vehicle is equipped with output shaft sensors (OSS), remove the sensors and install plugs in the transmission.
  27. Lower the vehicle.
  28. Raise the engine using a floor crane attached to the support bracket.
  29. Support the engine using the 3-Bar Engine Support by inserting the J-hook.

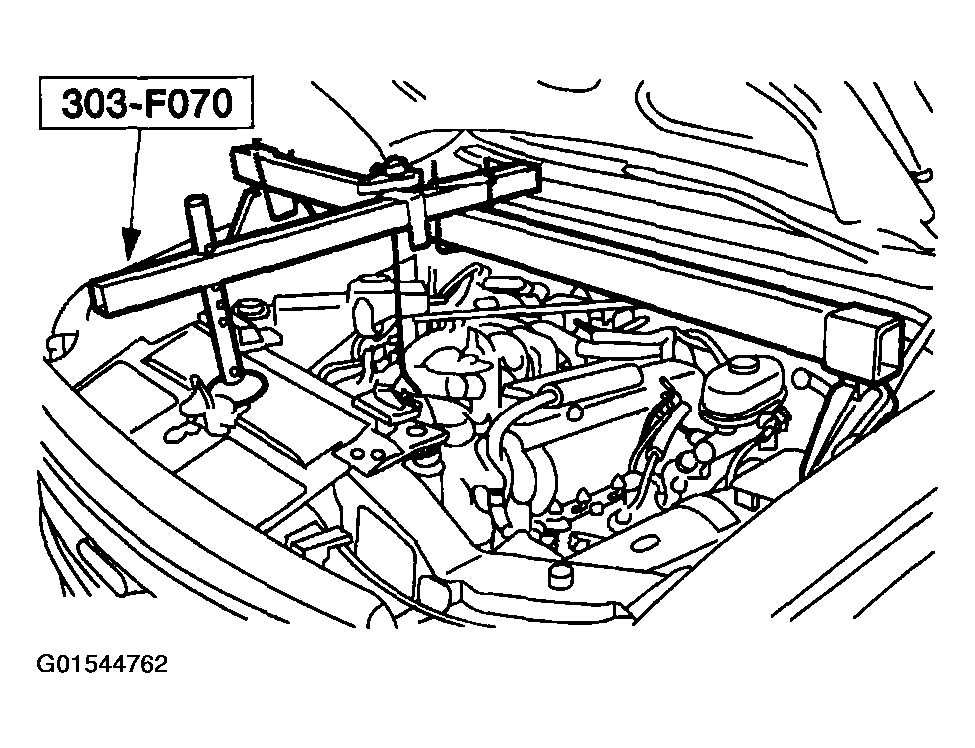

    Fig 20: Supporting Engine Using 3-Bar Engine Support By Inserting J-Hook
    G01544762Courtesy of FORD MOTOR CO.
  30. Raise and support the vehicle.
  31. Drain the engine oil and remove the oil bypass filter.
  32. Remove the bolt and position the oil cooler aside.

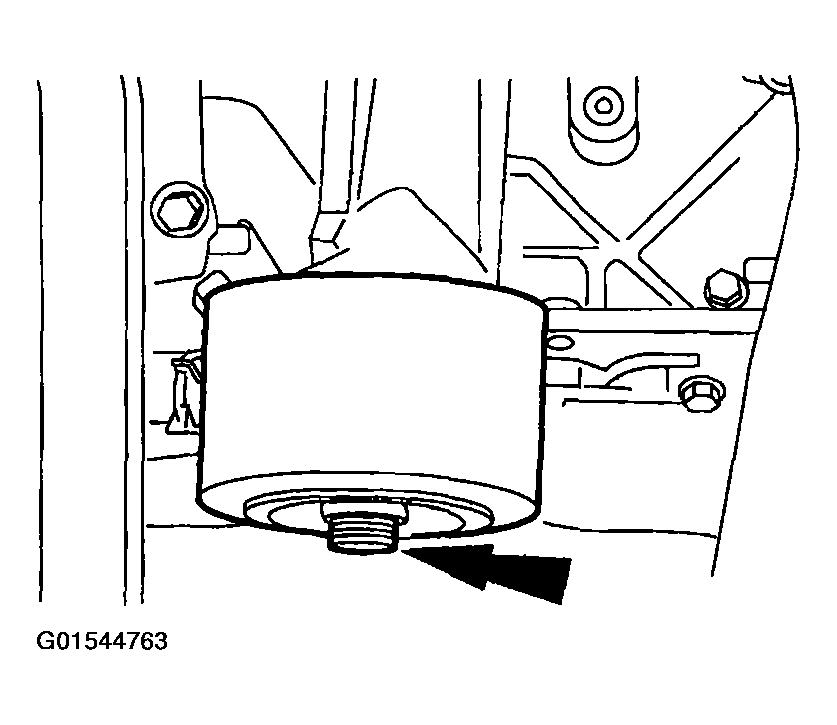

    Fig 21: Removing Bolt And Oil Cooler
    G01544763Courtesy of FORD MOTOR CO.
  33. Remove the dual converter Y-pipe. Refer to EXHAUST SYSTEM .
  34. Remove the flywheel inspection plate.

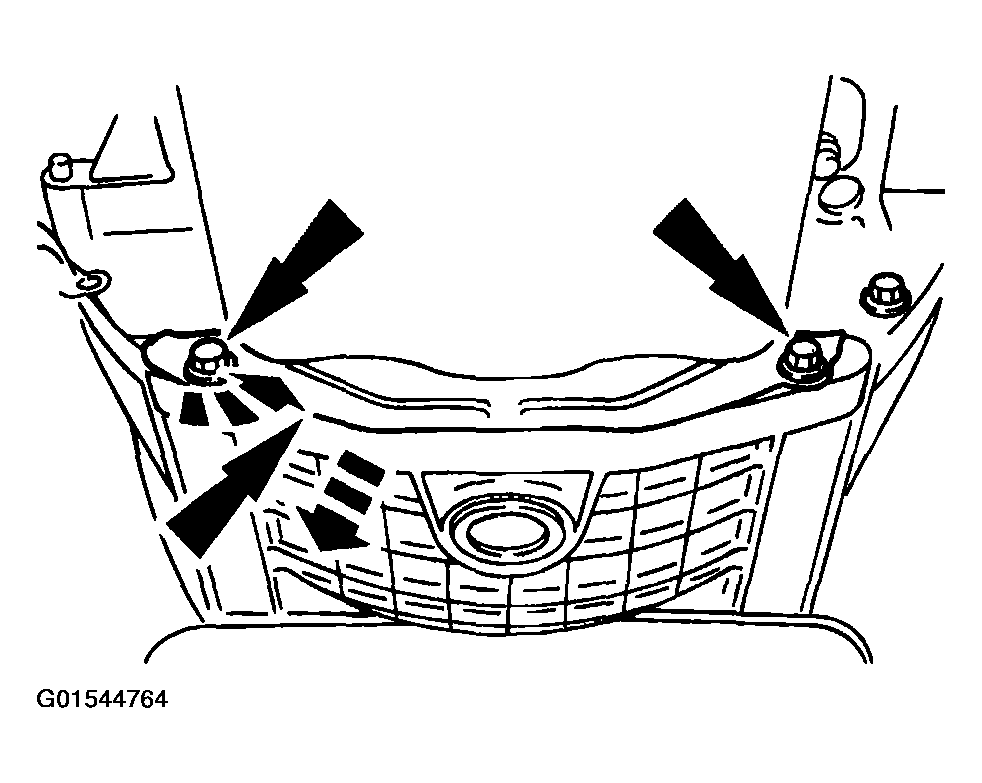

    Fig 22: Removing Flywheel Inspection Plate
    G01544764Courtesy of FORD MOTOR CO.
    35. CAUTION: Support the transmission on the oil pan rails only or internal transmission damage can occur.
  35. Support the transmission with a transmission jack.
  36. Remove transmission mount nuts.
    Fig 23: Removing Transmission Mount Nuts
    G01544765Courtesy of FORD MOTOR CO.
  37. Using the transmission jack, raise the transmission.
  38. Remove the nut and detach the transmission cooling tube bracket.

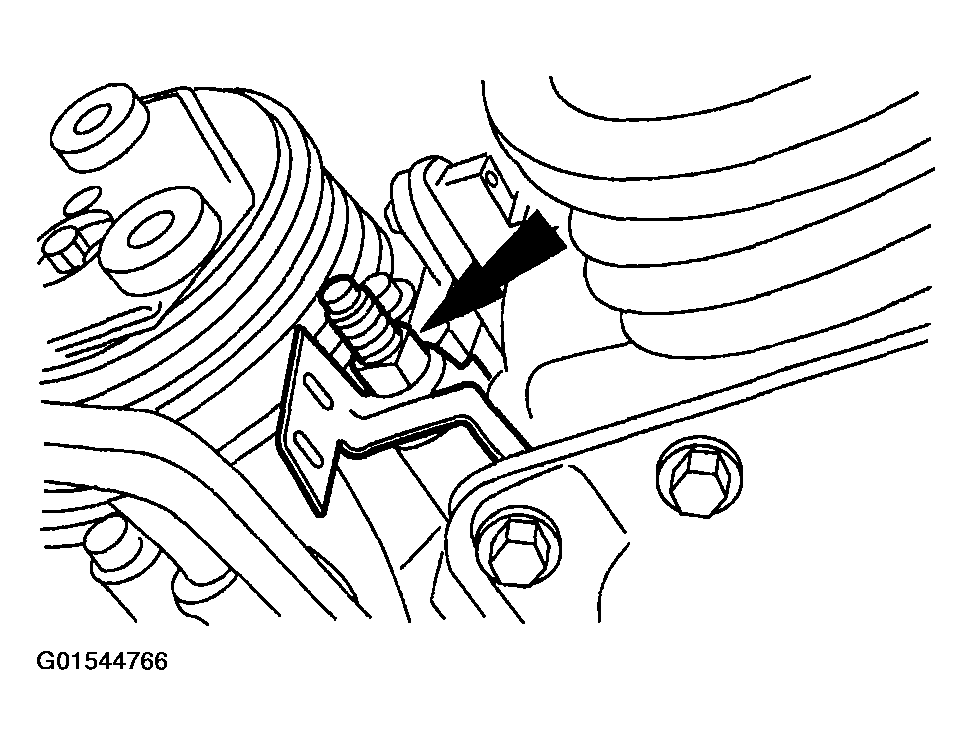

    Fig 24: Removing Nut And Detach Transmission Cooling Tube Bracket
    G01544766Courtesy of FORD MOTOR CO.
  39. Remove the bolts and partially lower the oil pan.

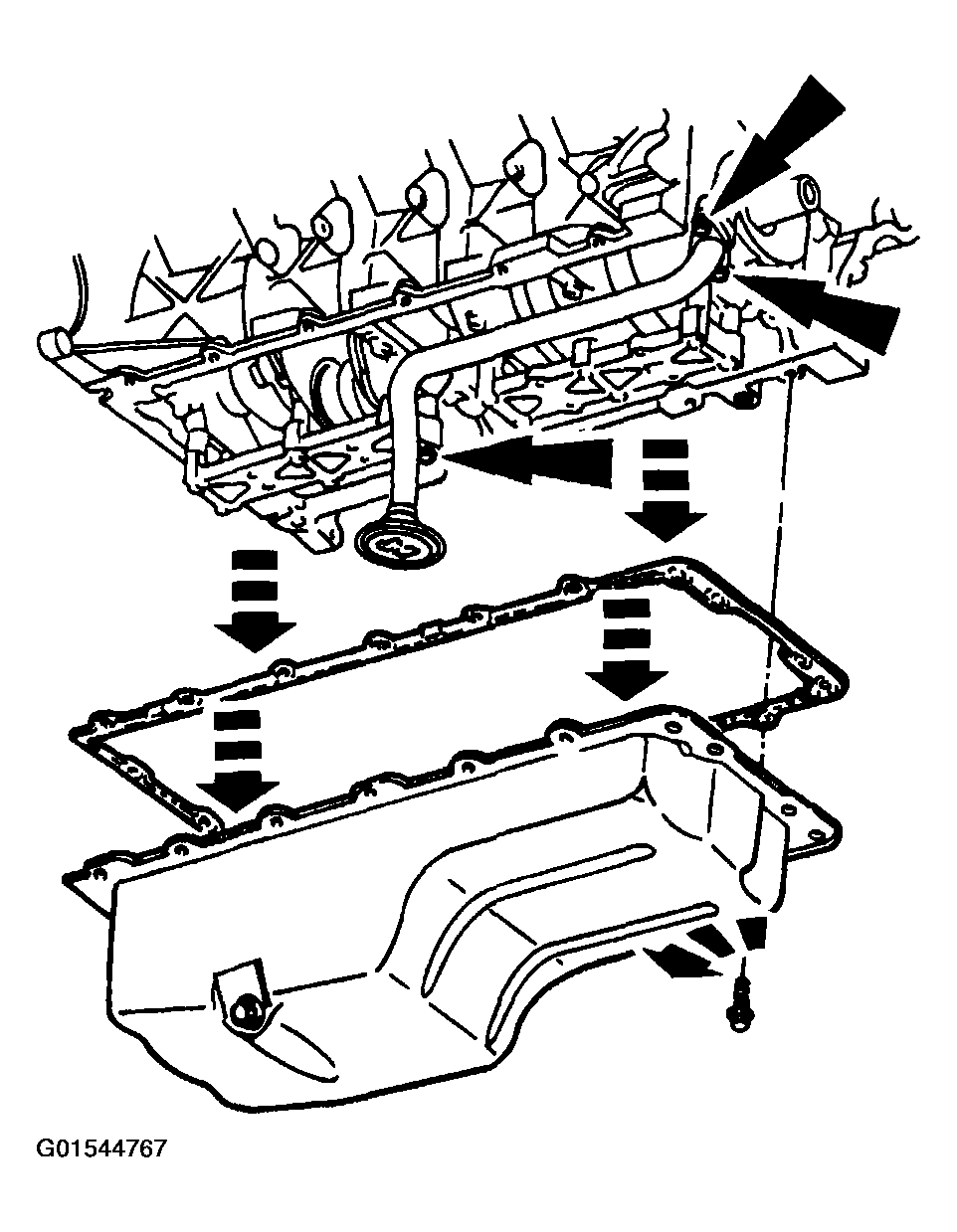

    Fig 25: Removing Bolts And Lower Oil Pan
    G01544767Courtesy of FORD MOTOR CO.
  40. Remove the bolts retaining the oil pump screen cover and pickup tube. Remove the pickup tube and spacer and let them drop into the oil pan.

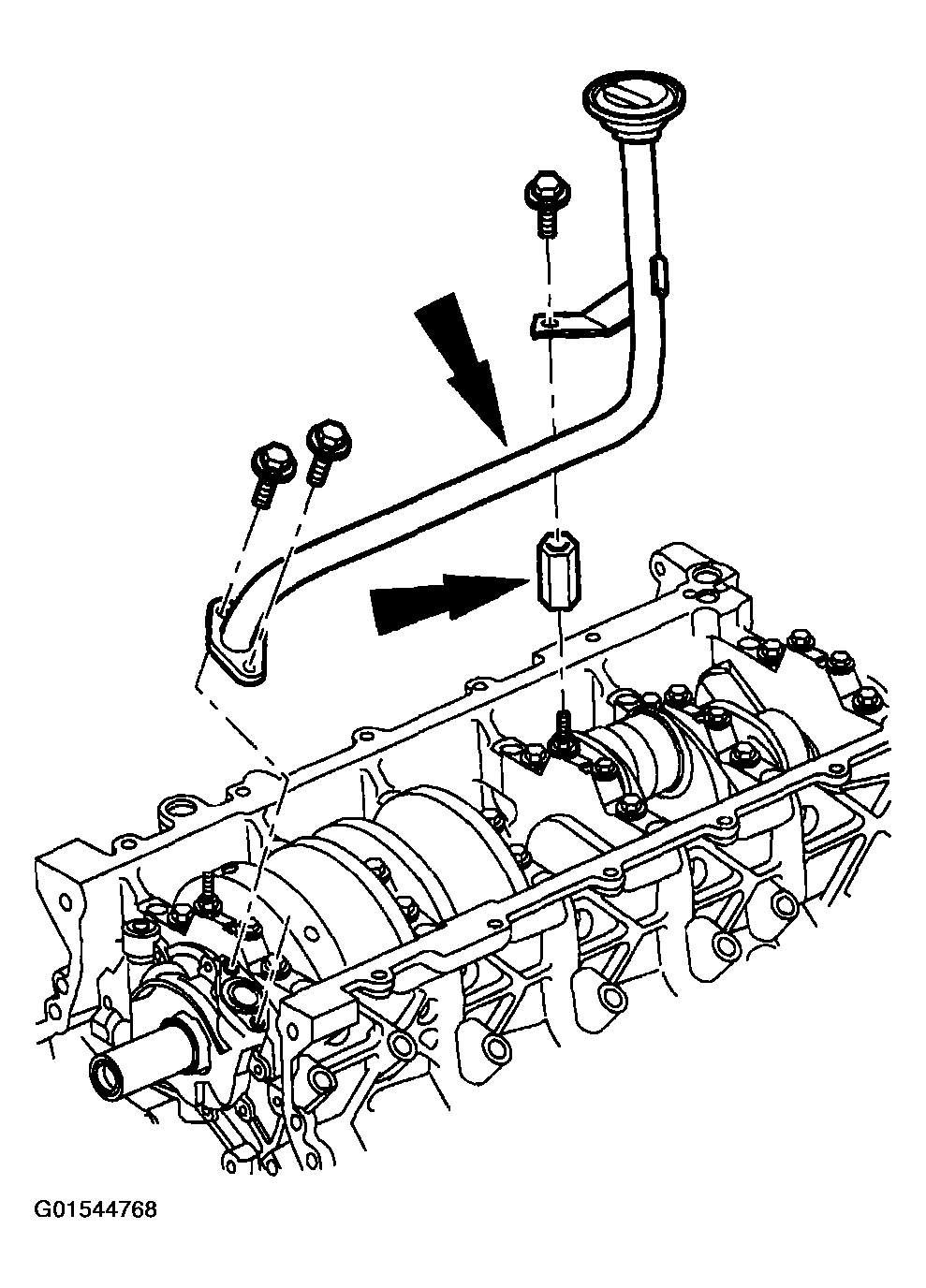

    Fig 26: Removing Bolts Retaining Oil Pump Screen Cover And Pickup Tube
    G01544768Courtesy of FORD MOTOR CO.
  41. Remove the oil pan and the oil pan gasket from the rear of the engine.
    42. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of sealant.
  42. Clean the mating surfaces and thoroughly clean the oil pan.
