In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
    2. NOTE: It is not necessary to remove the transmission from the jack.
  2. Remove the transmission. Refer to REMOVAL & INSTALLATION .
  3. Remove the bolts and the flexplate.

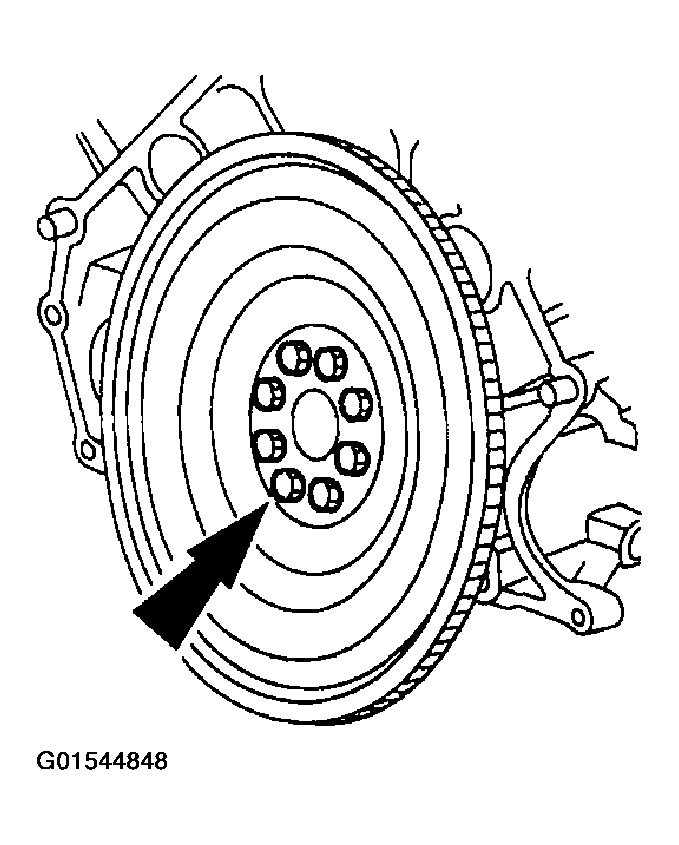

    Fig 1: Removing Bolts And Flexplate
    G01544848Courtesy of FORD MOTOR CO.
