Exhaust Manifold - LH: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
    Fig 1: Installing Right Front Inner Fender Well
    G01544693Courtesy of FORD MOTOR CO.
    Fig 2: Installing Nuts
    G01544694Courtesy of FORD MOTOR CO.

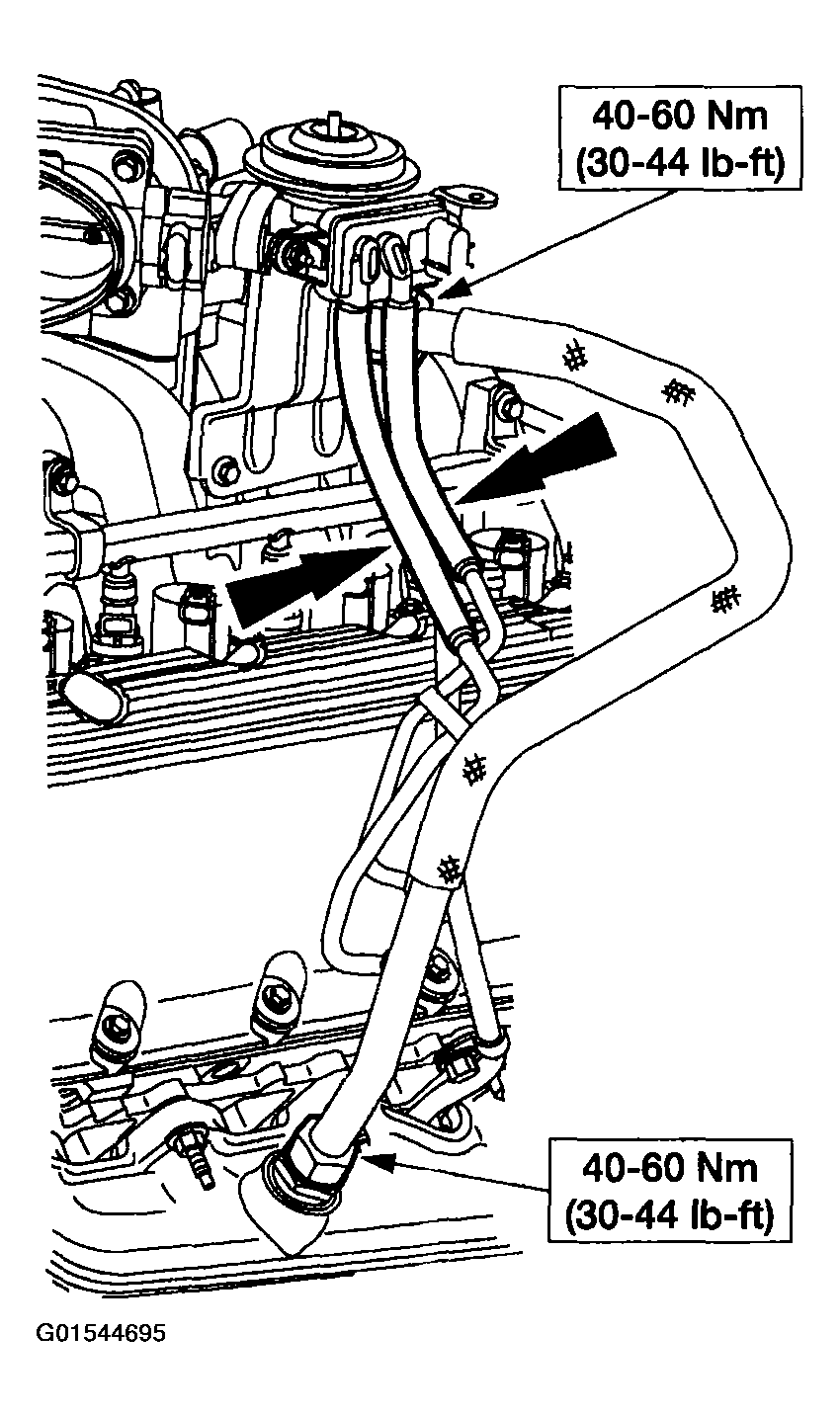

    Fig 3: Connecting EGR-To-Exhaust Manifold Tube Lower Fitting
    G01544695Courtesy of FORD MOTOR CO.
