Crankshaft Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
    2. NOTE: It is not necessary to remove the transmission from the jack.
  2. Remove the flexplate. Refer to Flexplate .
  3. Using the special tools, remove the crankshaft oil slinger (6310).
    Fig 1: Removing Crankshaft Oil Slinger Using Special Tools
    G01544852Courtesy of FORD MOTOR CO.
  4. Using the special tools, remove the crankshaft rear oil seal.

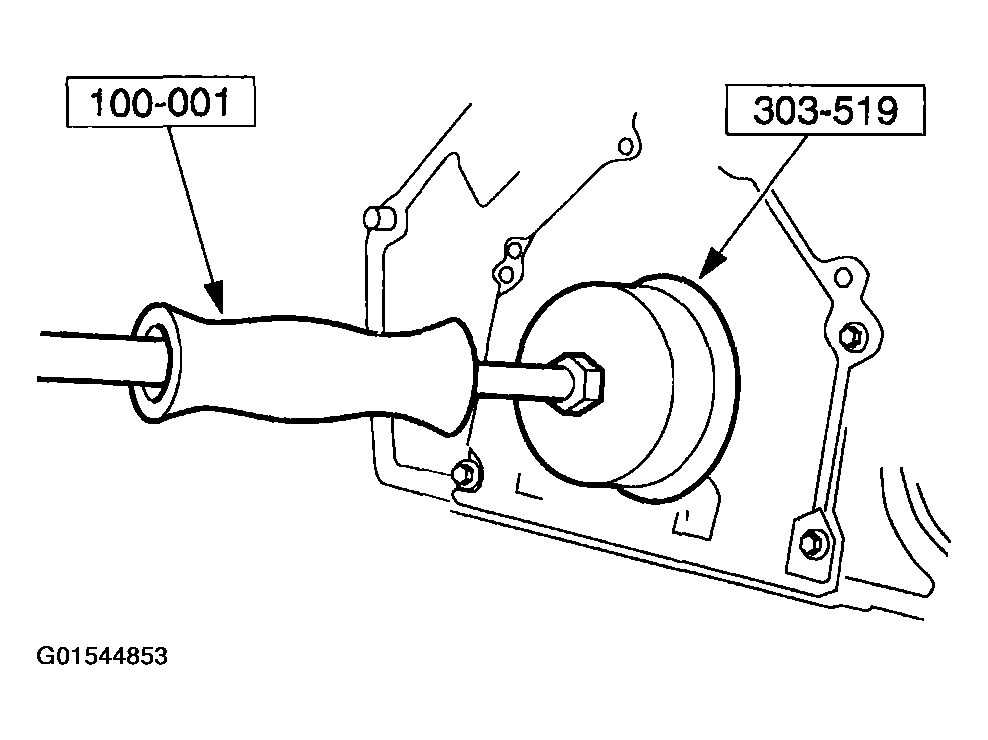

    Fig 2: Removing Crankshaft Rear Oil Seal Using Special Tools
    G01544853Courtesy of FORD MOTOR CO.
