Crankshaft Rear Oil Seal - With Retainer Plate: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the flexplate. Refer to Flexplate .
  3. Using the special tools, remove the crankshaft rear oil slinger.
    Fig 1: Removing Crankshaft Rear Oil Slinger Using Special Tools
    G01544857Courtesy of FORD MOTOR CO.
  4. Using the special tools, remove the crankshaft rear oil seal.

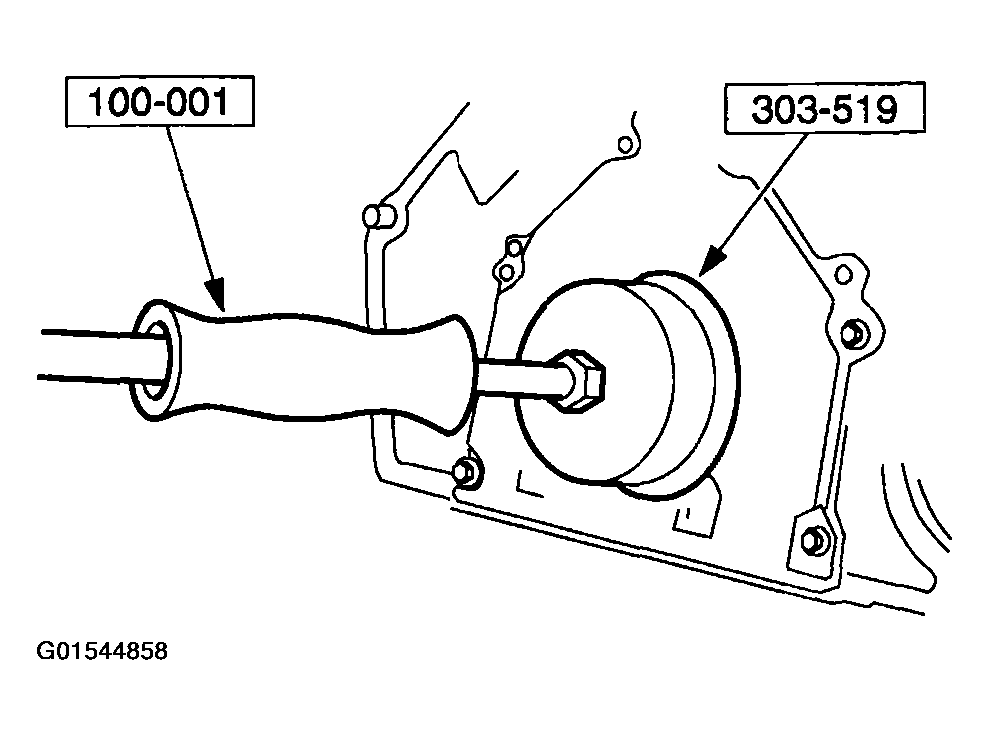

    Fig 2: Removing Crankshaft Rear Oil Seal Using Special Tools
    G01544858Courtesy of FORD MOTOR CO.
  5. Remove the oil pan. Refer to OIL PAN - Automatic Transmission  or OIL PAN - Manual Transmission .
  6. Remove the crankcase bolts and the crankshaft rear oil seal retainer plate.

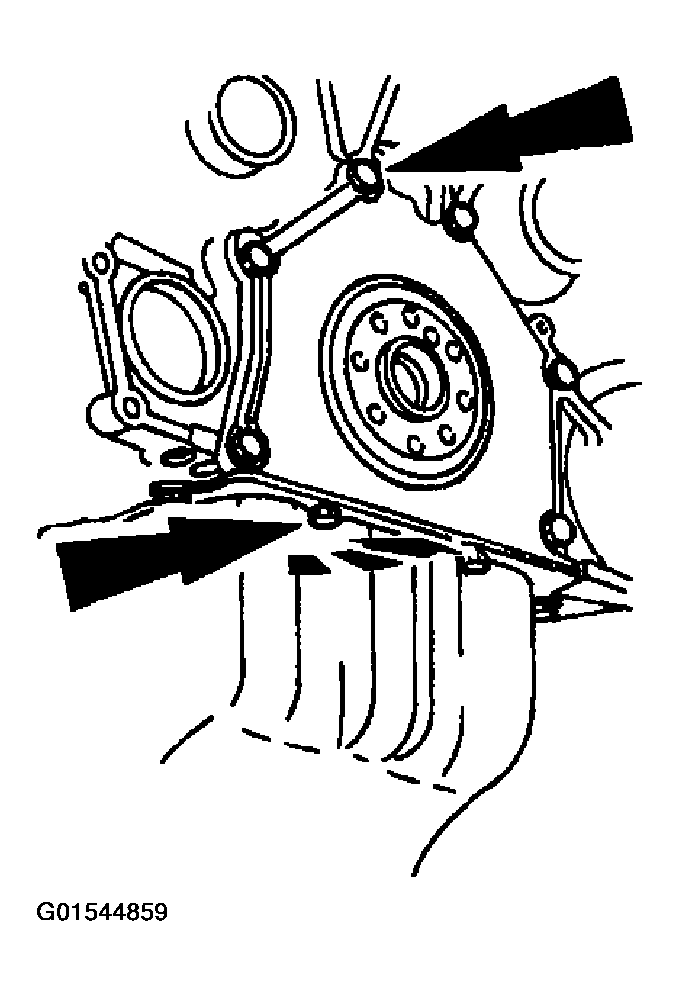

    Fig 3: Removing Crankcase Bolts And Crankshaft Rear Oil Seal Retainer Plate
    G01544859Courtesy of FORD MOTOR CO.
