Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan and fan shroud (8146). Refer to ENGINE COOLING .
  2. Remove the drive belt (8620). Refer to ACCESSORY DRIVE .
  3. Raise the vehicle on a hoist.
  4. Remove the crankshaft pulley bolt (6A340).
  5. Using the special tool, remove the crankshaft pulley (6312).

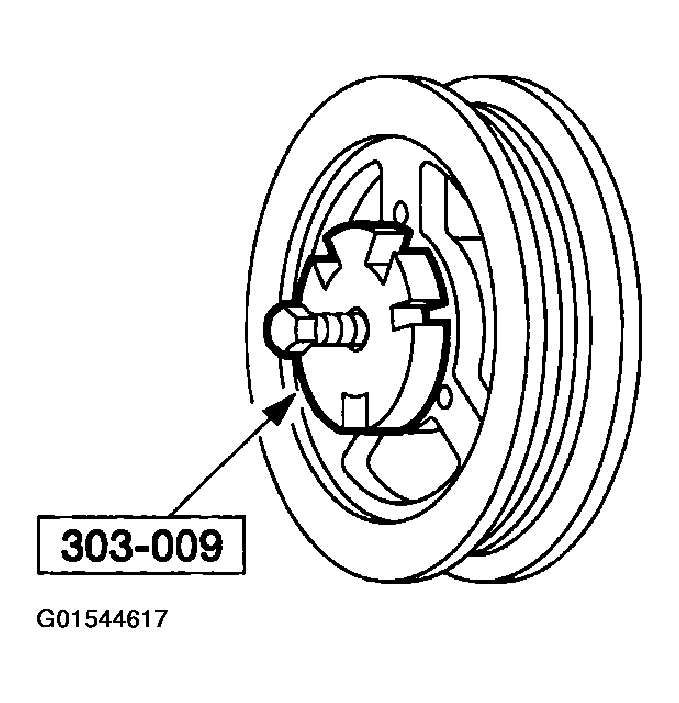

    Fig 1: Removing Crankshaft Pulley Using Special Tool
    G01544617Courtesy of FORD MOTOR CO.
