Crankshaft Front Oil Seal: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. Refer to Crankshaft Pulley .
  2. Using the special tool, remove the crankshaft front oil seal.

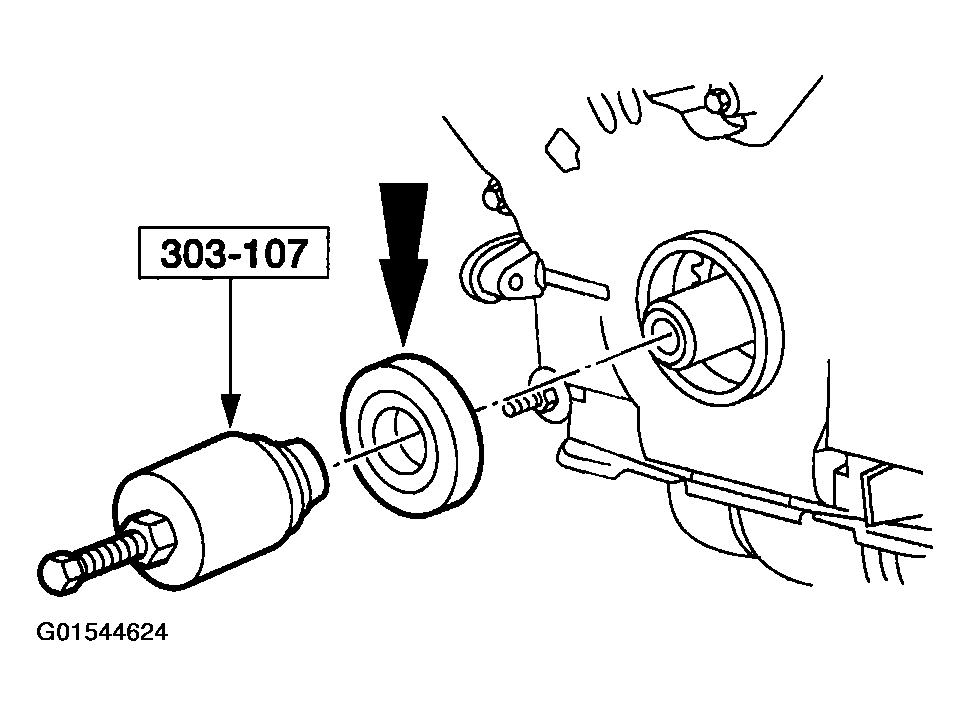

    Fig 1: Removing Crankshaft Front Oil Seal Using Special Tool
    G01544624Courtesy of FORD MOTOR CO.
