Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the engine front cover and the crankshaft front oil seal inner lip with clean engine oil.
    Fig 1: Removing Crankshaft Front Oil Seal
    G01544625Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft front oil seal into the engine front cover.

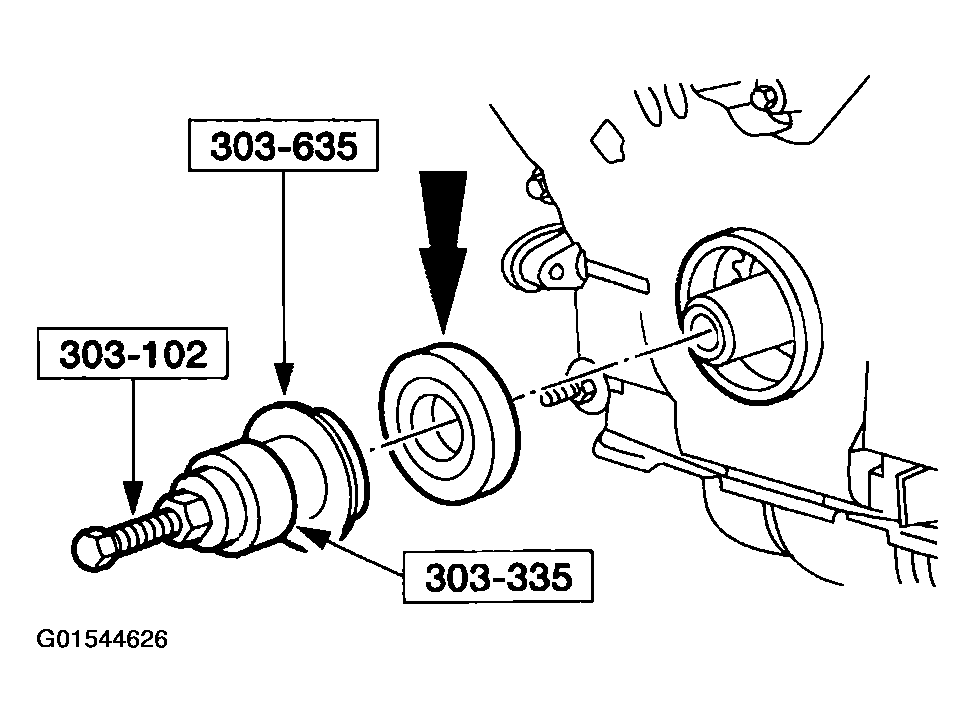

    Fig 2: Installing Crankshaft Front Oil Seal Into Engine Front Cover Using Special Tools
    G01544626Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. Refer to Crankshaft Pulley .
