Valve Seals: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The valve stem seal must be bottomed on the valve seat.

NOTE: Make sure that the garter spring is present in the valve stem seal.

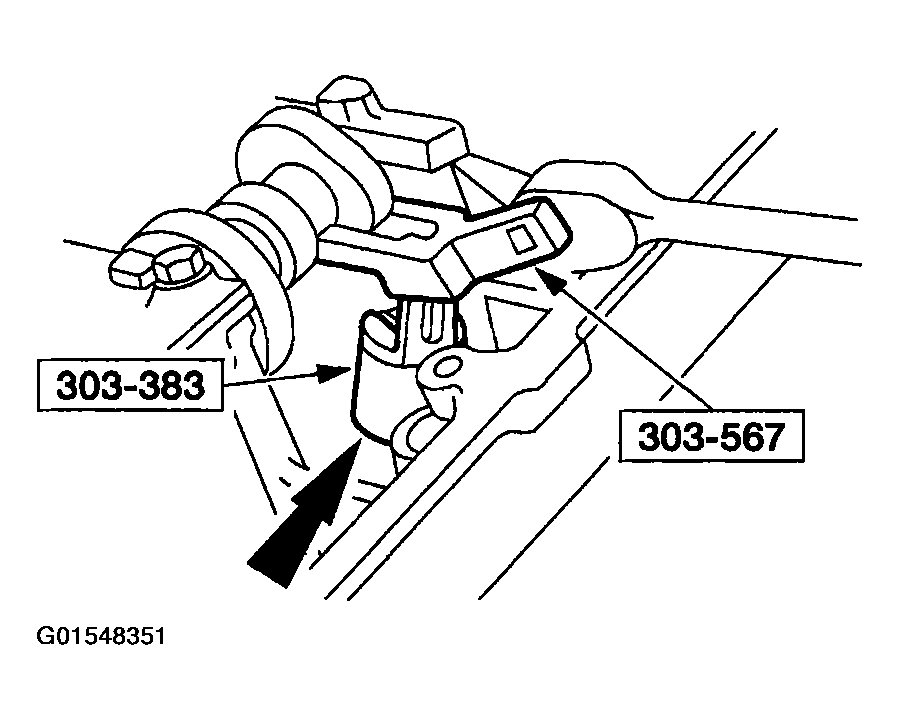

Fig 1: Installing Valve Stem Seals Using Special Tool

Courtesy of FORD MOTOR CO.

Use the special tools to install the valve stem seals.
Install the valve springs. Refer to Valve Springs .
