Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chains and the LH timing chain guide. Refer to Timing Drive Components .
  2. Remove the oil pan (6675). Refer to OIL PAN - Automatic Transmission  or OIL PAN - Manual Transmission .
  3. Remove the oil pump (6600).
    • Remove the three bolts.
    • Remove the oil pump.

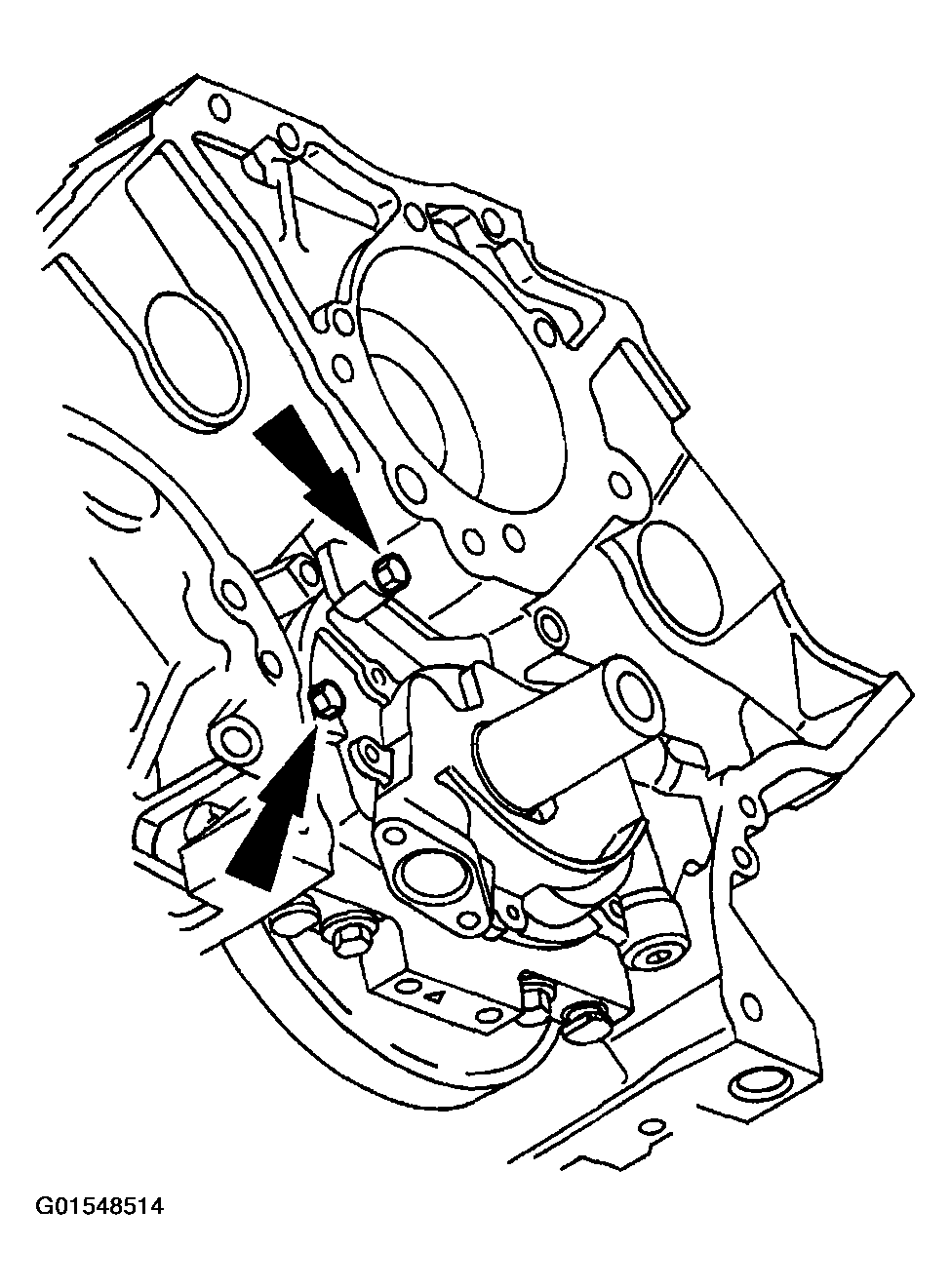

    Fig 1: Removing Oil Pump
    G01548514Courtesy of FORD MOTOR CO.
