Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH exhaust manifold. Refer to Exhaust Manifold LH .
Remove the oil level indicator.
Remove the bolt.

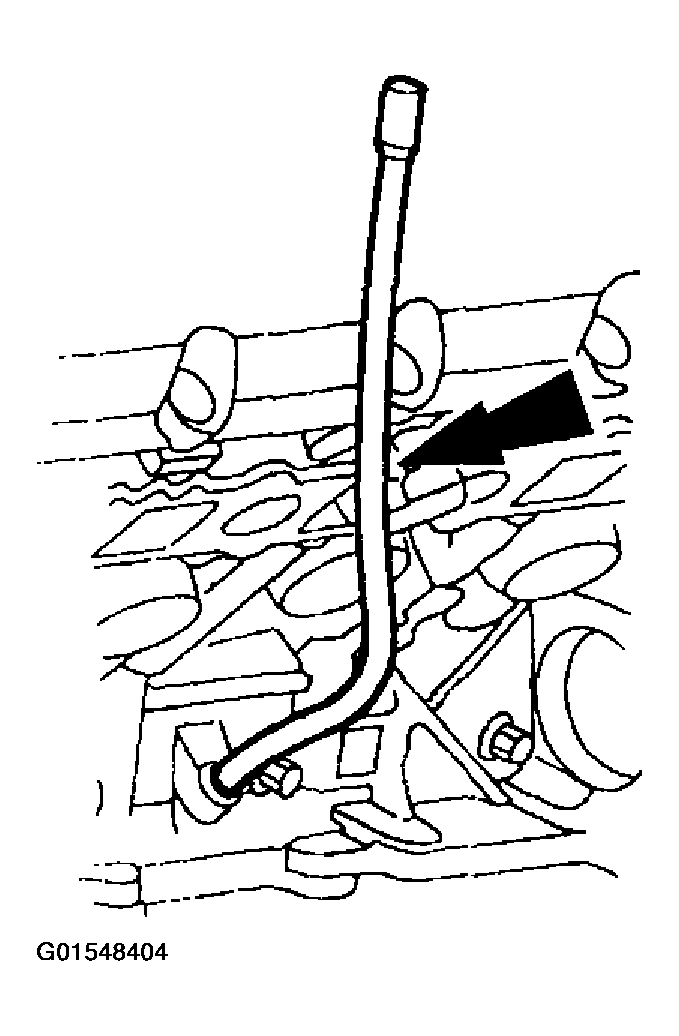

Fig 1: Removing Oil Level Indicator Bolt
Courtesy of FORD MOTOR CO.
Remove the oil level indicator tube.

Fig 2: Removing Oil Level Indicator Tube
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the new O-ring seal with clean engine oil.

Fig 3: Installing O-Ring Seal

Courtesy of FORD MOTOR CO.

Install a new O-ring seal.
To install, reverse the removal procedure.
