Oil Cooler: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Position the oil cooler and install the oil cooler insert.

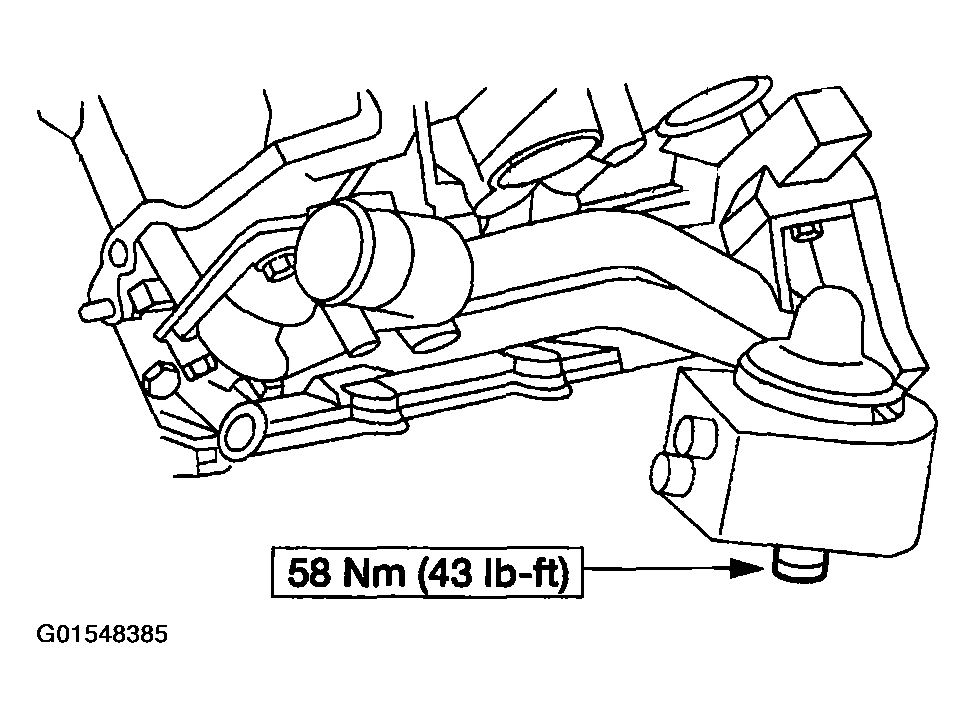

Fig 1: Installing Oil Cooler Insert
Courtesy of FORD MOTOR CO.
Position the coolant hoses and slide the hose clamps back.

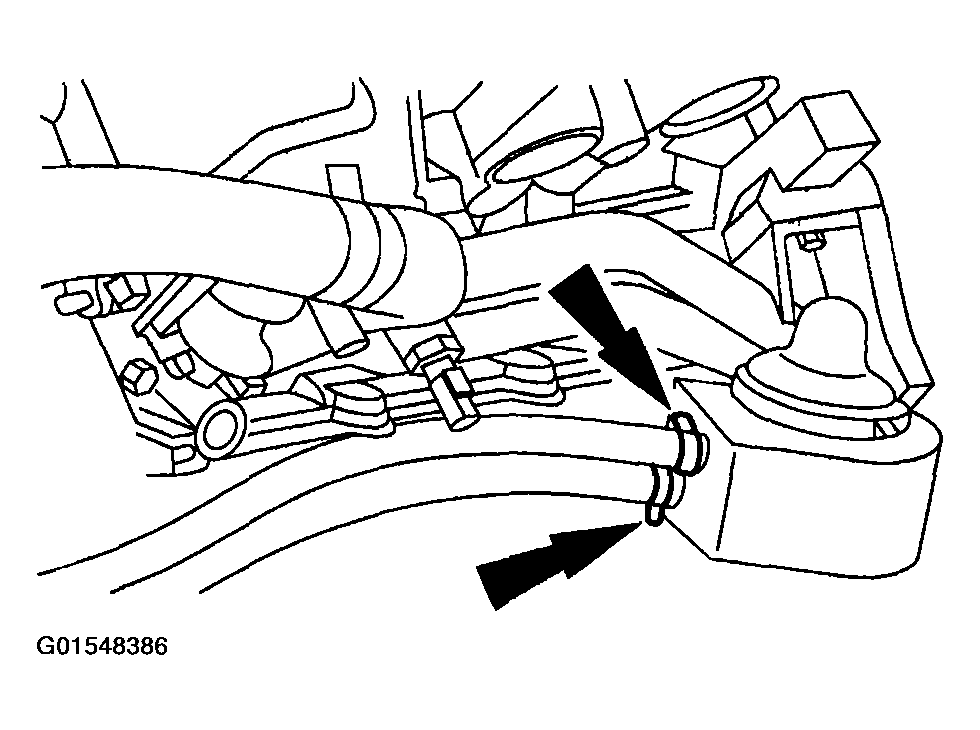

Fig 2: Positioning Coolant Hoses And Slide Hose Clamps Back
Courtesy of FORD MOTOR CO.
Install the oil filter.

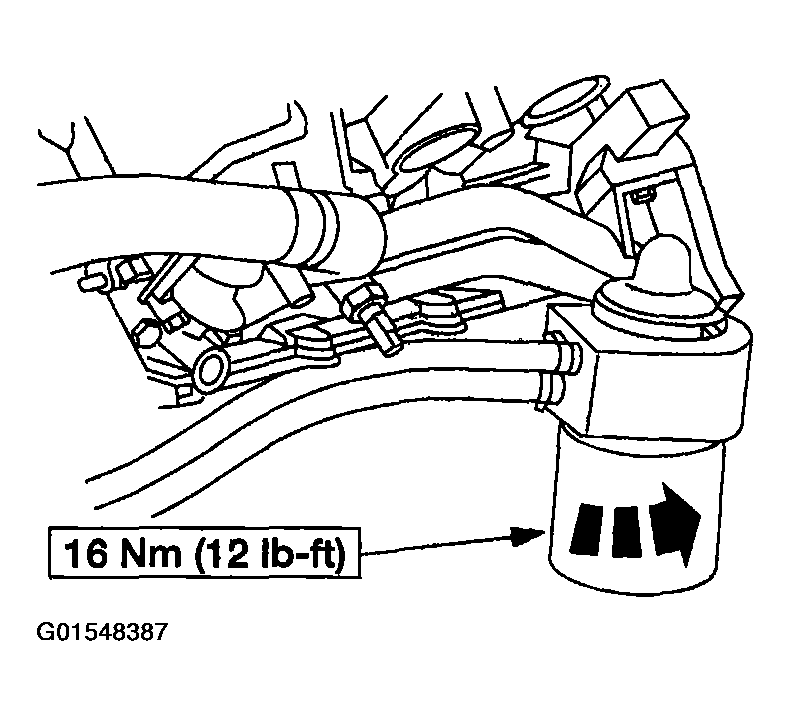

Fig 3: Installing Oil Filter
Courtesy of FORD MOTOR CO.
Install the drain plug.

Fig 4: Installing Drain Plug
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Fill the engine with clean engine oil.
Fill the engine coolant. Refer to ENGINE COOLING .
