Hydraulic Lash Adjuster: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft roller followers. Refer to Camshaft Roller Follower .
    2. NOTE: The valve tappets are positional. Mark each valve tappet for installation in its original location.

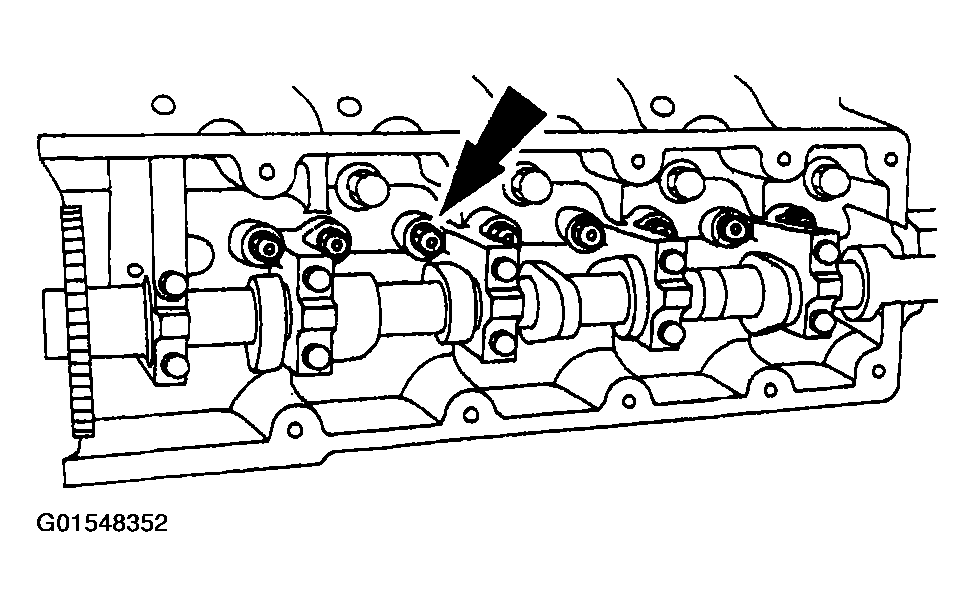

    Fig 1: Removing Valve Tappets
    G01548352Courtesy of FORD MOTOR CO.
  2. Remove the valve tappets (6500).
