Hydraulic Lash Adjuster: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve tappets in their original locations.

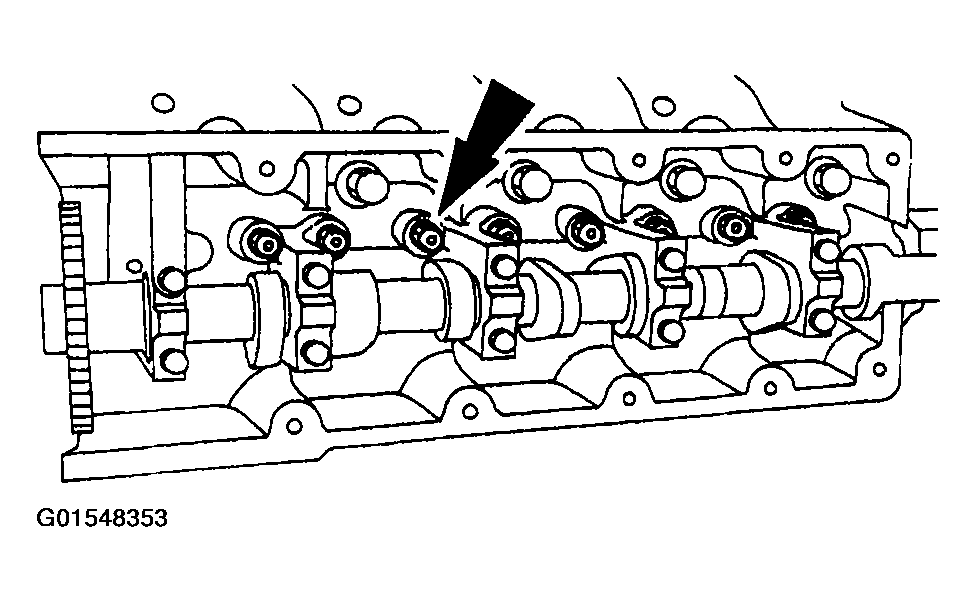

    Fig 1: Installing Valve Tappets Original Locations
    G01548353Courtesy of FORD MOTOR CO.
  2. Install the camshaft roller followers. Refer to Camshaft Roller Follower .
