Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

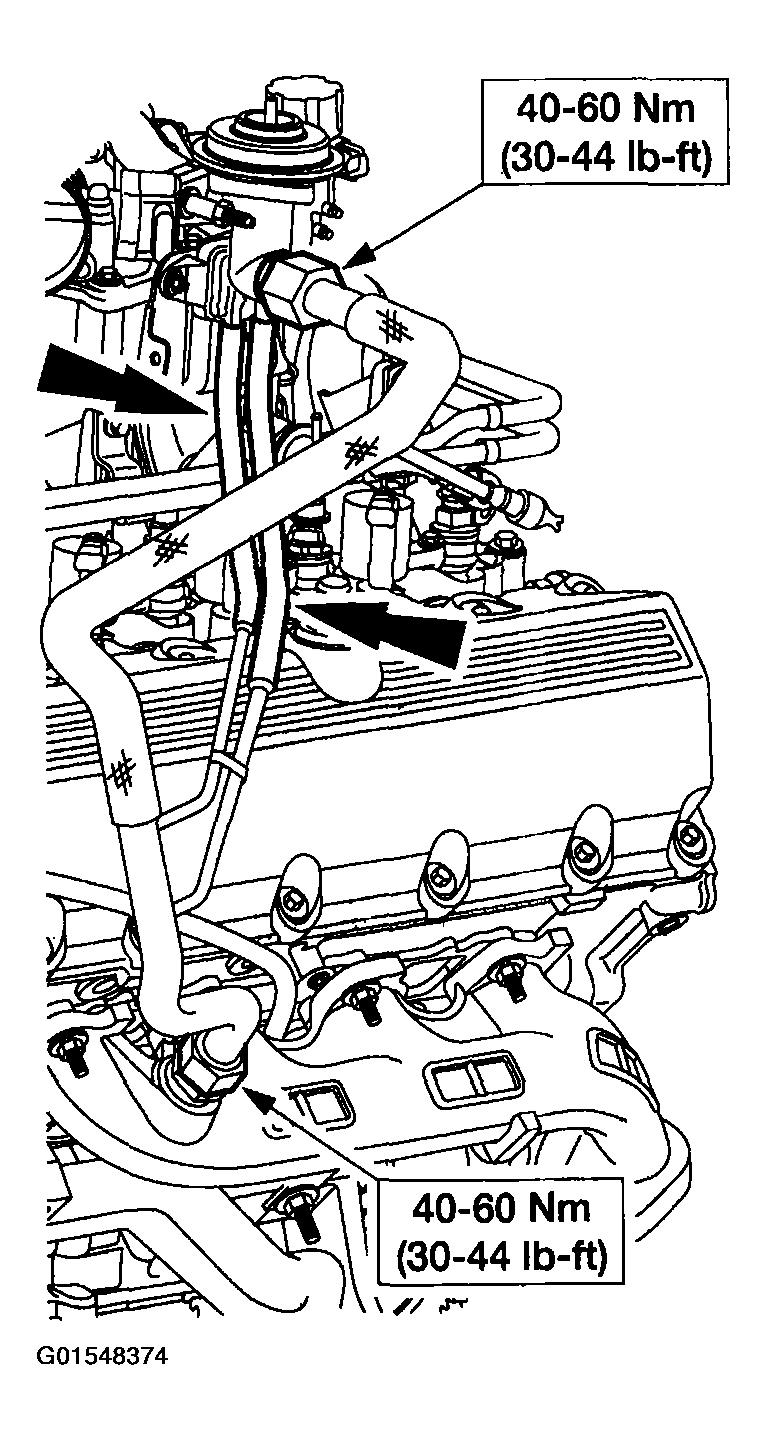

Fig 1: Removing Exhaust Gas Recirculation (EGR) Valve Tube

Courtesy of FORD MOTOR CO.

If equipped, remove the exhaust manifold to exhaust gas recirculation (EGR) valve tube. Refer to EXHAUST SYSTEM .

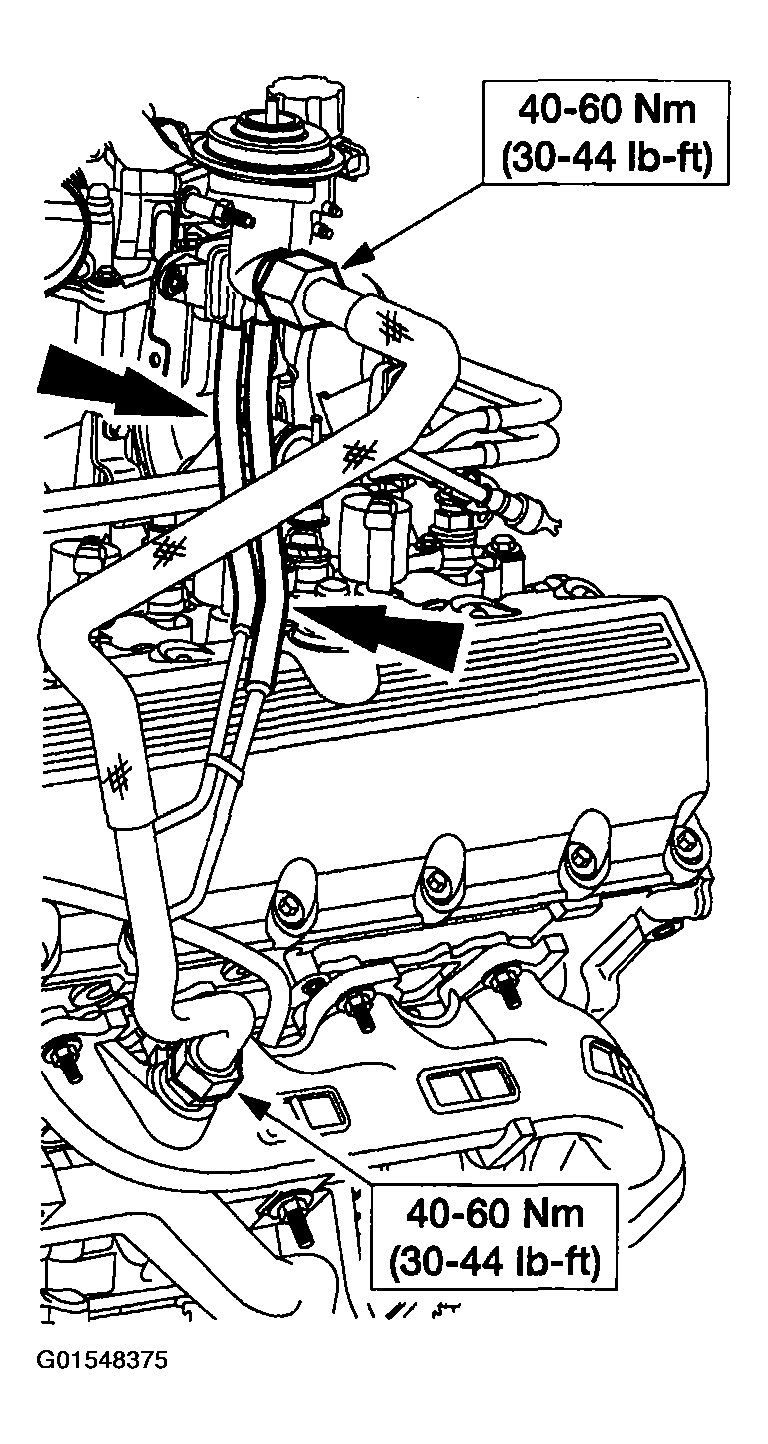

Fig 2: Removing Exhaust Manifold To Exhaust Gas Recirculation (EGR) Valve Tube
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
On 4x4 vehicles, remove the front wheel opening moulding. Refer to FRONT END BODY PANELS .
Remove the front fender splash shield (16103).
Remove the nuts.

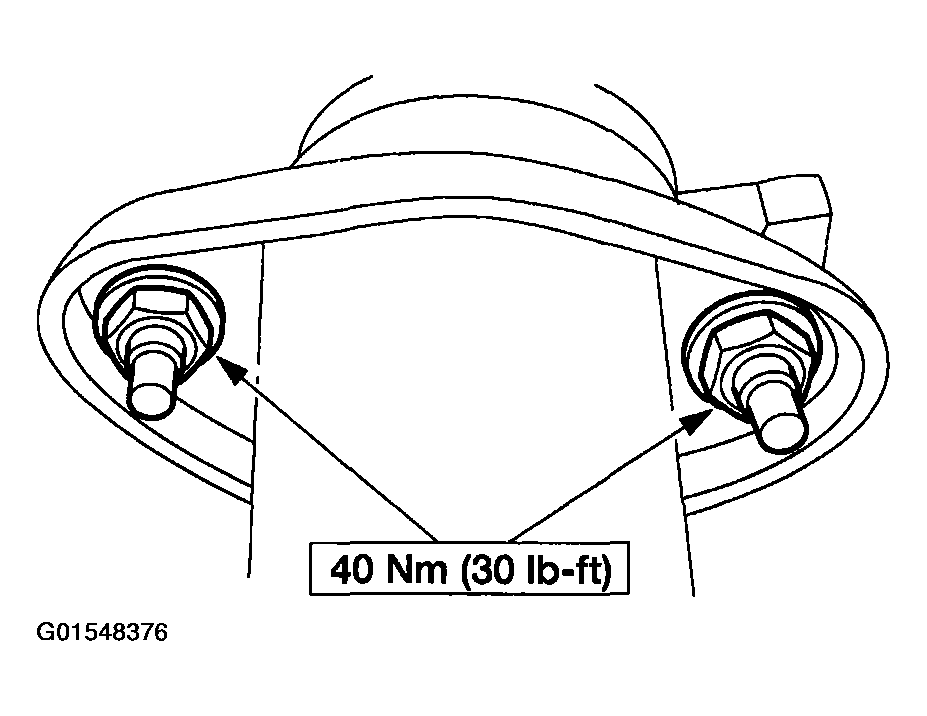

Fig 3: Removing Nuts
Courtesy of FORD MOTOR CO.
Remove the nuts and the exhaust manifold (9430).

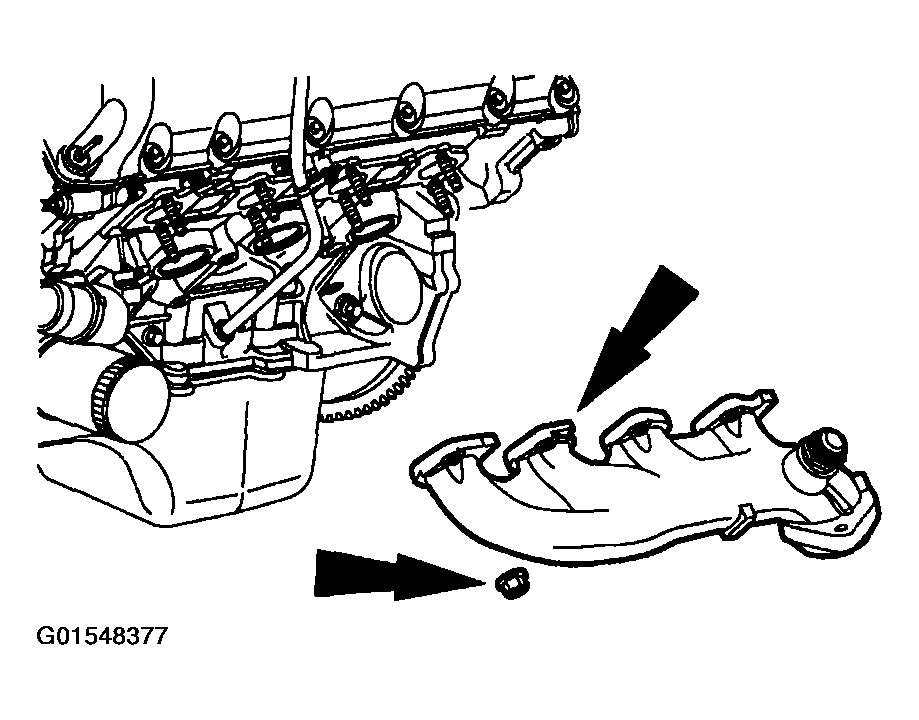

Fig 4: Removing Nuts And Exhaust Manifold
Courtesy of FORD MOTOR CO.
Remove the exhaust manifold gasket (9448).

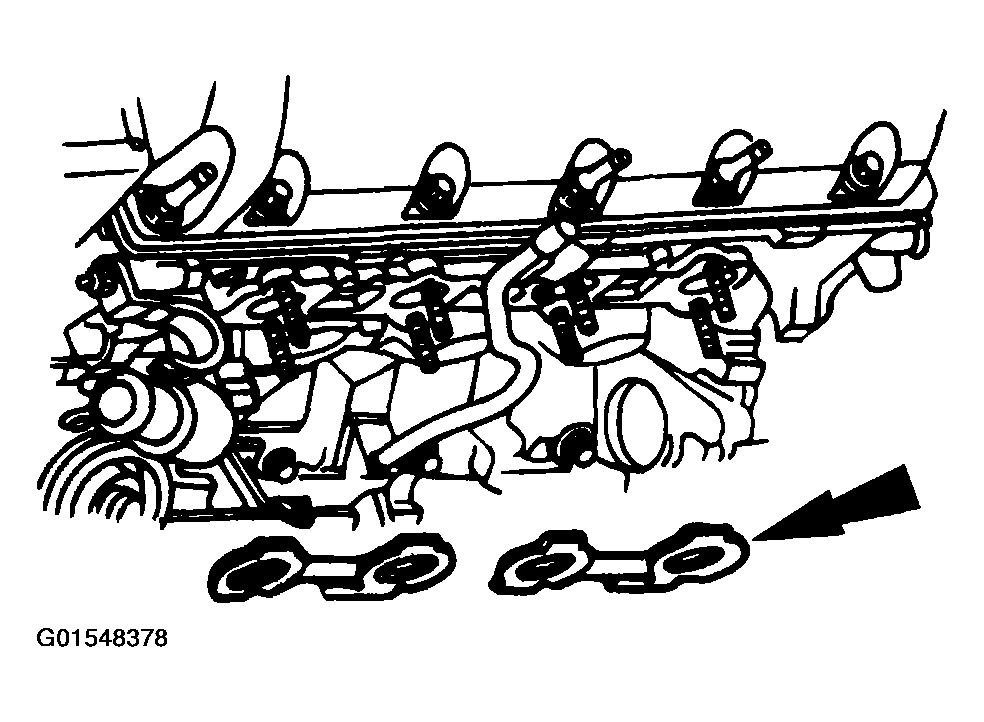

Fig 5: Removing Exhaust Manifold Gasket
Courtesy of FORD MOTOR CO.
Clean and inspect the exhaust manifold. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
To install, reverse the removal procedure.
- Tighten the exhaust manifold nuts in the sequence shown.
Fig 6: Tightening Exhaust Manifold Nuts In Sequence
Courtesy of FORD MOTOR CO.
