Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the aluminum retainer plate. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
  1. Clean and inspect the mating surface.
    2. NOTE: Lubricate the inner lip of the crankshaft rear oil seal with clean engine oil.

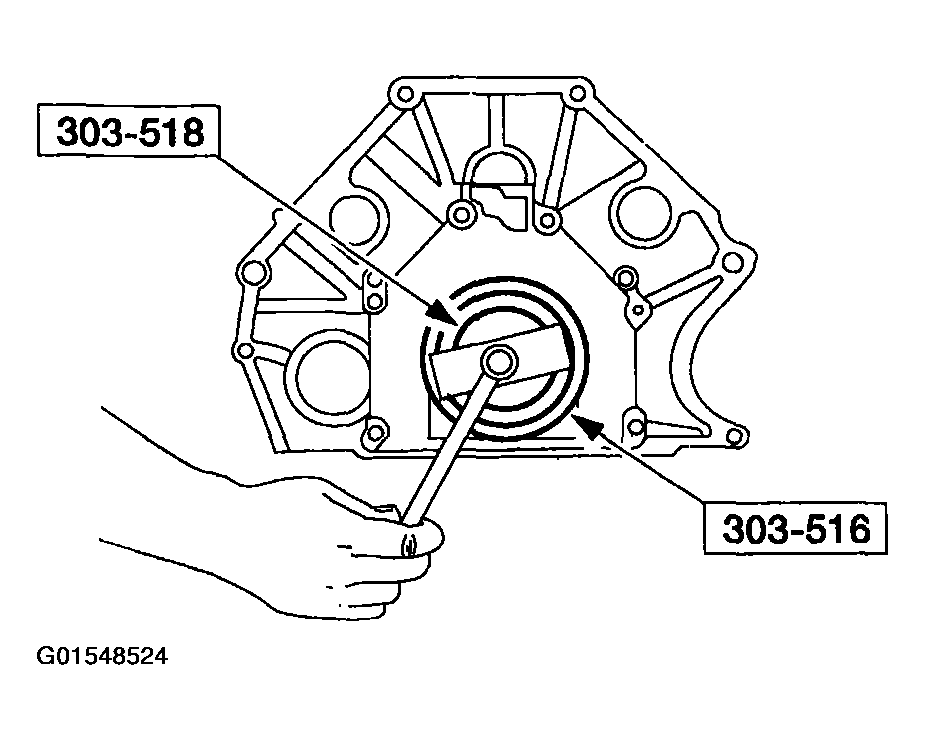

    Fig 1: Installing Crankshaft Rear Oil Seal Using Special Tool
    G01548524Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft rear oil seal.
  3. Using the special tools, install the crankshaft rear oil slinger.

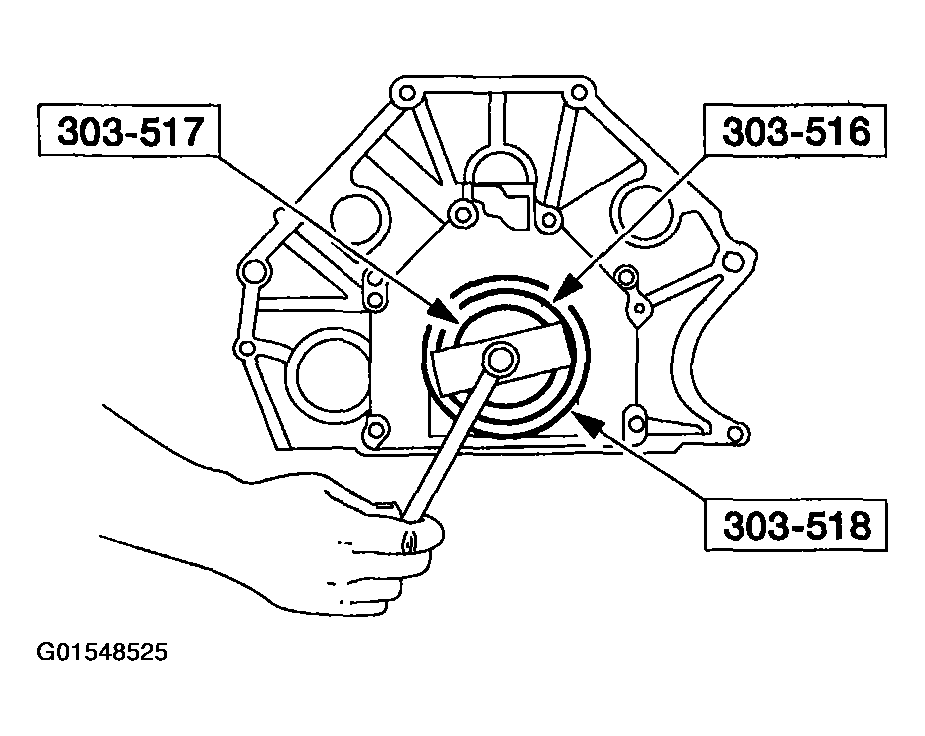

    Fig 2: Installing Crankshaft Rear Oil Slinger Using Special Tool
    G01548525Courtesy of FORD MOTOR CO.
  4. Install the flexplate. Refer to FLEXPLATE - Automatic Transmission  or FLYWHEEL - Manual Transmission .
  5. Connect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
