Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to OIL PAN - Automatic Transmission  or OIL PAN - Manual Transmission .
  2. Remove the flexplate. Refer to FLEXPLATE - Automatic Transmission  or FLYWHEEL - Manual Transmission .
  3. Using the special tools, remove the crankshaft rear oil seal slinger.
    Fig 1: Removing Crankshaft Rear Oil Seal Slinger Using Special Tool
    G01548528Courtesy of FORD MOTOR CO.
  4. Using the special tools, remove the crankshaft rear oil seal.

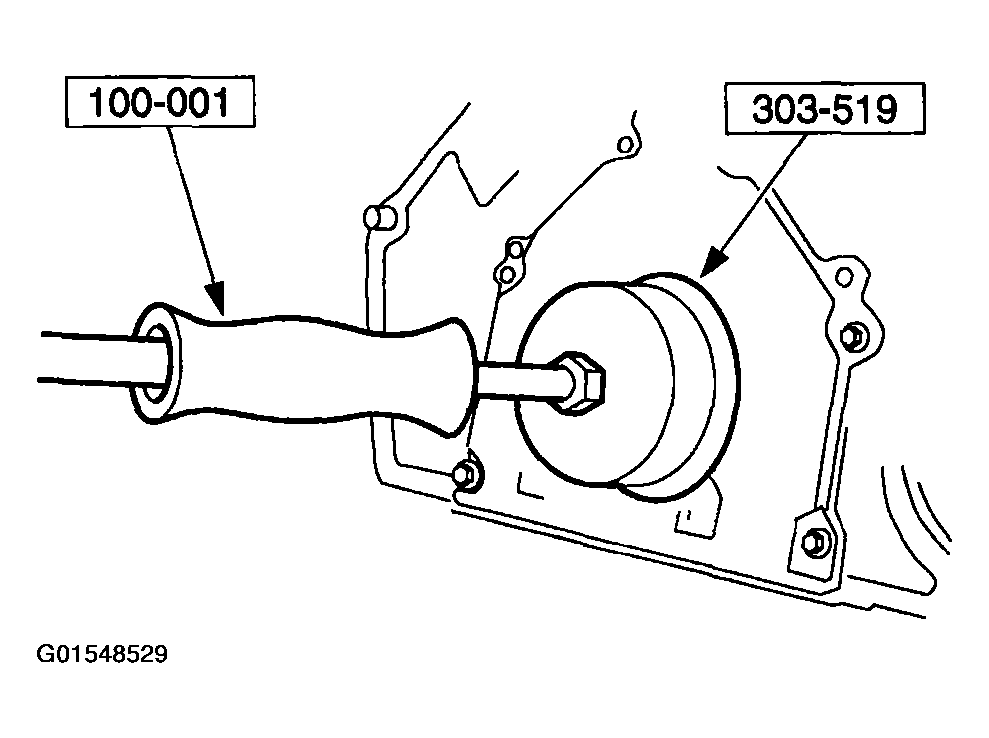

    Fig 2: Removing Crankshaft Rear Oil Seal Using Special Tool
    G01548529Courtesy of FORD MOTOR CO.
  5. Remove the six bolts and the crankcase rear oil seal retainer.

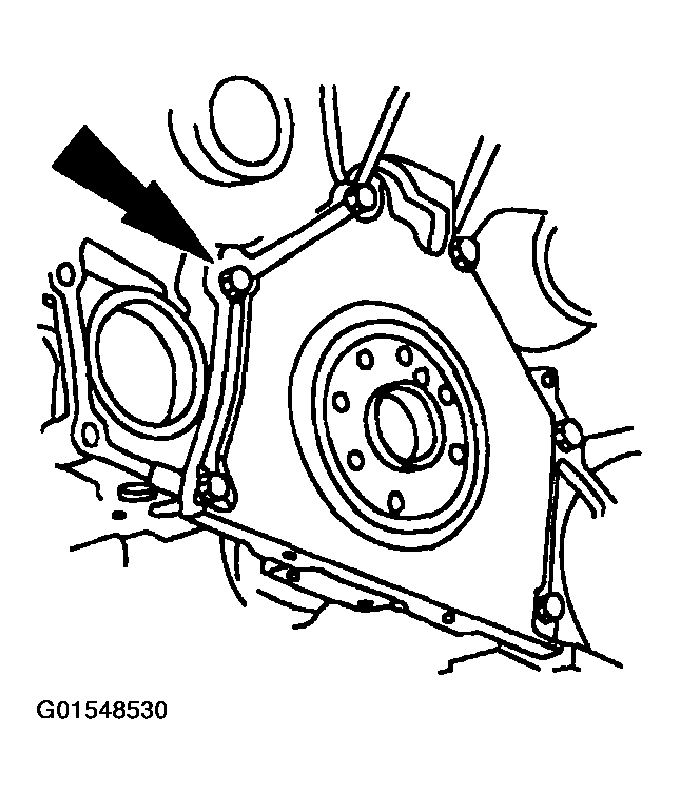

    Fig 3: Removing Bolts And Crankcase Rear Oil Seal Retainer
    G01548530Courtesy of FORD MOTOR CO.
