Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan and fan shroud. Refer to ENGINE COOLING .
  2. Remove the drive belt. Refer to ACCESSORY DRIVE .
  3. Raise and support the vehicle.
  4. Remove and discard the crankshaft pulley bolt.

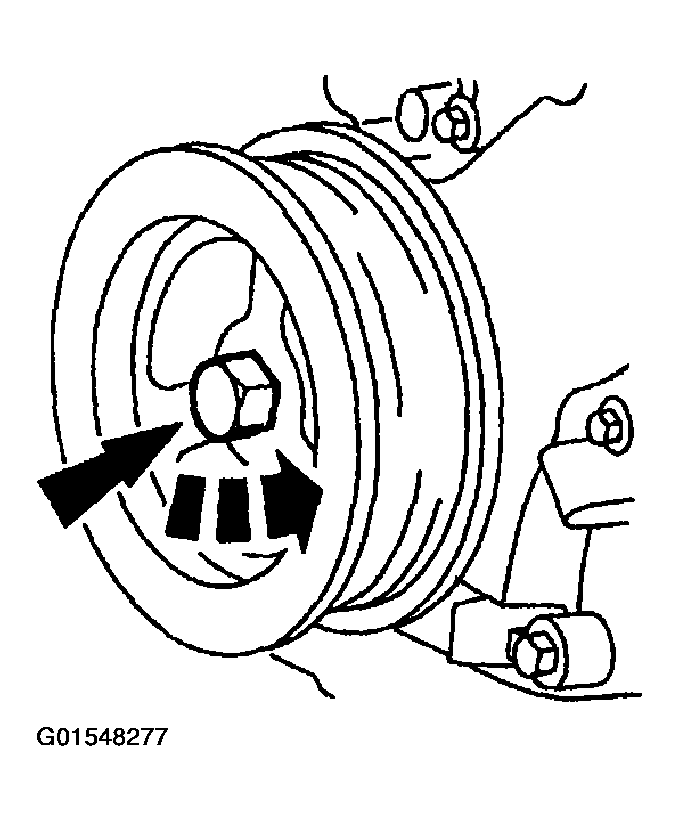

    Fig 1: Removing And Discarding Crankshaft Pulley Bolt
    G01548277Courtesy of FORD MOTOR CO.
  5. Use the special tool to remove the crankshaft pulley.

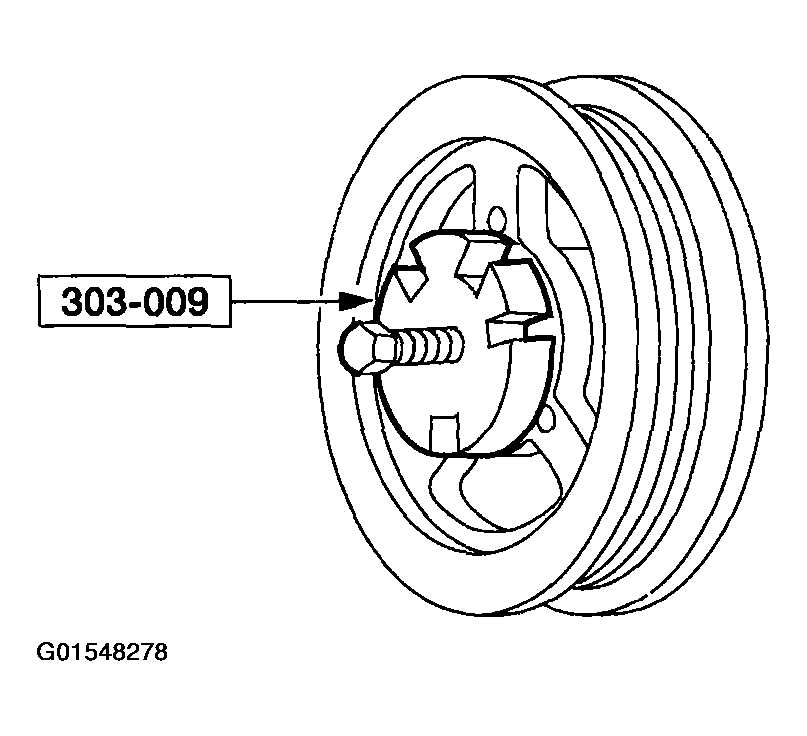

    Fig 2: Removing Crankshaft Pulley Using Special Tool
    G01548278Courtesy of FORD MOTOR CO.
