Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the engine front cover and the crankshaft front oil seal inner lip with clean engine oil.
    Fig 1: Lubricating Engine Front Cover And Crankshaft Front Oil Seal Inner Lip With Clean Engine Oil
    G01548286Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft front oil seal into the engine front cover.

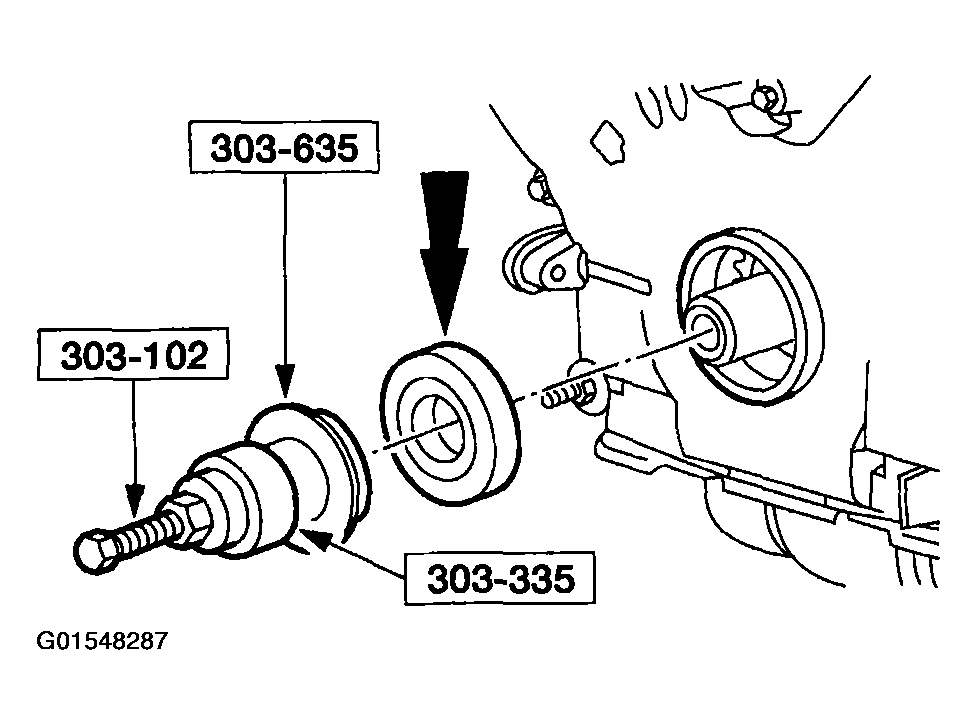

    Fig 2: Installing Crankshaft Front Oil Seal Into Engine Front Cover
    G01548287Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. Refer to Crankshaft Pulley .
