In-Vehicle Repair: Camshaft: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the camshaft journals with clean engine oil.

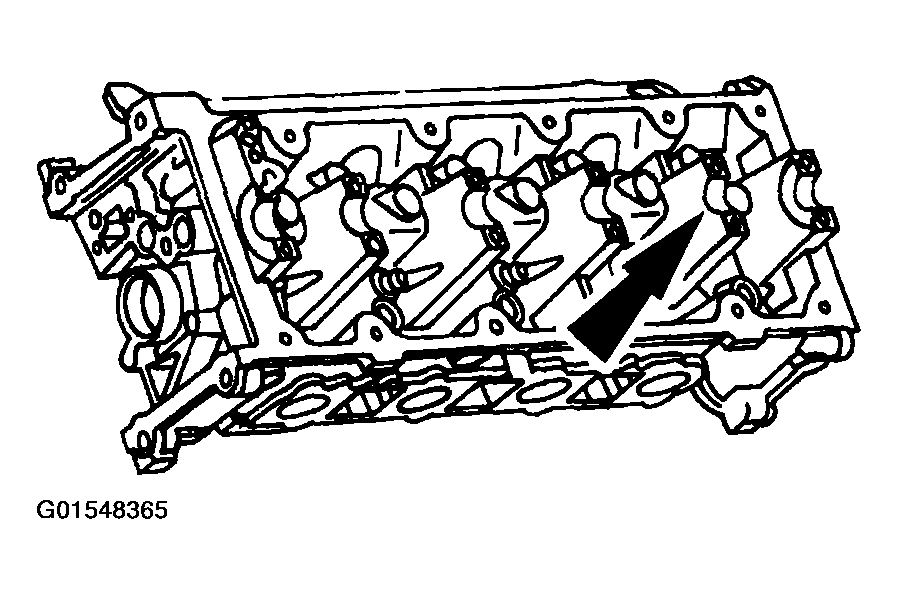

Fig 1: Lubricating Camshaft Journals With Clean Engine Oil
Courtesy of FORD MOTOR CO.
Install the camshaft onto the cylinder head.

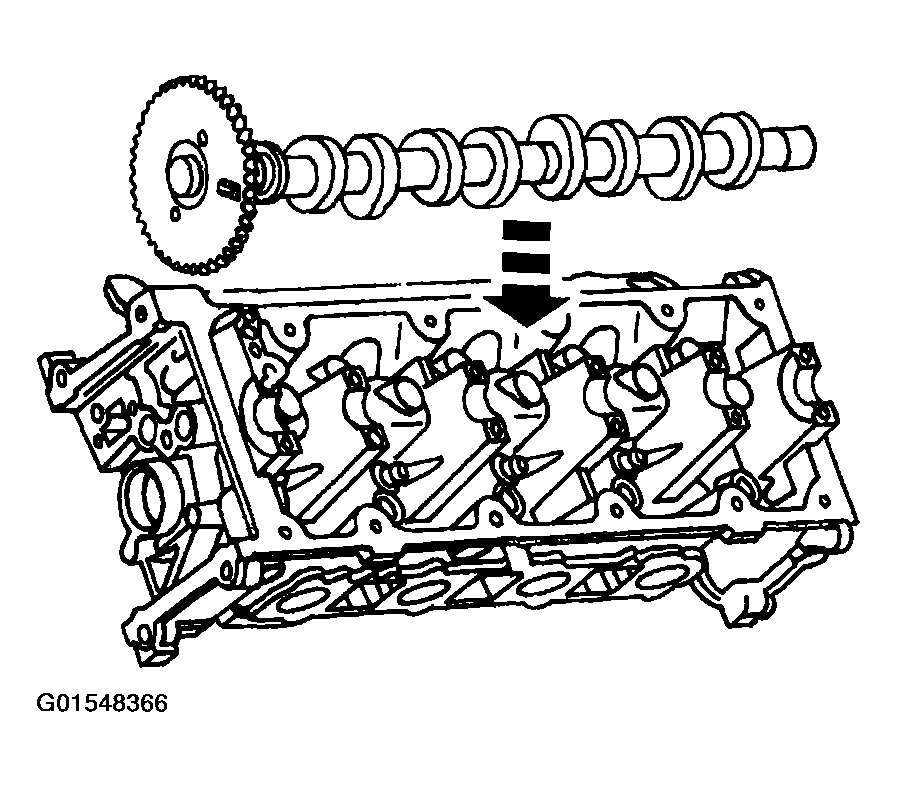

Fig 2: Installing Camshaft Onto Cylinder Head
Courtesy of FORD MOTOR CO.
Lubricate the camshaft bearing caps with clean engine oil.

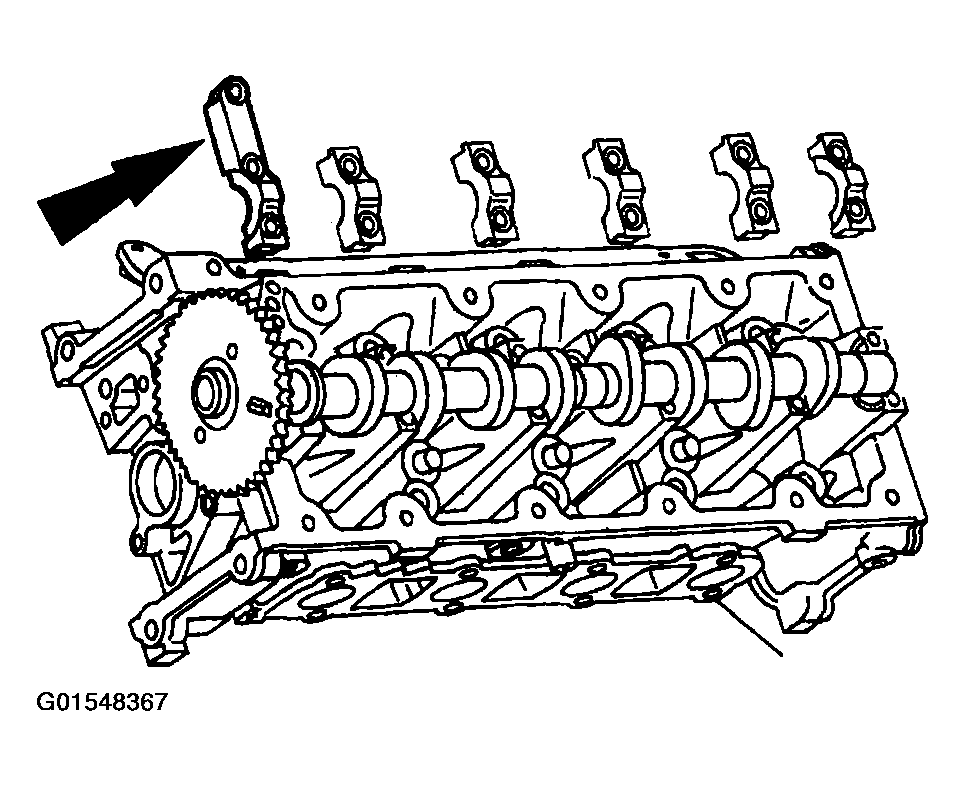

Fig 3: Lubricating Camshaft Bearing Caps With Clean Engine Oil
Courtesy of FORD MOTOR CO.
Install the camshaft bearing caps in their original locations.
1. Position the camshaft bearing caps.
2. Loosely install the bolts.

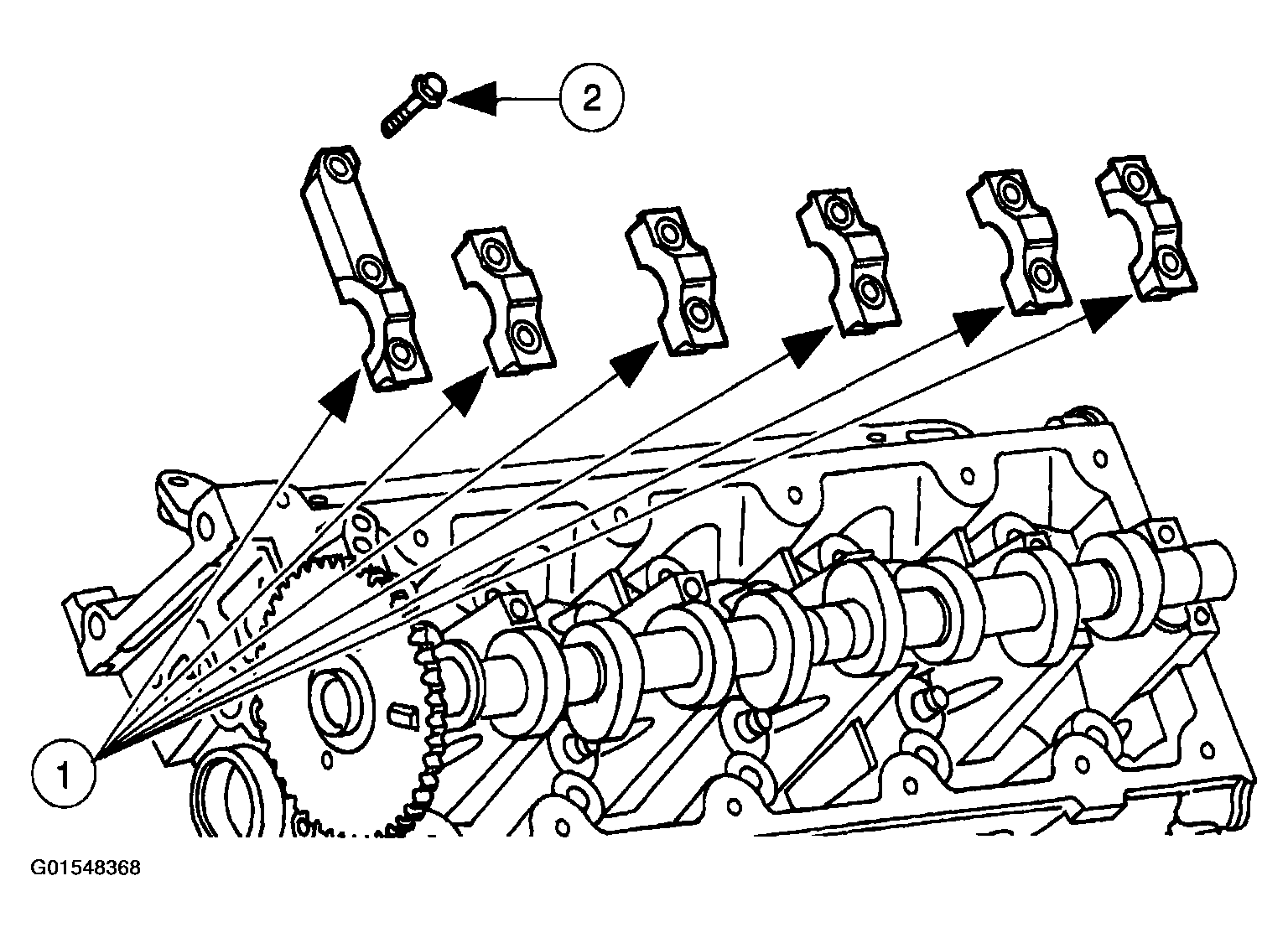

Fig 4: Installing Camshaft Bearing Caps In Original Locations
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown.
Install the timing chains. Refer to Timing Drive Components .
Install the camshaft roller followers. Refer to Camshaft Roller Follower .

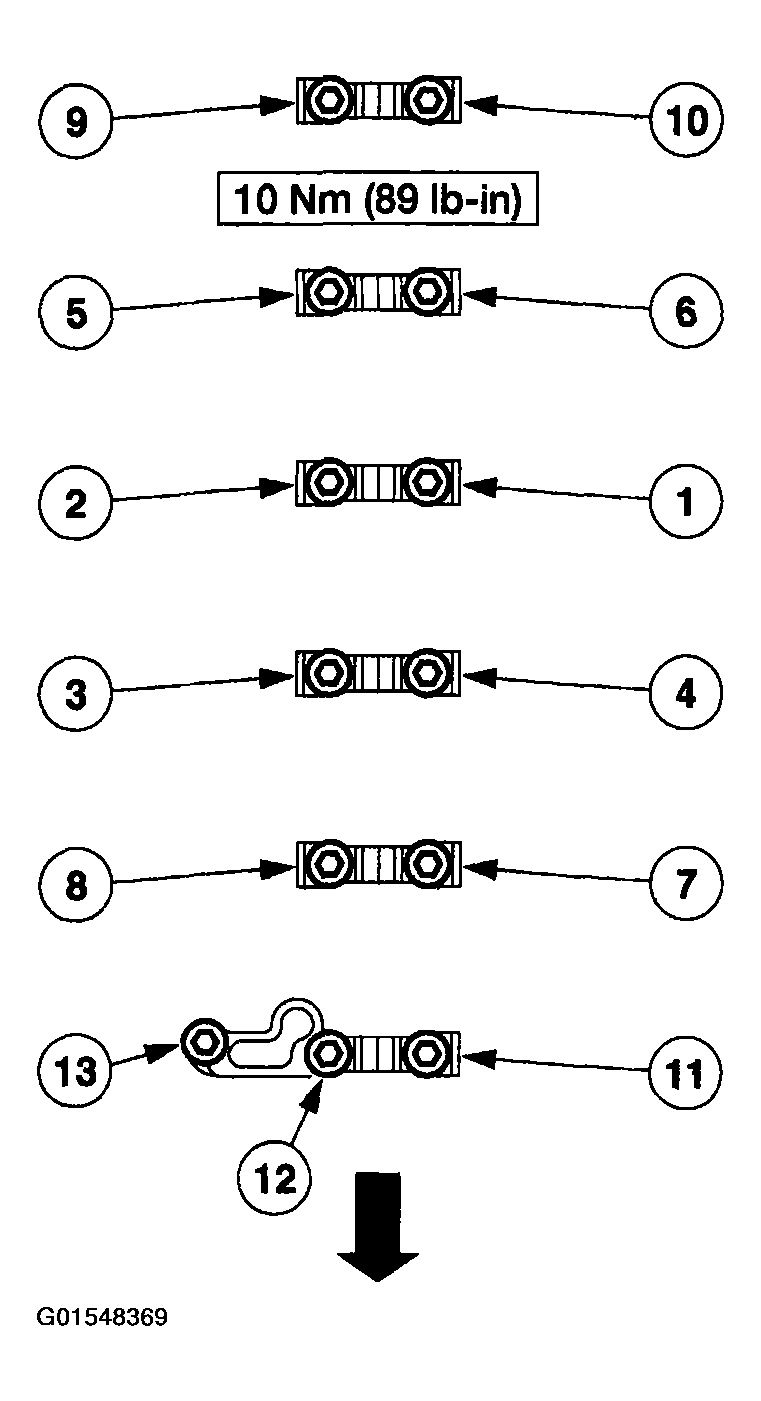

Fig 5: Identifying Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
