Camshaft Roller Follower: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft roller followers.
    1. Install the special tool.
    2. Compress the valve springs.
    3. Install the camshaft roller followers in their original locations.

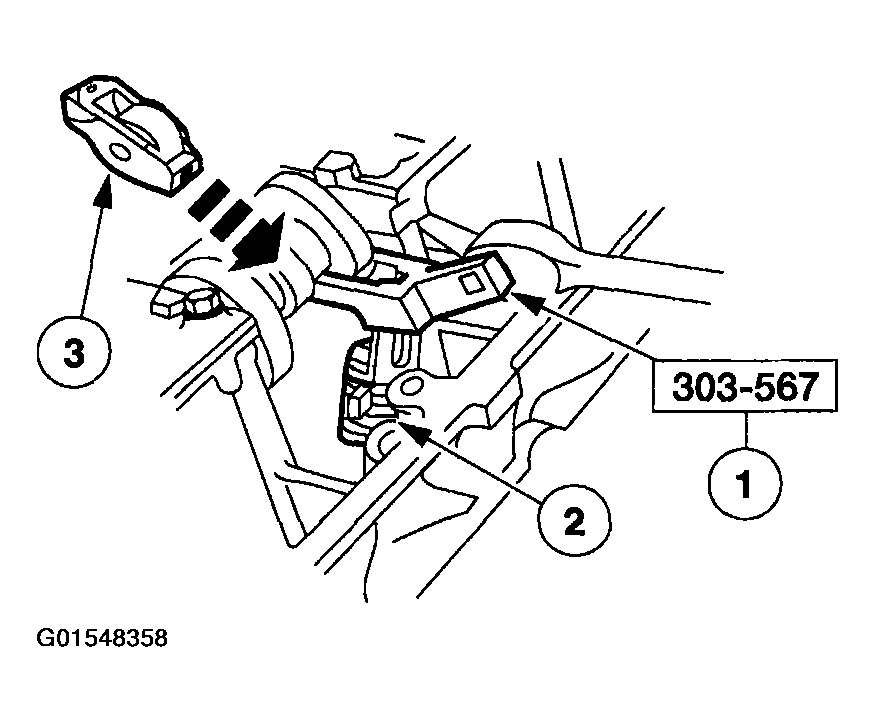

    Fig 1: Installing Camshaft Roller Followers Original Locations
    G01548358Courtesy of FORD MOTOR CO.
  2. Remove the special tool.
    Fig 2: Removing Special Tool
    G01548359Courtesy of FORD MOTOR CO.
  3. Install the valve covers. Refer to Valve Cover RH  or Valve Cover LH .
