Intake Manifold Assembly: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

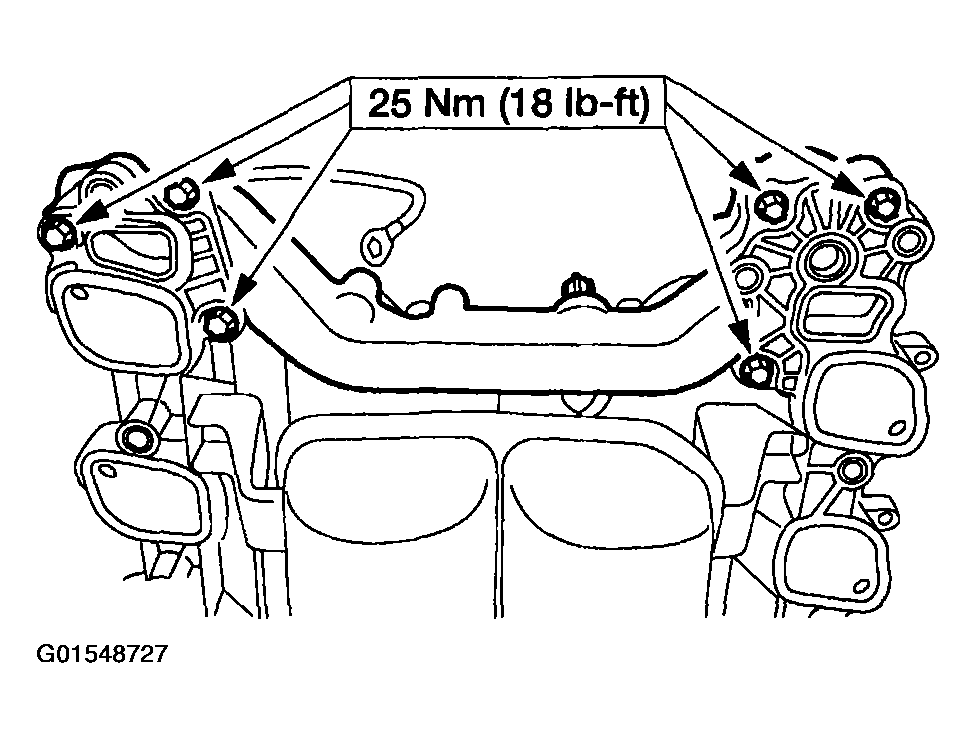

Install the water crossover tube.

Fig 1: Inspecting All External And Internal Surfaces Of Intake Manifold
Courtesy of FORD MOTOR CO.
Install the engine noise shield.

Fig 2: Installing Engine Noise Shield
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring seals with clean engine oil, to aid installation.

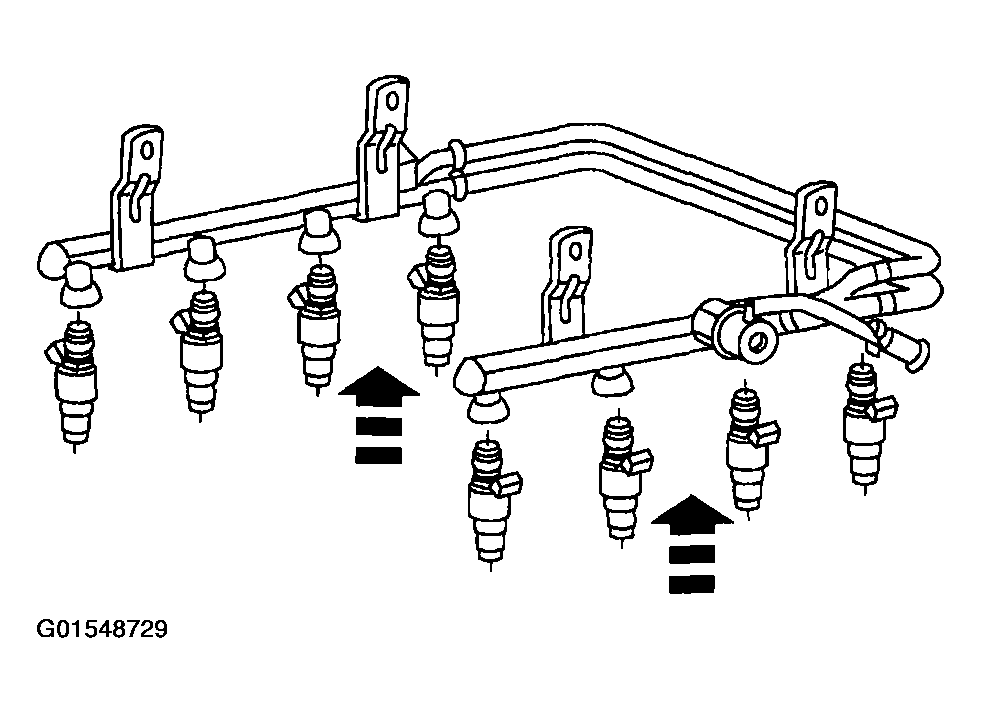

Fig 3: Installing Fuel Injectors Into Fuel Injection Supply Manifold

Courtesy of FORD MOTOR CO.

Install the fuel injectors into the fuel injection supply manifold.
Install the fuel injection supply manifold.

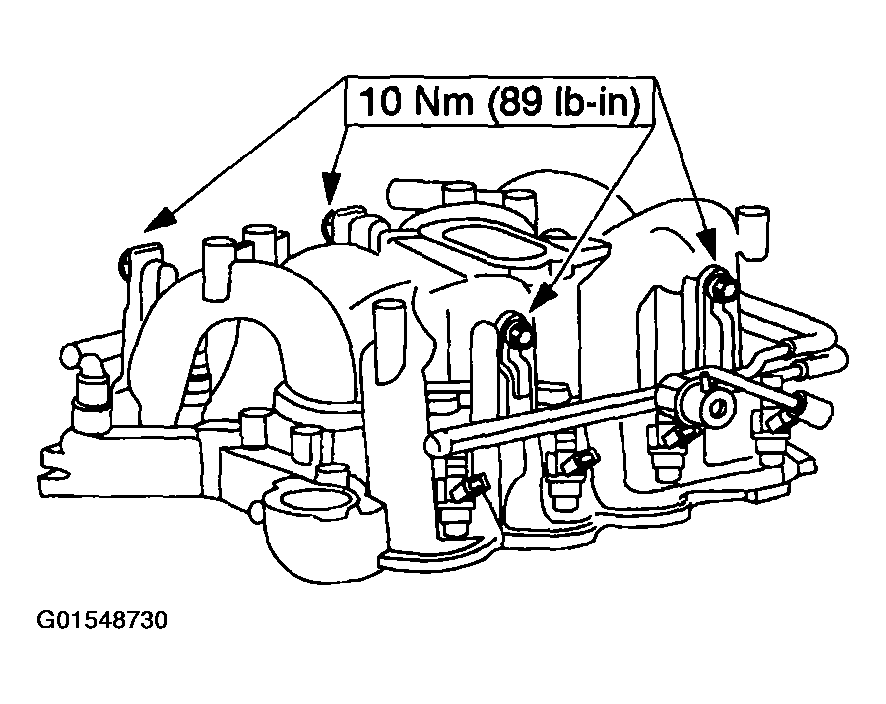

Fig 4: Installing Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.
