Camshaft Journal Clearance - Push Rod Engines
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

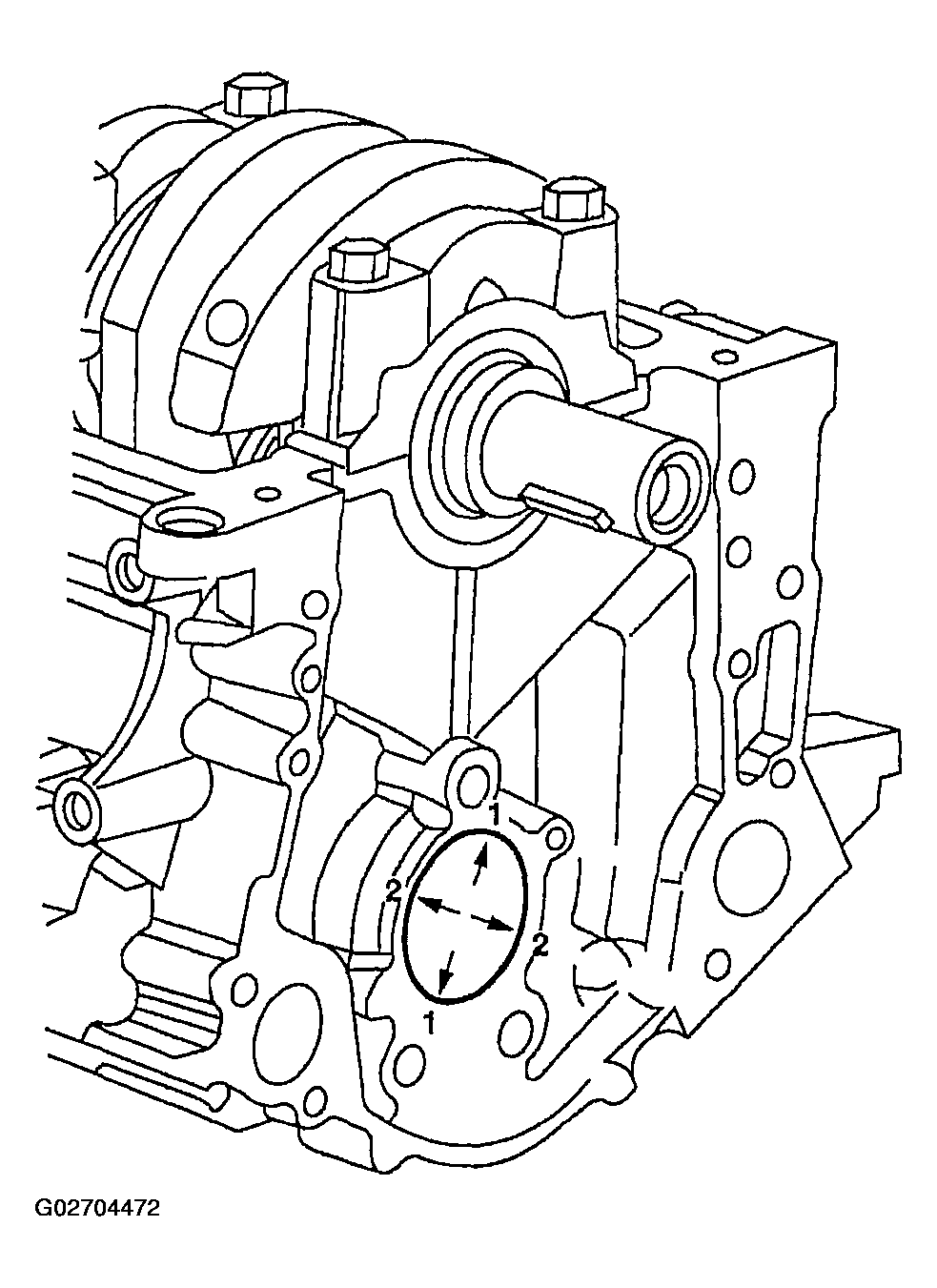

- Measure each camshaft bearing (6261) in two directions.
- Subtract the camshaft journal diameter from the camshaft bearing diameter.
NOTE:
The camshaft journals must meet specifications before checking camshaft journal clearance.
