Camshaft End Play - Push Rod Engines

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Remove the valve tappets. Refer to the appropriate article in ENGINE for the procedure.
Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
Position the camshaft to the rear of the cylinder block.
Zero the indicator.
Move the camshaft to the front of the cylinder block. Note and record the camshaft end play.
- If the camshaft end play exceeds specifications, install a new camshaft thrust plate. Refer to the appropriate article in ENGINE for the procedure.

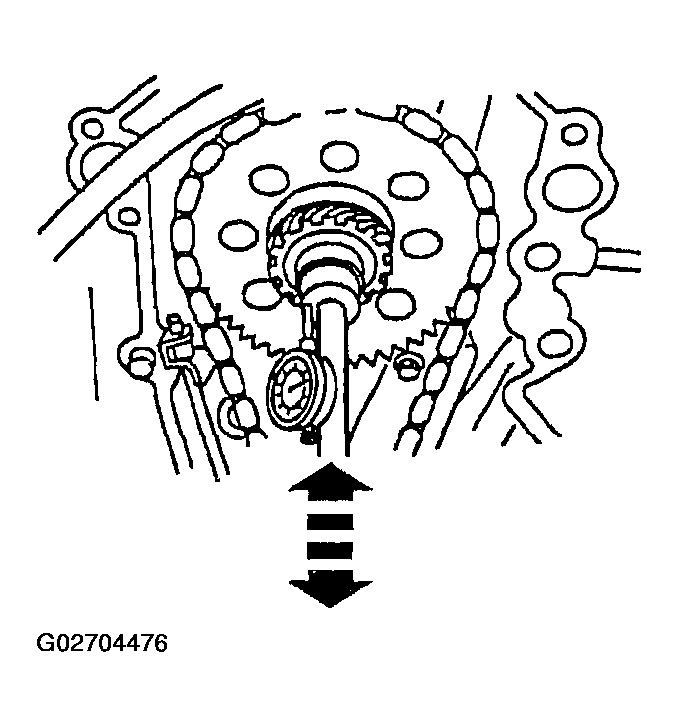

Fig 2: Measuring Camshaft End Play

Courtesy of FORD MOTOR CO.
