Camshaft End Play - OHC Engines
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)

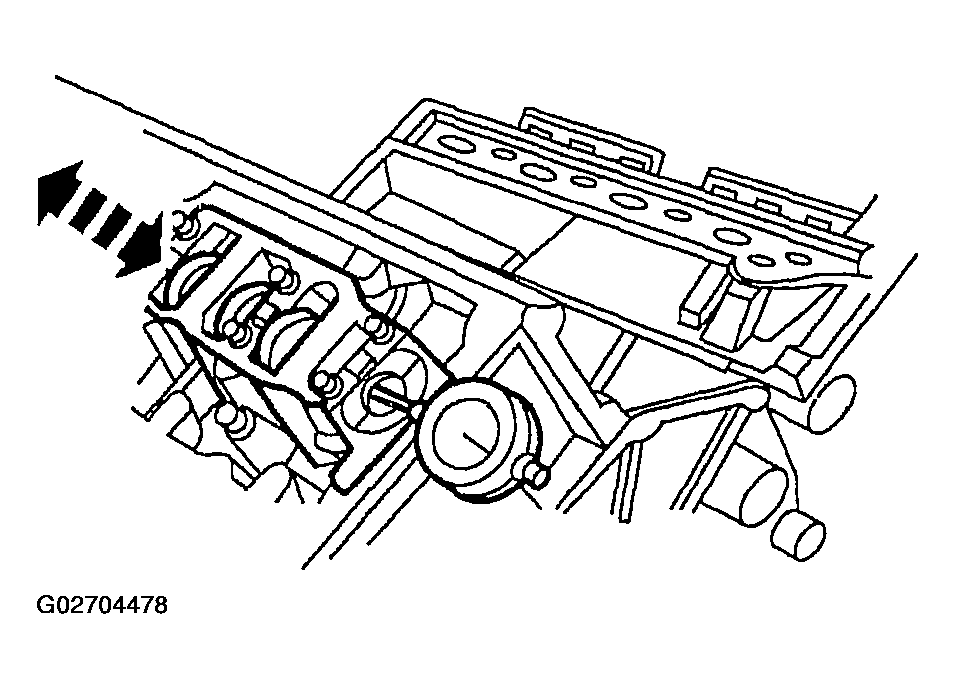

- Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
- Position the camshaft to the rear of the cylinder head.
- Zero the indicator.
- Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
- If camshaft end play exceeds specifications, install new camshaft and recheck end play. Refer to the appropriate article in ENGINE for the procedure.
- If camshaft end play exceeds specification after camshaft installation, install a new cylinder head. Refer to the appropriate article in ENGINE for the procedure.
