Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

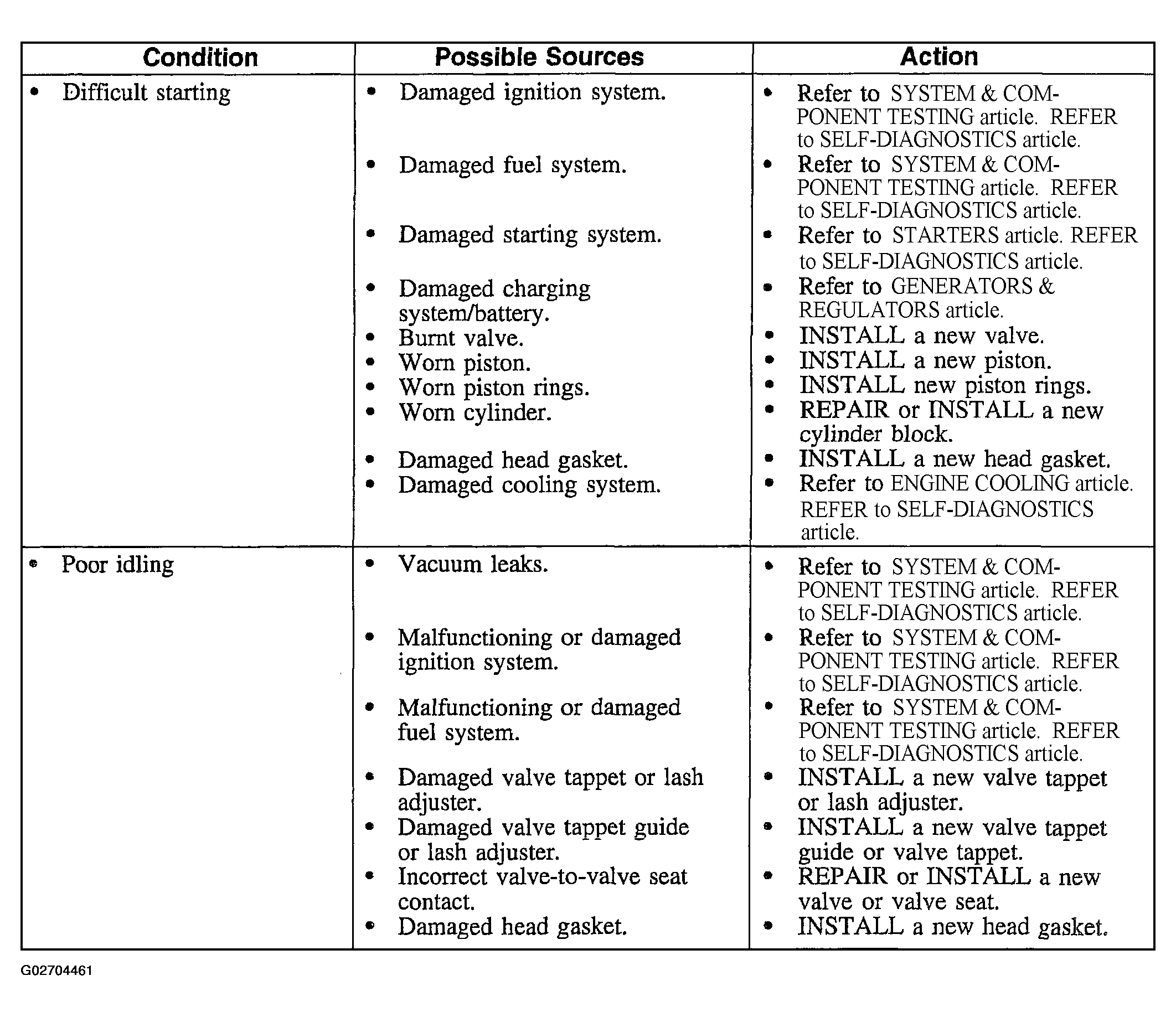

Fig 1: Symptom Chart (1 Of 4)
G02704461Courtesy of FORD MOTOR CO.

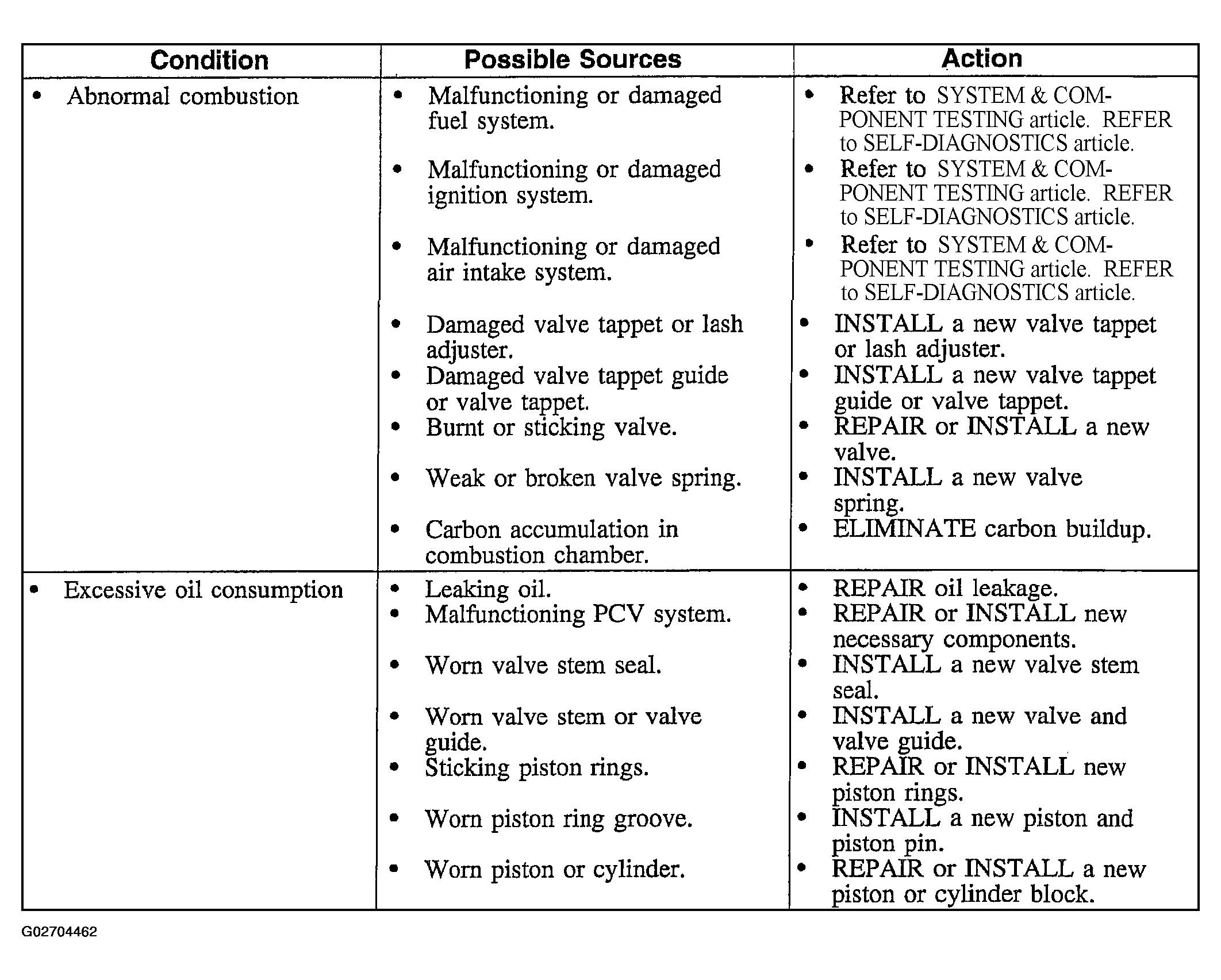

Fig 2: Symptom Chart (2 Of 4)
G02704462Courtesy of FORD MOTOR CO.
Fig 3: Symptom Chart (3 Of 4)
G02704463Courtesy of FORD MOTOR CO.

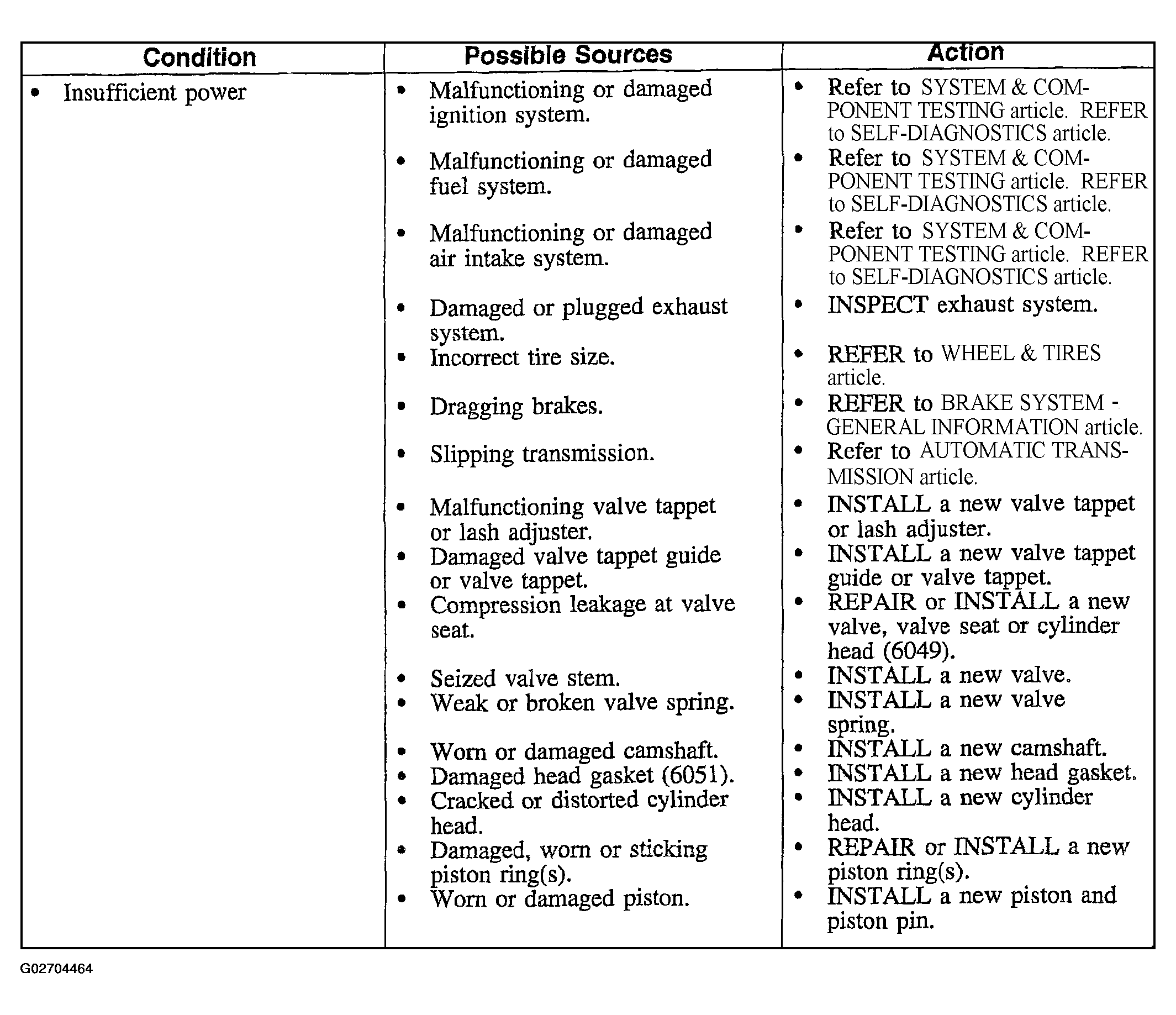

Fig 4: Symptom Chart (4 Of 4)
G02704464Courtesy of FORD MOTOR CO.
