Sector Shaft Arm Drag Link - F-250, F-350, 4x2: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Follow the removal procedure in reverse order.
- Install a new cotter pin.

  Fig 1: Installing Castled Nut
  Courtesy of FORD MOTOR CO.

  Fig 2: Installing Cotter Pin
  Courtesy of FORD MOTOR CO.

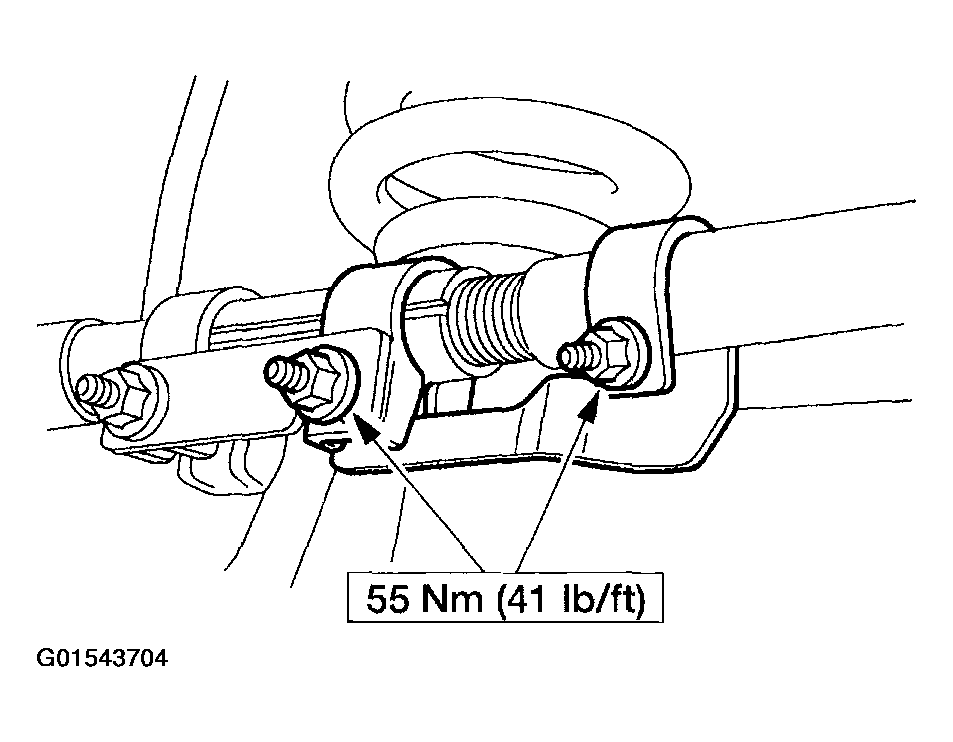

  Fig 3: Installing Adjusting Sleeve Clamp
  Courtesy of FORD MOTOR CO.
Check the toe-in and clear vision settings; Refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
