F-250, F-350, 4x2

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

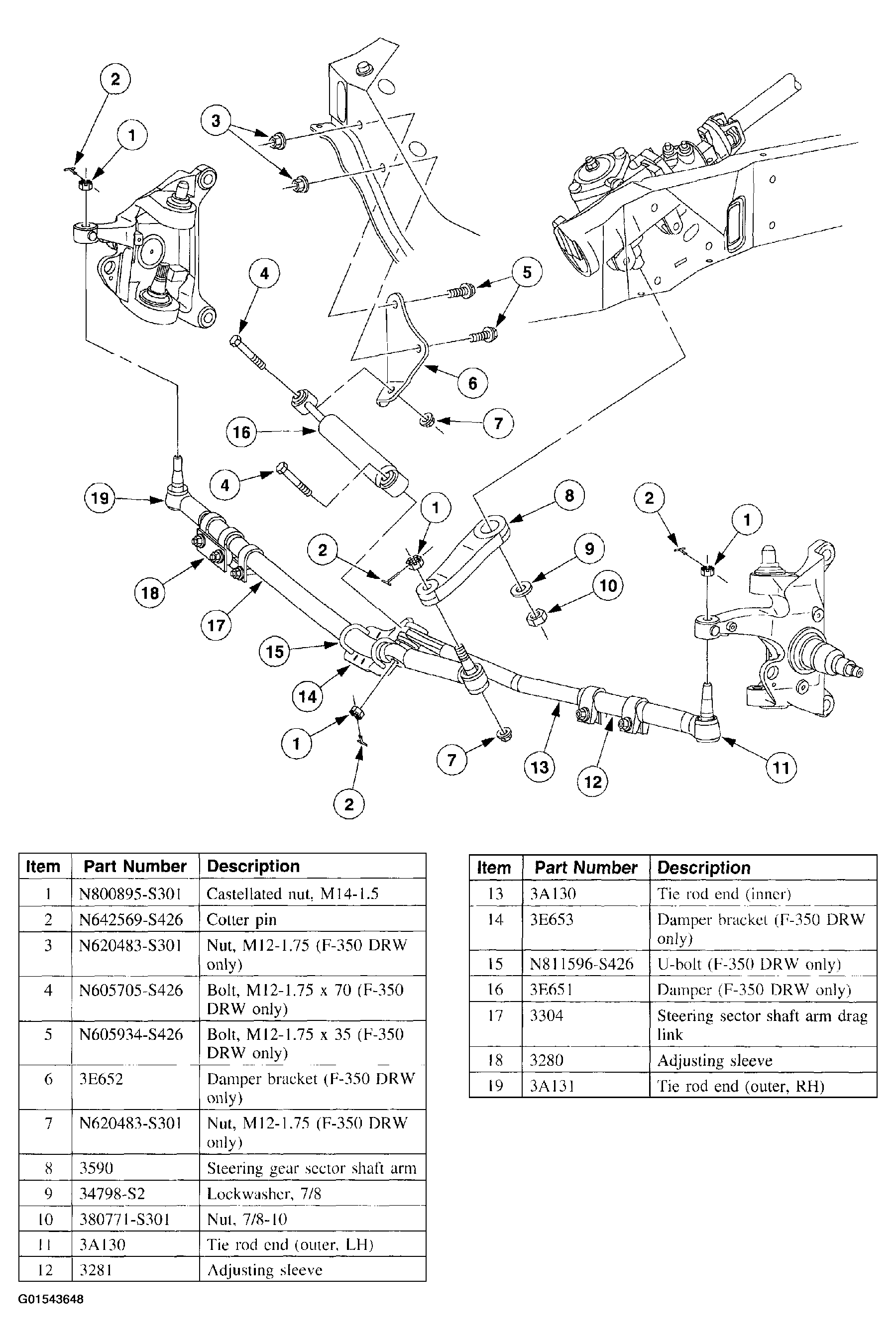

Fig 1: Identifying Components Of Steering Linkage - F-250, F-350, 4x2
G01543648Courtesy of FORD MOTOR CO.
