Removal and Installation

All vehicles

1. Remove the air cleaner assembly.

   Vehicles with 7.3L engine

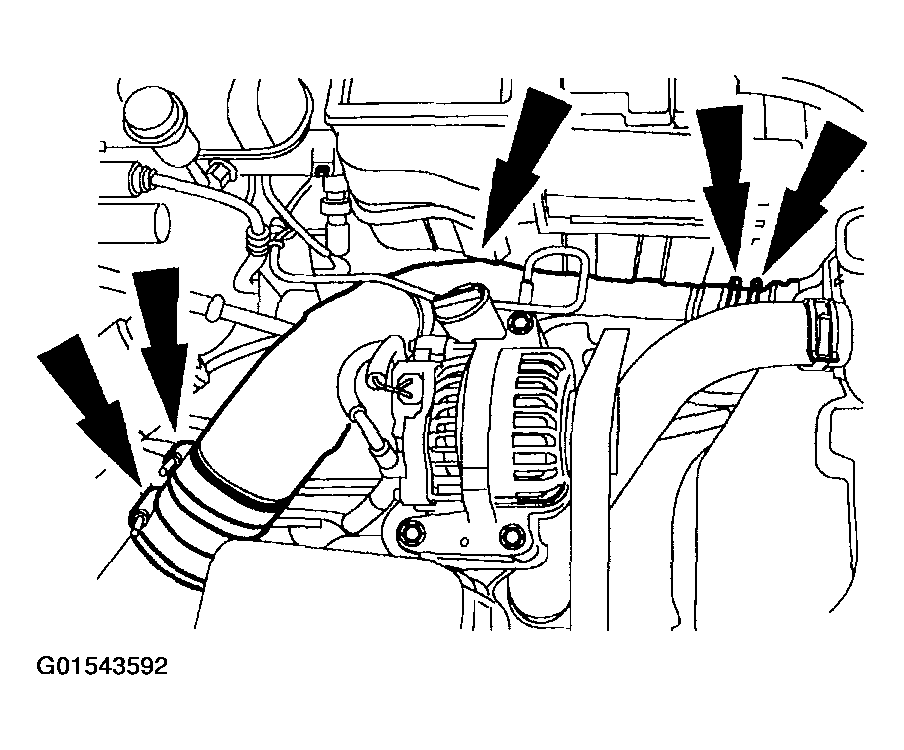

2. Loosen the clamps and remove the air cooler outlet duct.
   Fig 1: Loosening Clamps And Removing Air Cooler Outlet Duct

   Courtesy of FORD MOTOR CO.
3. Press the brake pedal several times to discharge the accumulator.

   All vehicles

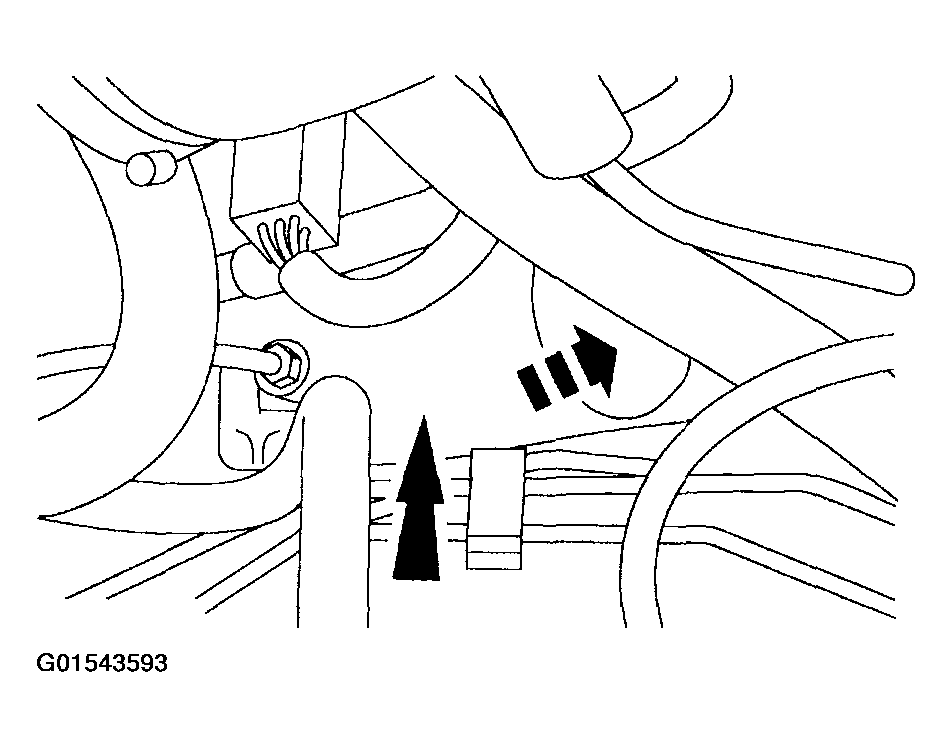

4. Disengage the steering coupling shield from the line fitting and slide upward on the steering shaft.
   Fig 2: Disengaging Steering Coupling Shield From Line Fitting And Slide Upward On Steering Shaft

   Courtesy of FORD MOTOR CO.

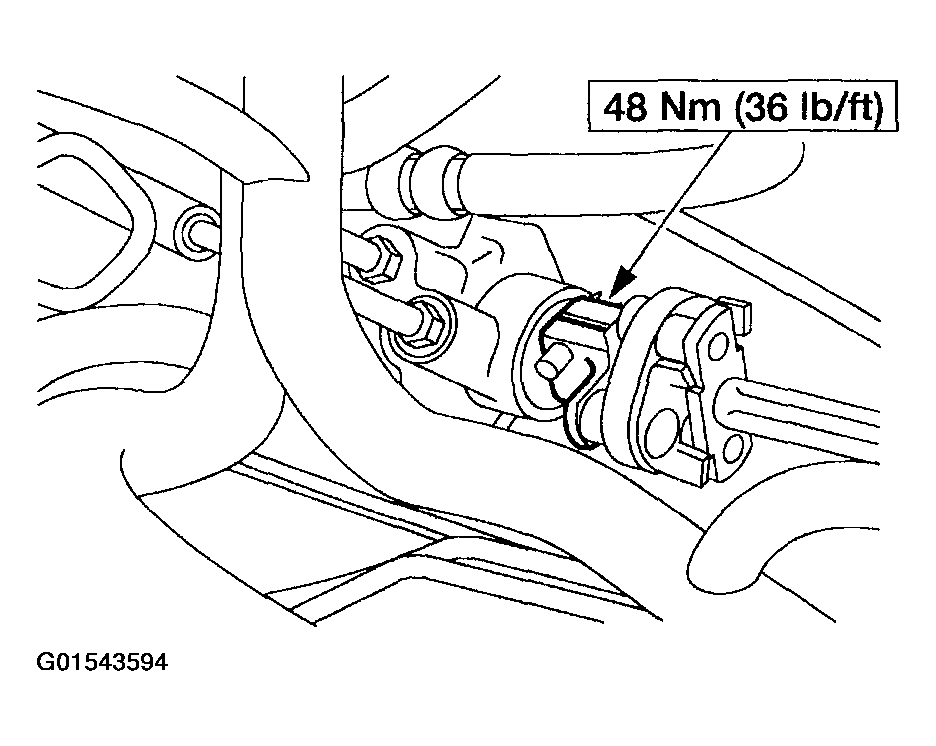

5. Remove the pinch bolt.
   • Turn the steering wheel as necessary to access the bolt.
   • Make sure the steering column is locked.
     Fig 3: Removing Pinch Bolt

     Courtesy of FORD MOTOR CO.

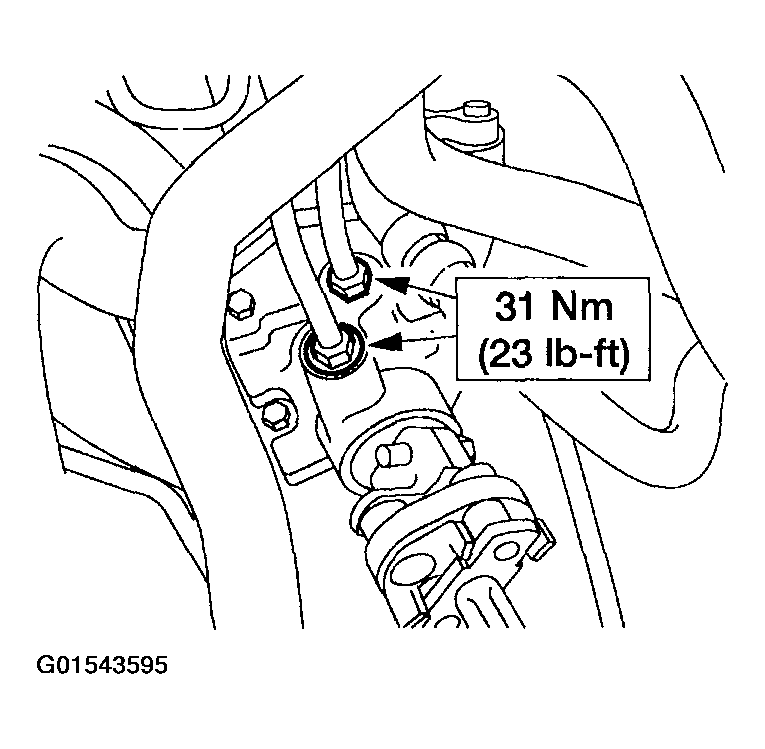

CAUTION: During installation, do not overtighten the fittings.
Fig 4: Disconnecting Lines
Courtesy of FORD MOTOR CO.
6. Disconnect the lines.
7. Raise the vehicle.
8. Remove the cotter pin and nut.
   • Discard the cotter pin.
     Fig 5: Removing Cotter Pin And Nut

     Courtesy of FORD MOTOR CO.

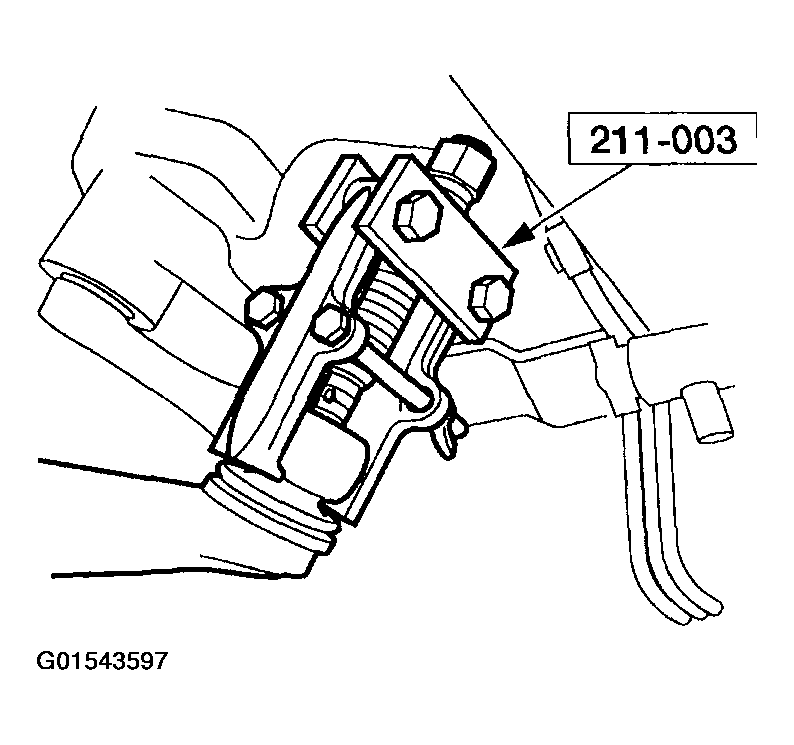

9. Using the special tool, disconnect the drag link.
   Fig 6: Disconnecting Drag Link

   Courtesy of FORD MOTOR CO.
10. Remove the bolts, washers and the steering gear.
    Fig 7: Removing Bolts, Washers And Steering Gear

    Courtesy of FORD MOTOR CO.
11. Remove the nut.
    Fig 8: Removing Nut

    Courtesy of FORD MOTOR CO.

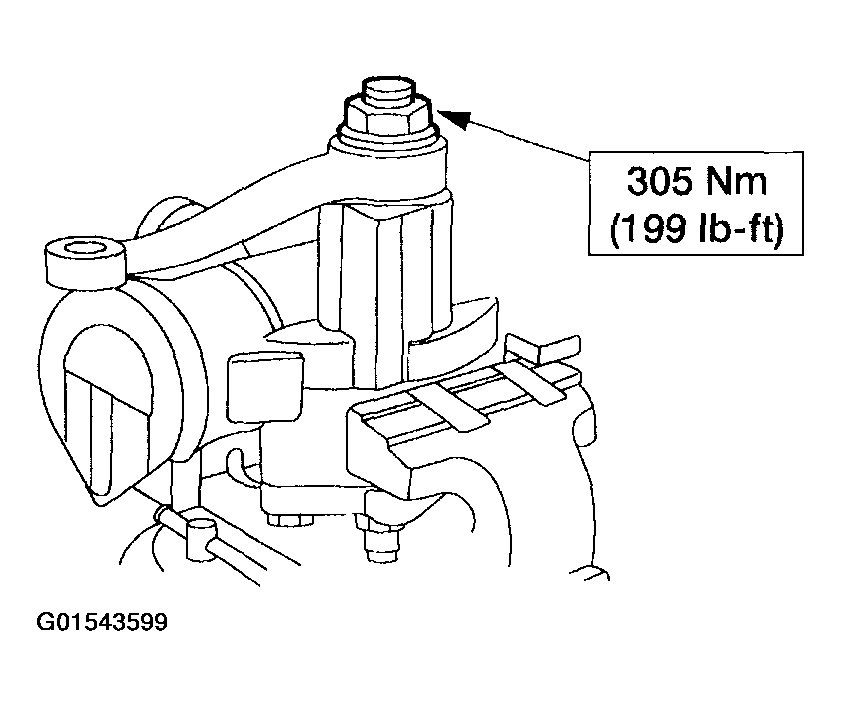

12. Using the special tool, remove the steering gear sector shaft arm.
    Fig 9: Removing Steering Gear Sector Shaft Arm

    Courtesy of FORD MOTOR CO.
13. To install, reverse the removal procedure.
    • Using the special tool, install new seal rings on the power steering hose fittings.
      Fig 10: Installing New Seal Rings On Power Steering Hose Fittings

      Courtesy of FORD MOTOR CO.
14. Fill and leak check the system. Refer to STEERING SYSTEM - GENERAL INFORMATION .

    Vehicles with 7.3L engine

15. Bleed the hydro-boost system. Refer to POWER BRAKE ACTUATION .
