Power Steering Pump Pulley - CII Pump: Removal
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- If equipped with A/C, rotate the tensioner clockwise and remove the belt from the power steering pump pulley. If not equipped with A/C, rotate the tensioner counterclockwise and remove the belt from the power steering pump pulley. For additional information, refer to DRIVE BELT ROUTING (EXCURSION & F250-550 PICKUP 7.3L DIESEL) .

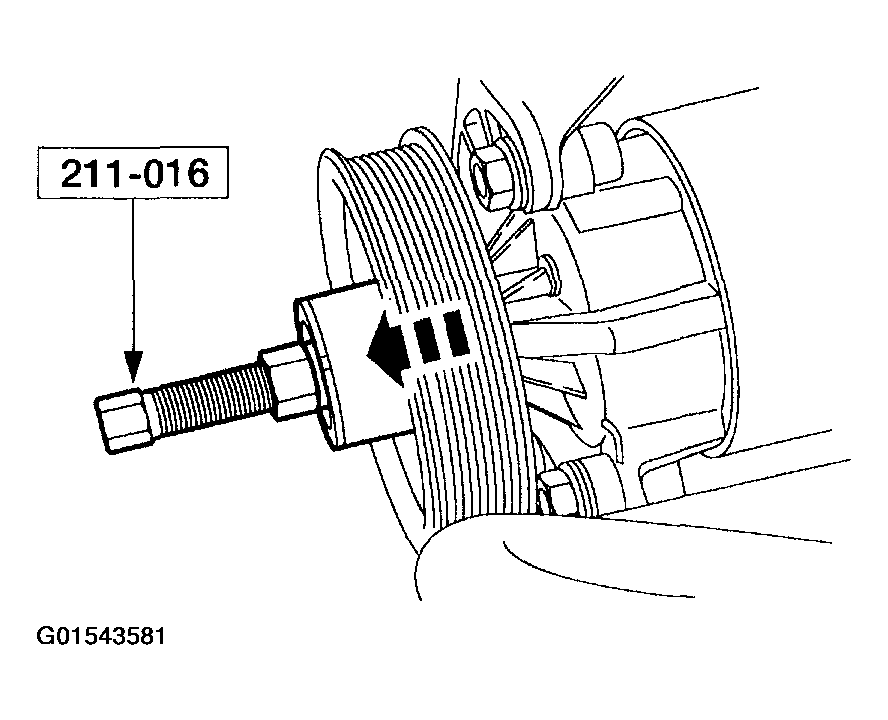

- Using the special tool, remove the power steering pump pulley.
