Power Steering Pump Pulley - CII Pump: Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Replacement of the power steering pump pulley is necessary after being removed and installed two times.

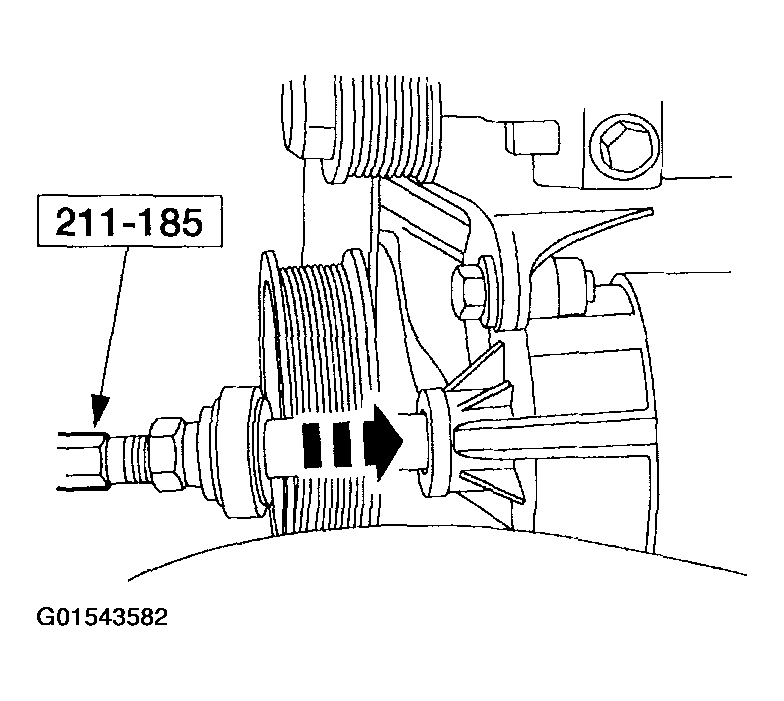

- Using the special tool, install the power steering pump pulley. Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.
- Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.
- Install the drive belt. For additional information, refer to DRIVE BELT ROUTING (EXCURSION & F250-550 PICKUP 7.3L DIESEL) .
