Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the power steering pump pulley. Refer to POWER STEERING PUMP PULLEY - CII Pump .
Loosen the clamps and remove the air cleaner outlet tube

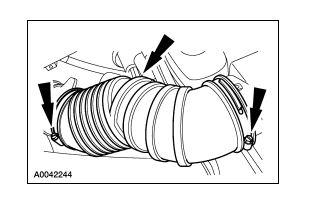

Fig 1: Air Cleaner Outlet Tube
Courtesy of FORD MOTOR CO.
Remove the inlet air tube.
1. Loosen the clamp.
2. Detach the ducts from the charge air cooler and remove the inlet air tube.

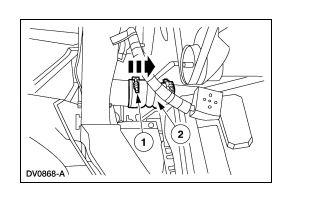

  Fig 2: Inlet Air Tube
  Courtesy of FORD MOTOR CO.
Remove the return hose.

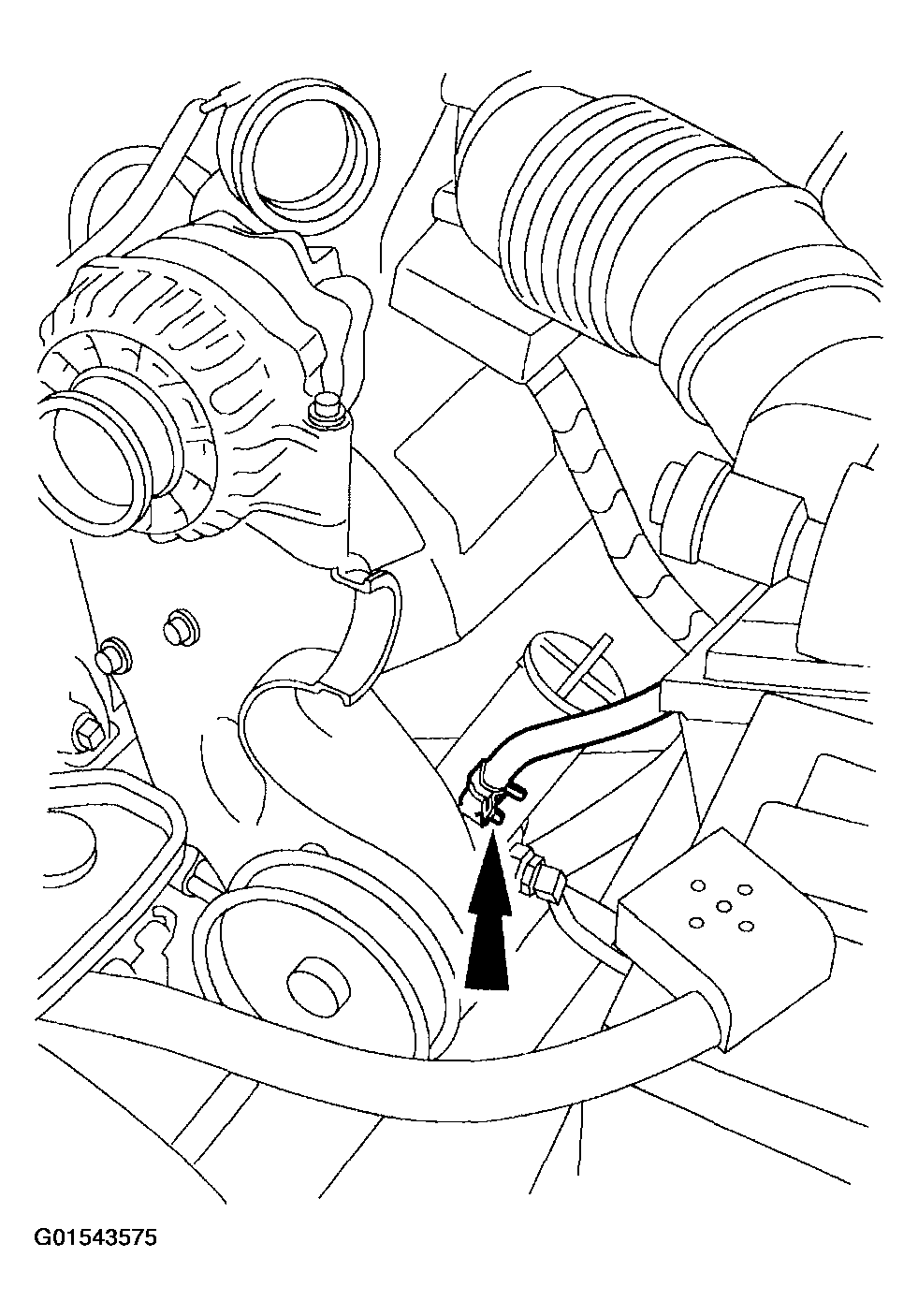

Fig 3: Removing Return Hose
Courtesy of FORD MOTOR CO.
Place a pan under the power steering pump and drain the pump.
Disconnect the power steering high-pressure line.

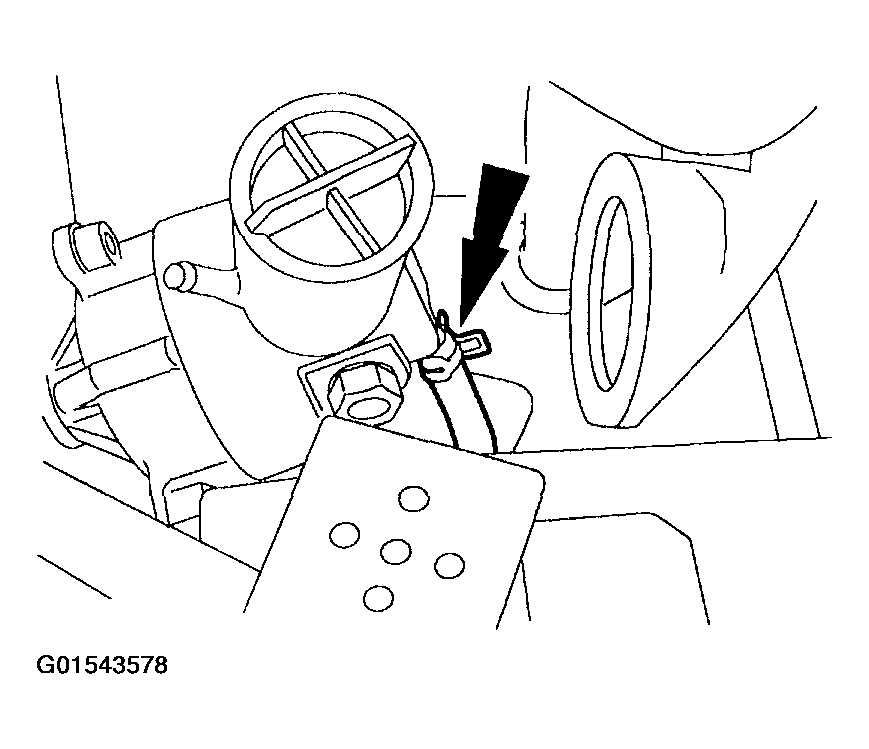

Fig 4: Power Steering High-Pressure Line
Courtesy of FORD MOTOR CO.
Remove the bolts and detach the pump from the bracket.

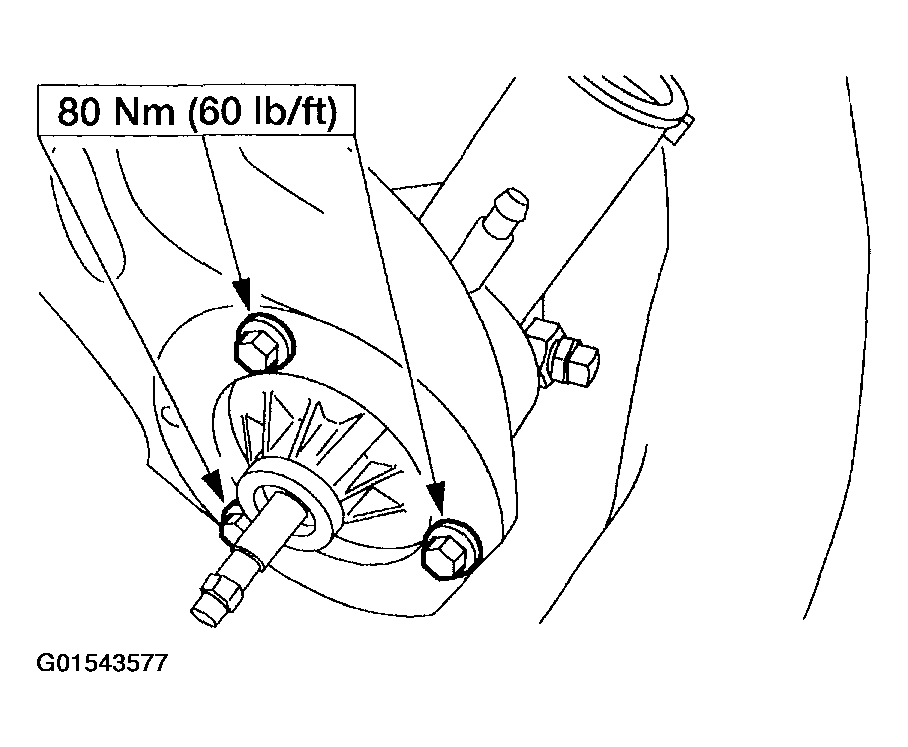

Fig 5: Power Steering Pump Bolts With Torque Specifications
Courtesy of FORD MOTOR CO.
Disconnect the power steering oil cooler return hose and remove the pump.

Fig 6: Power Steering Oil Cooler Return Hose
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
When connecting a fitting with a Teflon® seal, a new ring must be installed.
- Using the special tool, install a Teflon® seal over a fitting.

  Fig 7: Installing Seal Ring
  Courtesy of FORD MOTOR CO.
Fill and leak check the power steering system. Refer to STEERING SYSTEM - GENERAL INFORMATION .
