Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 5.4L and 6.8L engine

Disconnect the hoses.

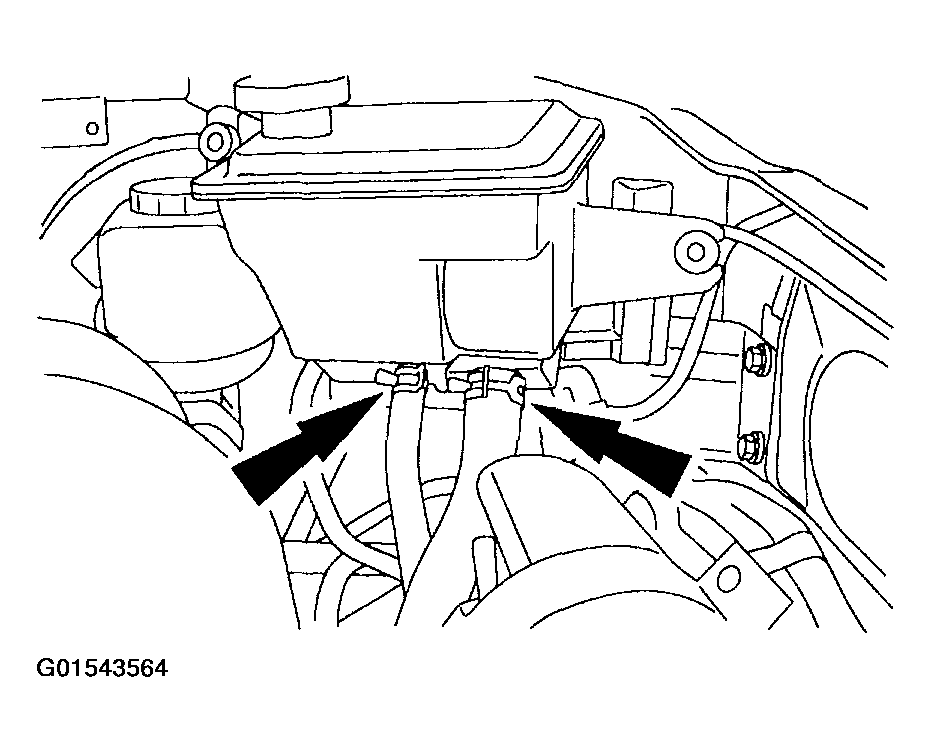

Fig 1: Disconnecting Hoses (5.4L And 6.8L Engine)
Courtesy of FORD MOTOR CO.

Vehicles with 6.0L engine
Disconnect the hoses.

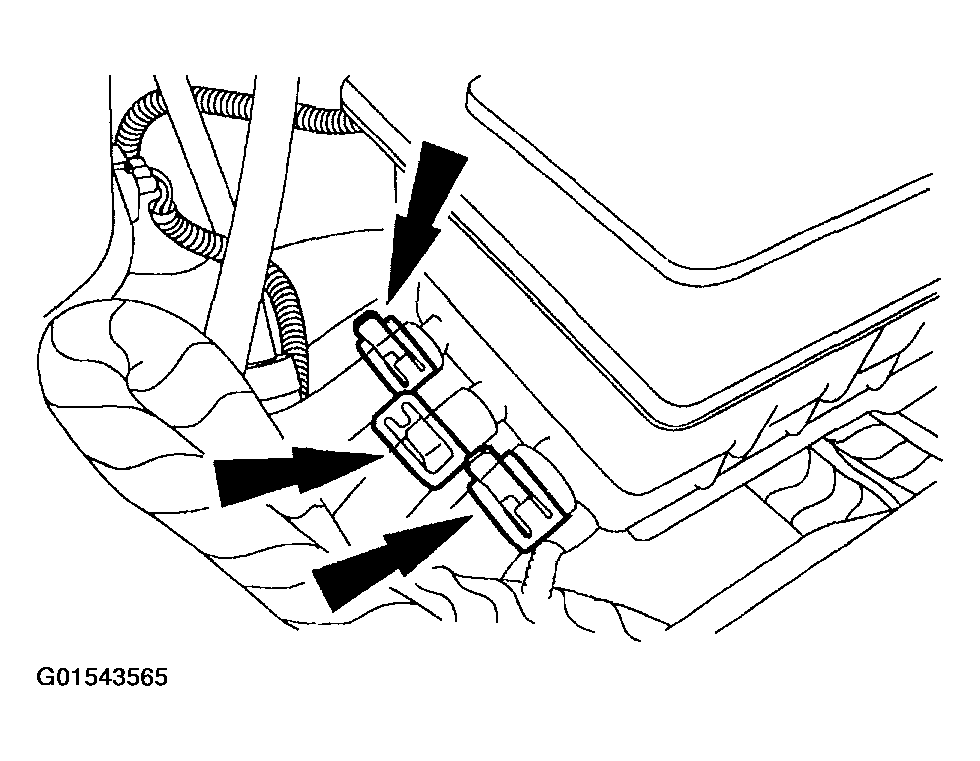

Fig 2: Disconnecting Hoses (6.0L Engine)
Courtesy of FORD MOTOR CO.

Vehicles with 5.4L and 6.8L engine
Remove the screws and the reservoir.

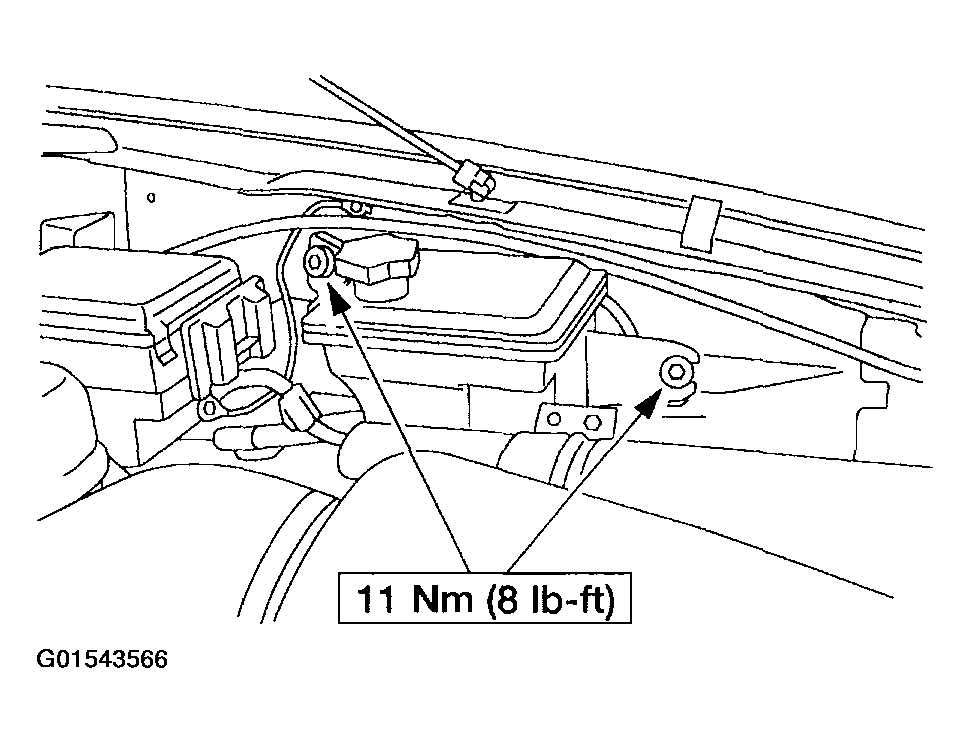

Fig 3: Removing Screws And Reservoir
Courtesy of FORD MOTOR CO.

Vehicles with 6.0L engine

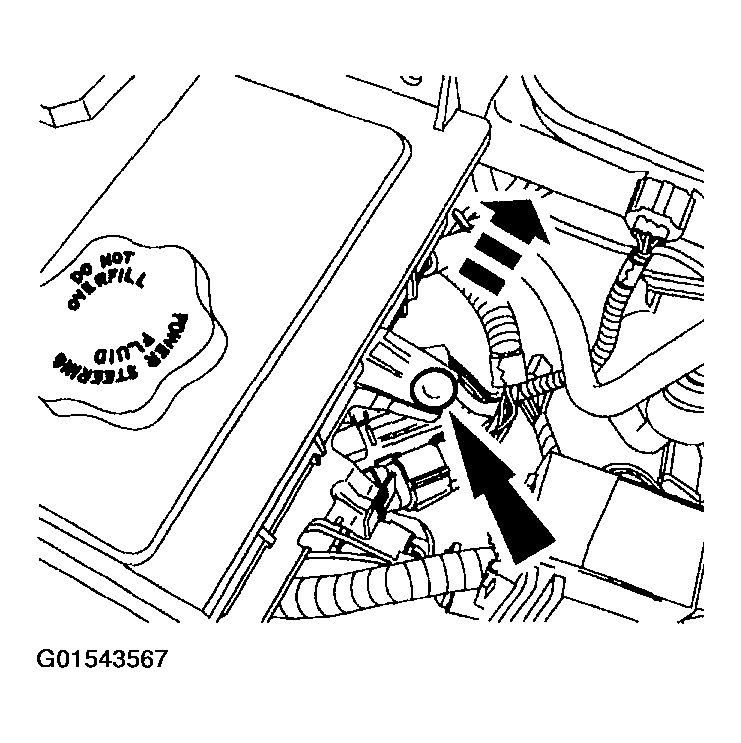

Remove the pushpin.
- Slide the reservoir toward the engine to detach the reservoir from the bracket and remove the reservoir.

  Fig 4: Sliding Reservoir Toward Engine To Detach Reservoir From Bracket And Removing Reservoir
  Courtesy of FORD MOTOR CO.
All vehicles

NOTE: The reservoir hoses are marked to show the correct location and orientation. Make sure that the hoses are correctly installed to the reservoir.

To install, reverse the removal procedure.
Fill and leak check the system. Refer to STEERING SYSTEM - GENERAL INFORMATION .
