Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Unclamp and disconnect the hoses.
- Drain the fluid into a suitable container.

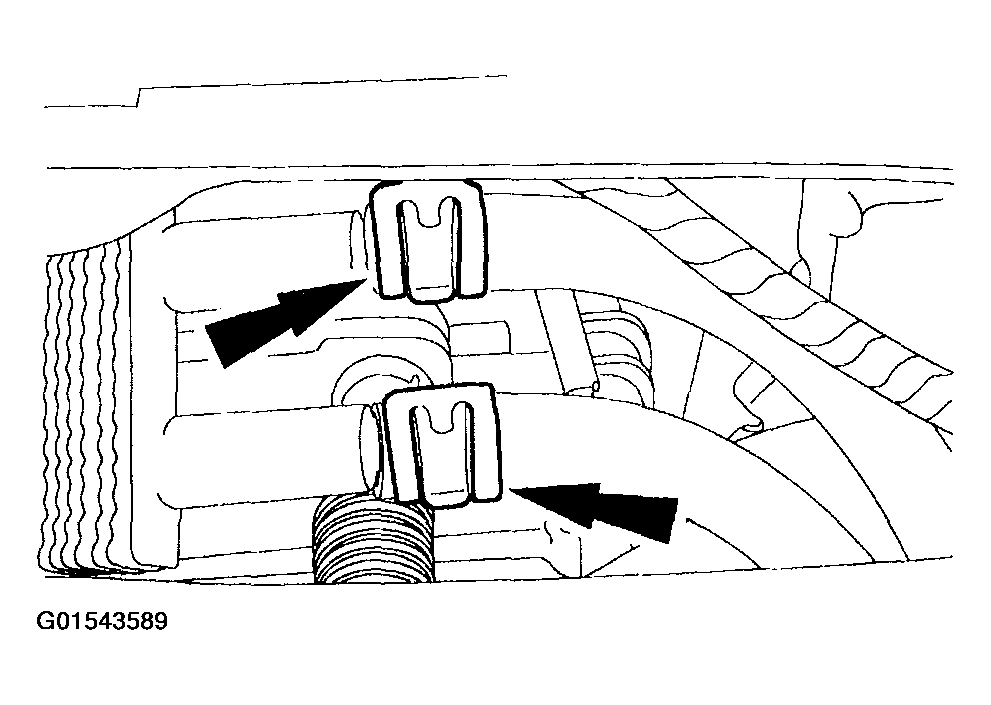

  Fig 1: Unclamping And Disconnecting Hoses
  Courtesy of FORD MOTOR CO.
Remove the two bolts and the cooler.

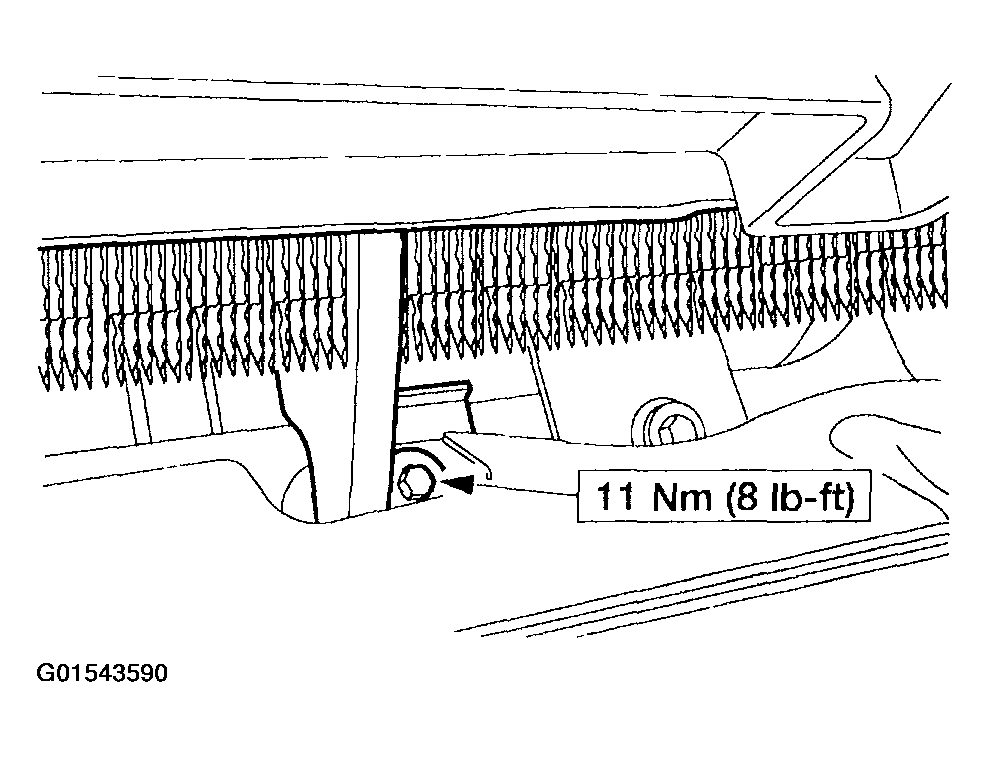

Fig 2: Removing Bolts And Cooler
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If a new cooler is being installed, install the hoses on the new cooler.
