Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hydraulic control unit (HCU). Refer to Hydraulic Control Unit (HCU) .
Disconnect the pump motor electrical connector from the anti-lock brake control module.

Fig 1: Disconnecting Pump Motor Electrical Connector From Anti-Lock Brake Control Module
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake control module.
1. Remove the screws.
2. Remove the anti-lock brake control module.

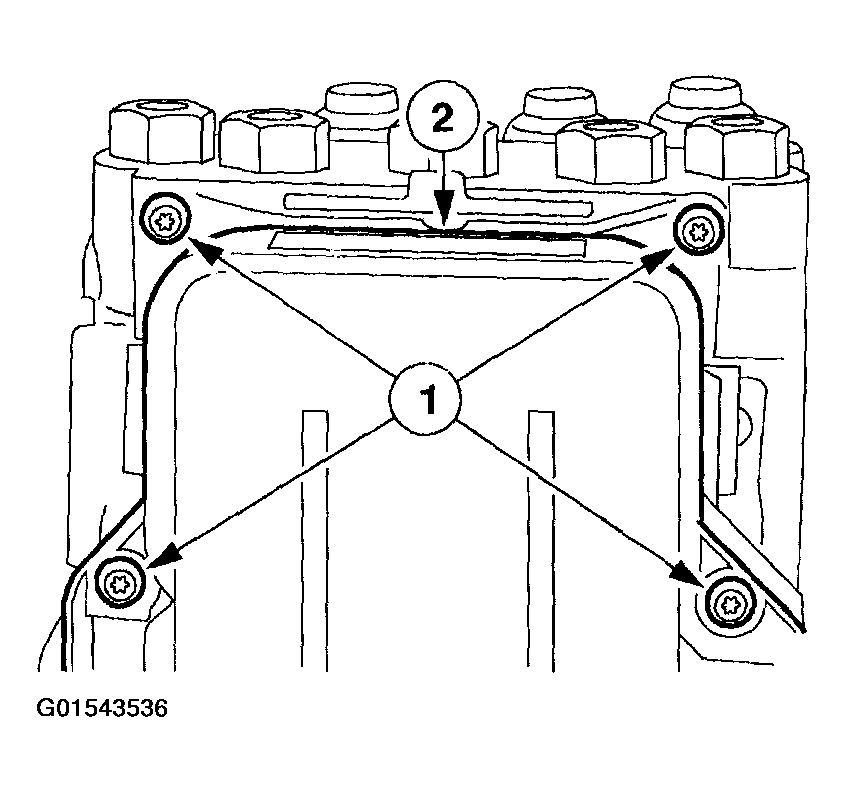

  Fig 2: Removing Anti-Lock Brake Control Module
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

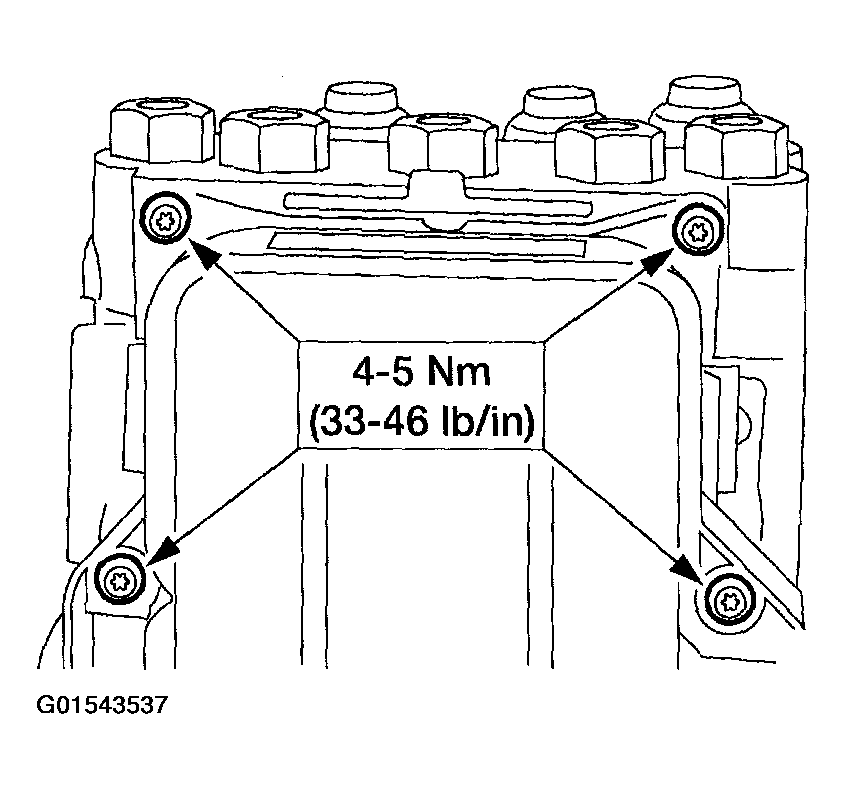

Fig 3: Installing Anti-Lock Brake Control Module
Courtesy of FORD MOTOR CO.
