Pinpoint Test O: DTC B1485: Testing

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

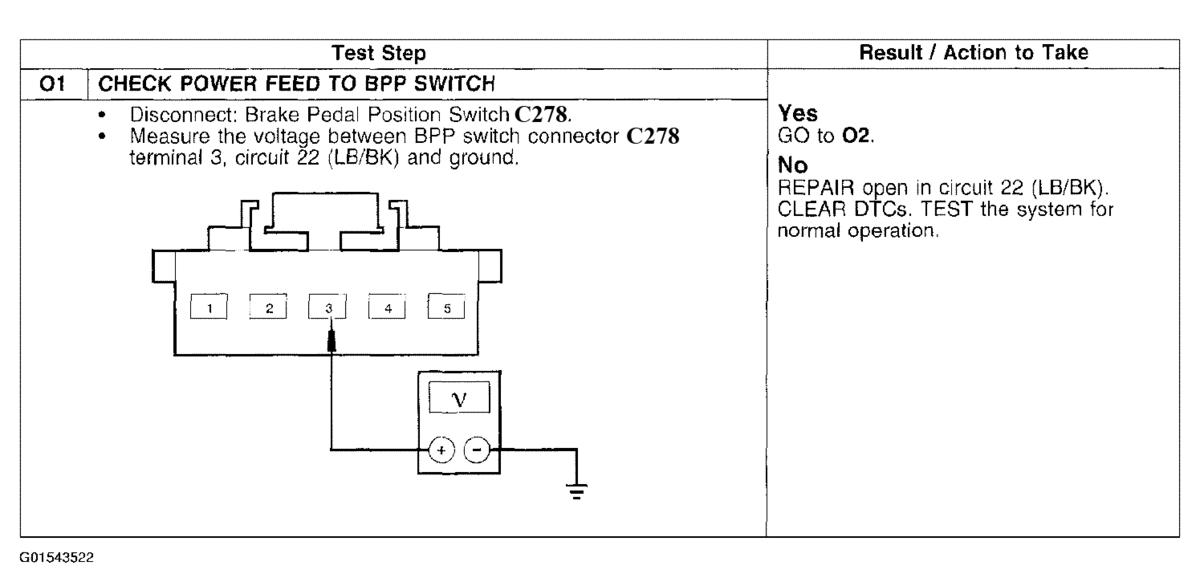

Fig 1: Pinpoint Test O: DTC B1485 - Brake Pedal Position (BPP) Switch Circuit Failure (O1)

Courtesy of FORD MOTOR CO.

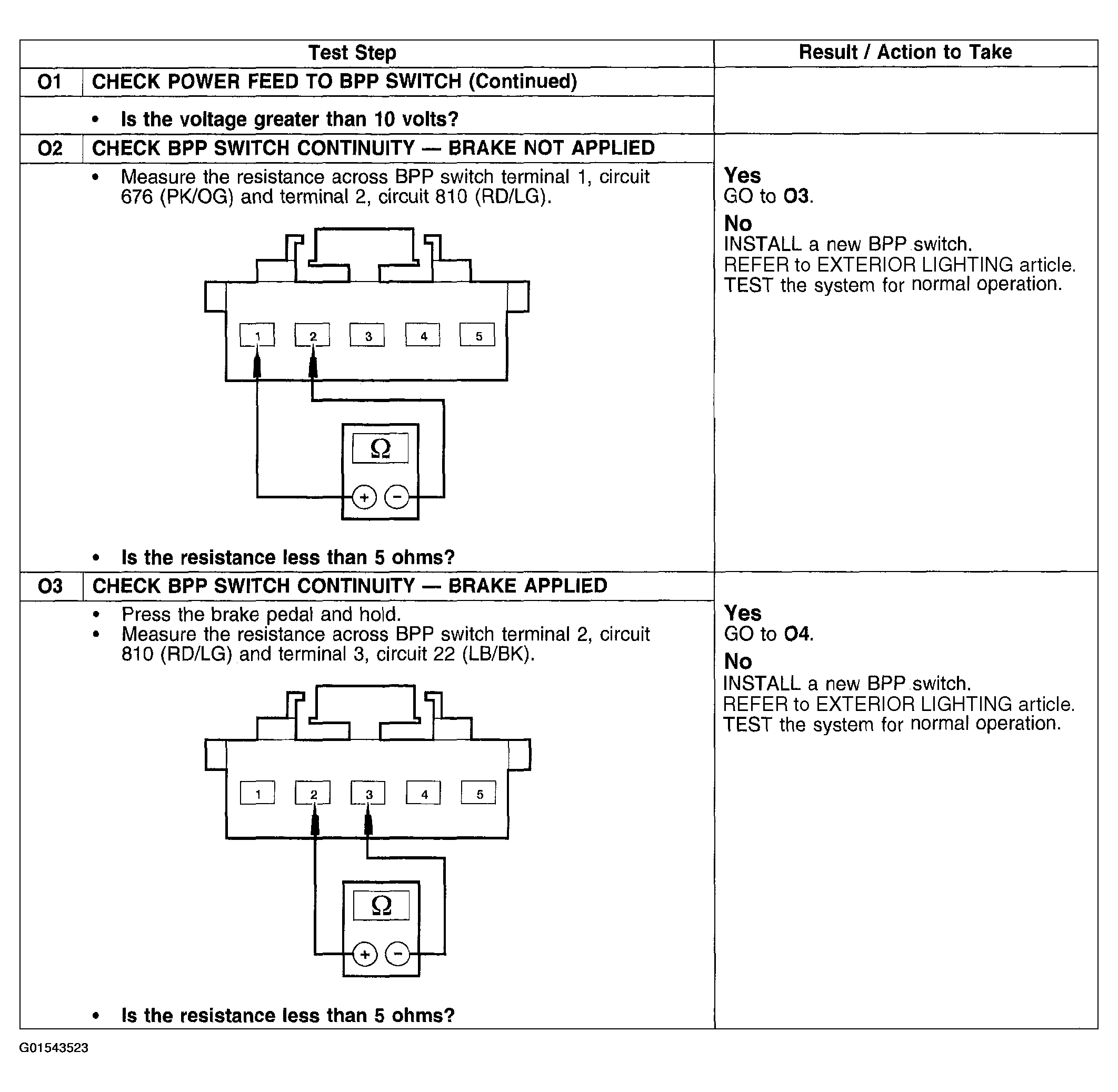

Fig 2: Pinpoint Test O: DTC B1485 - Brake Pedal Position (BPP) Switch Circuit Failure (O1 Cont.-O3)

Courtesy of FORD MOTOR CO.

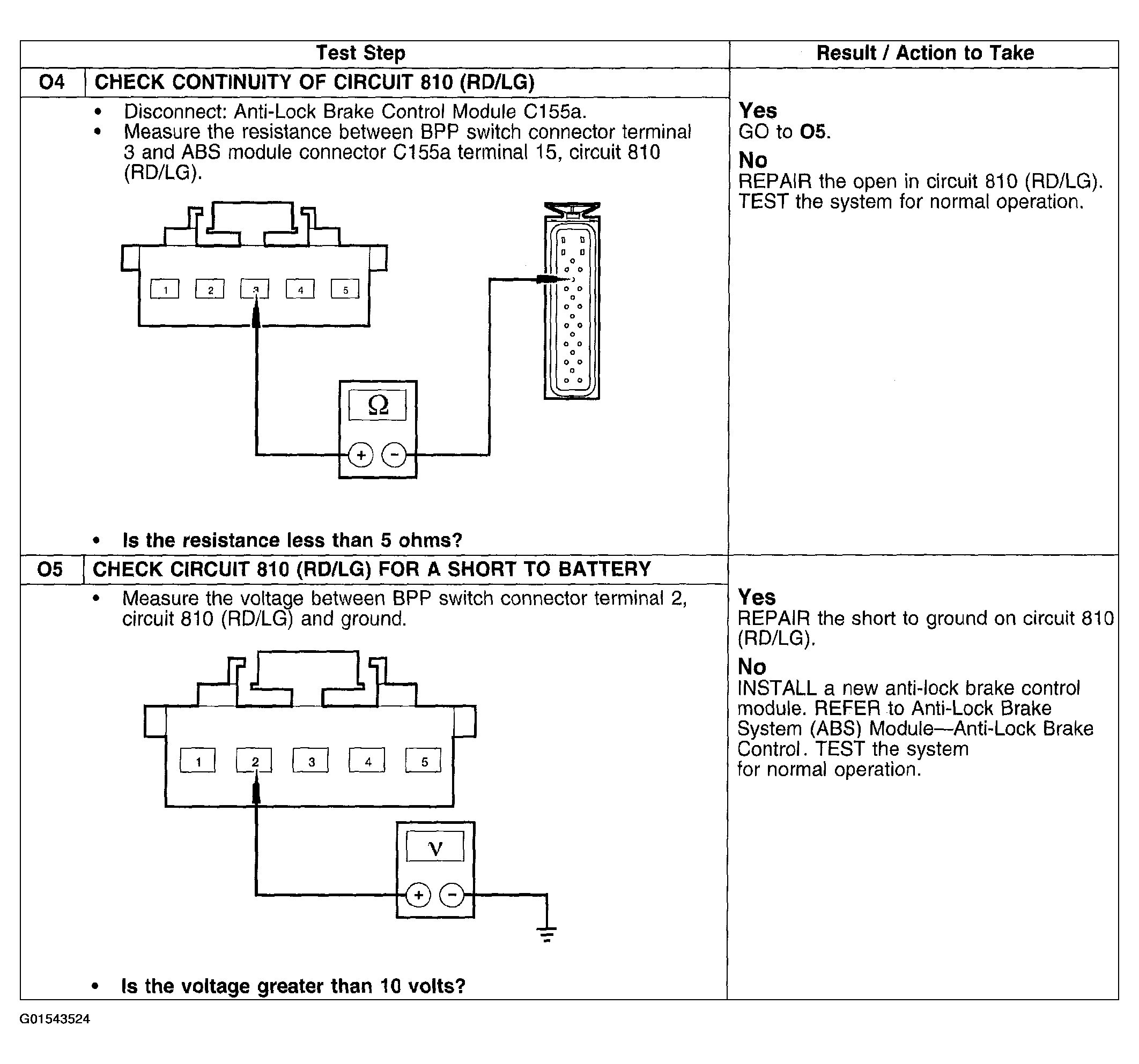

Fig 3: Pinpoint Test O: DTC B1485 - Brake Pedal Position (BPP) Switch Circuit Failure (O4 & O5)

Courtesy of FORD MOTOR CO.
