Pinpoint Test K: DTCs C1113, C1115, C1185: Testing

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

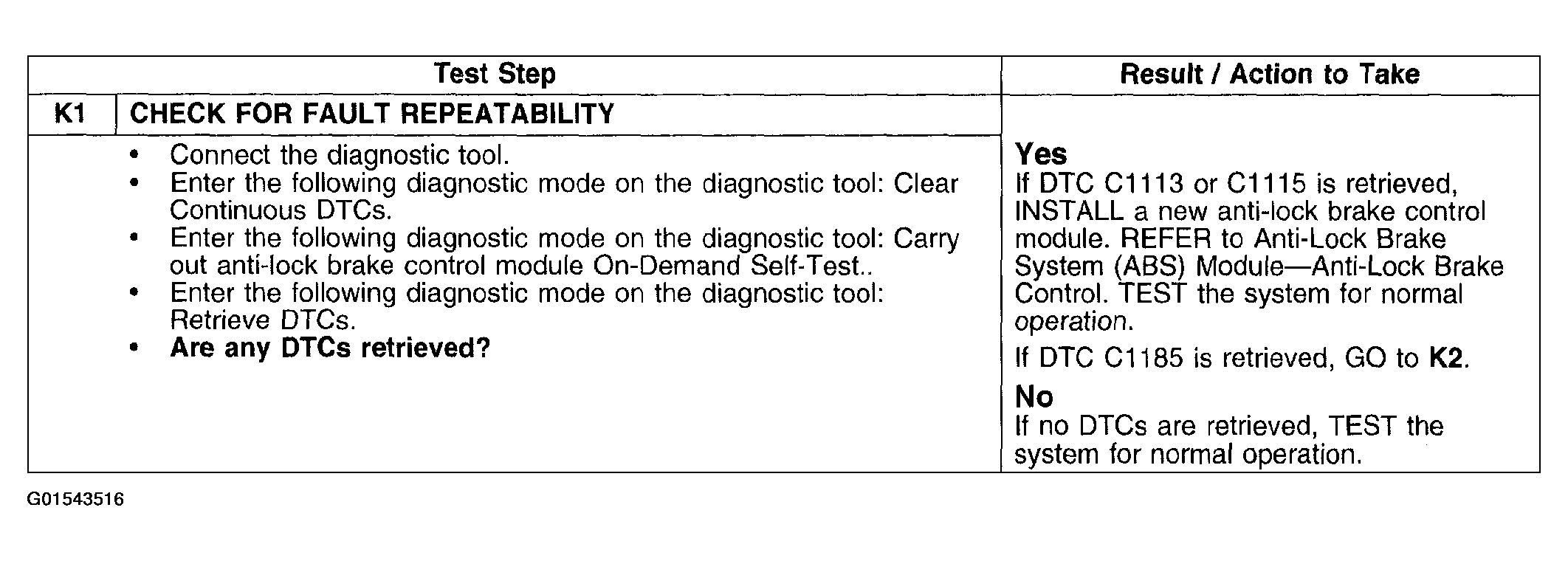

Fig 1: Pinpoint Test K: DTCs C1113, C1115, C1185 - ABS Power Relay Circuit Failure/Short To Battery (K1)
G01543516Courtesy of FORD MOTOR CO.

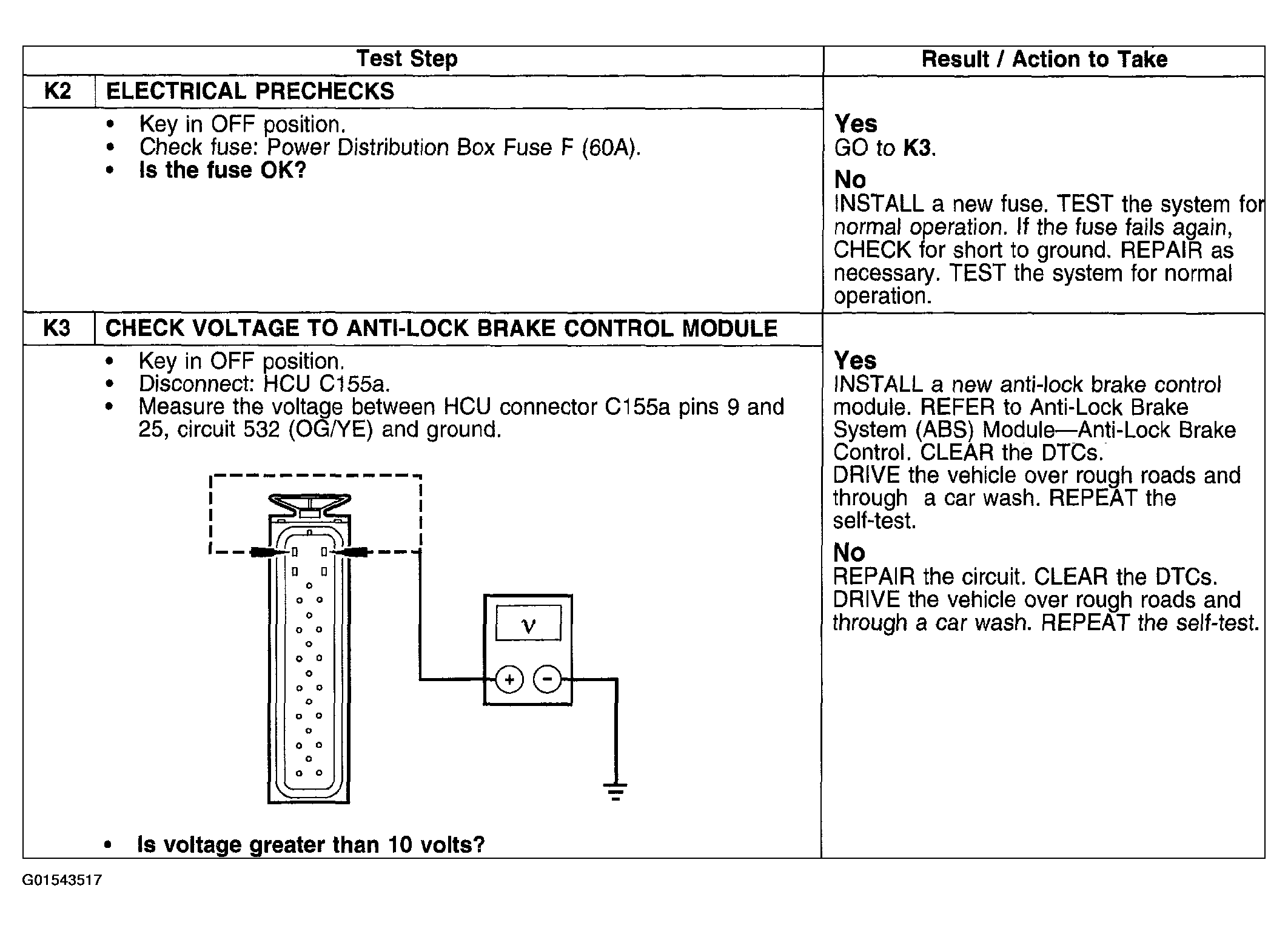

Fig 2: Pinpoint Test K: DTCs C1113, C1115, C1185 - ABS Power Relay Circuit Failure/Short To Battery (K2 & K3)
G01543517Courtesy of FORD MOTOR CO.
