Pinpoint Test J: DTCs C1095, C1096: Testing

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

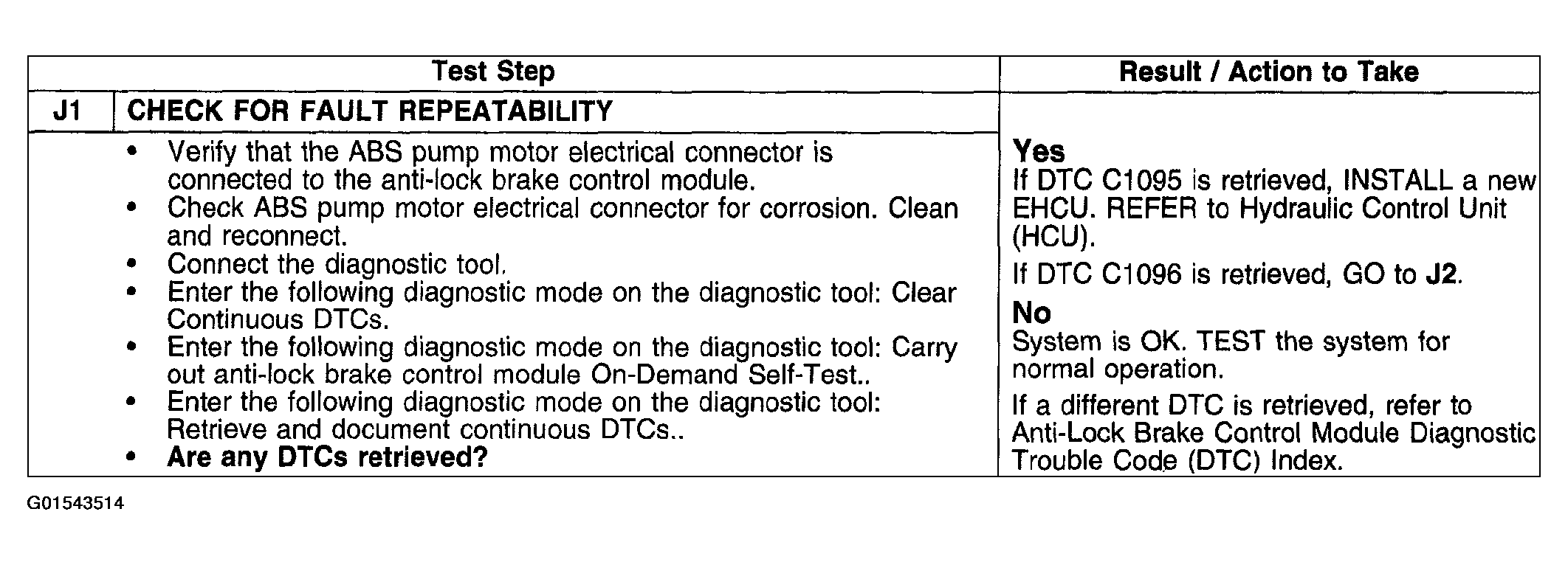

Fig 1: Pinpoint Test J: DTCs C1095, C1096 - ABS Hydraulic Pump Motor Failure (J1)
G01543514Courtesy of FORD MOTOR CO.

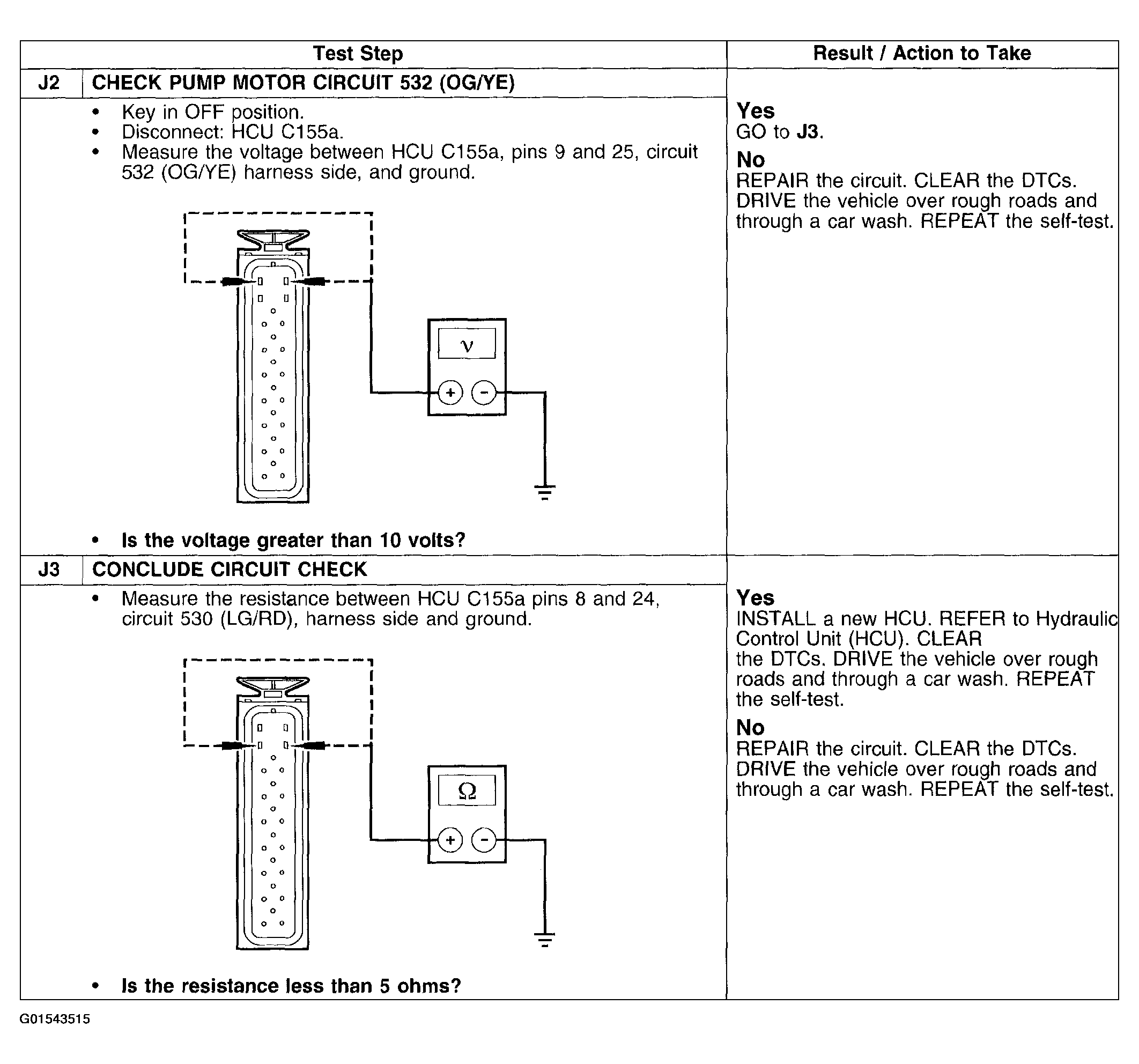

Fig 2: Pinpoint Test J: DTCs C1095, C1096 - ABS Hydraulic Pump Motor Failure (J2 & J3)
G01543515Courtesy of FORD MOTOR CO.
