Pinpoint Test B: DTC C1155: Testing

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

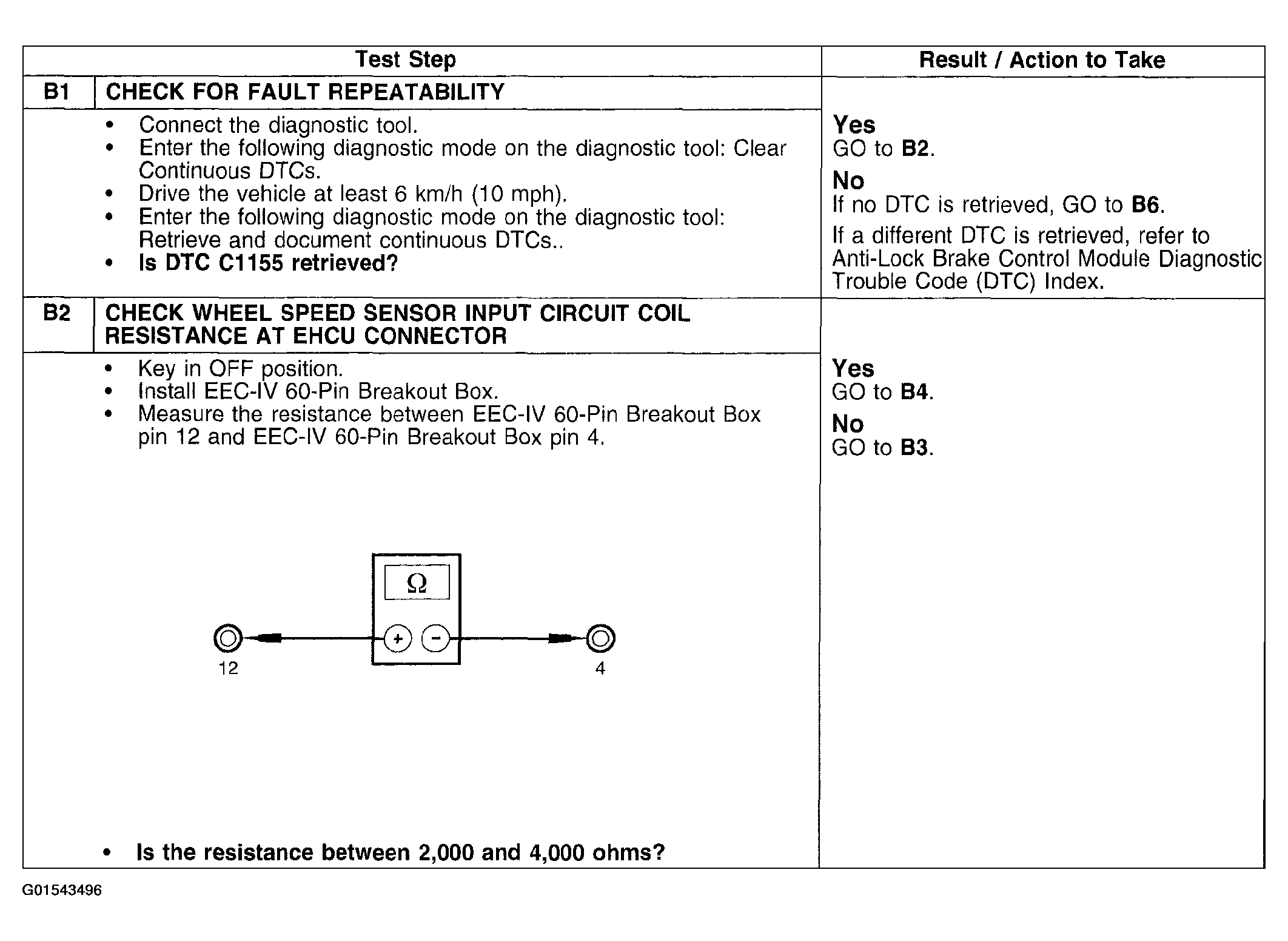

Fig 1: Pinpoint Test B: DTC C1155 - Left Front Wheel Speed Sensor Input Circuit Failure (B1 & B2)

Courtesy of FORD MOTOR CO.

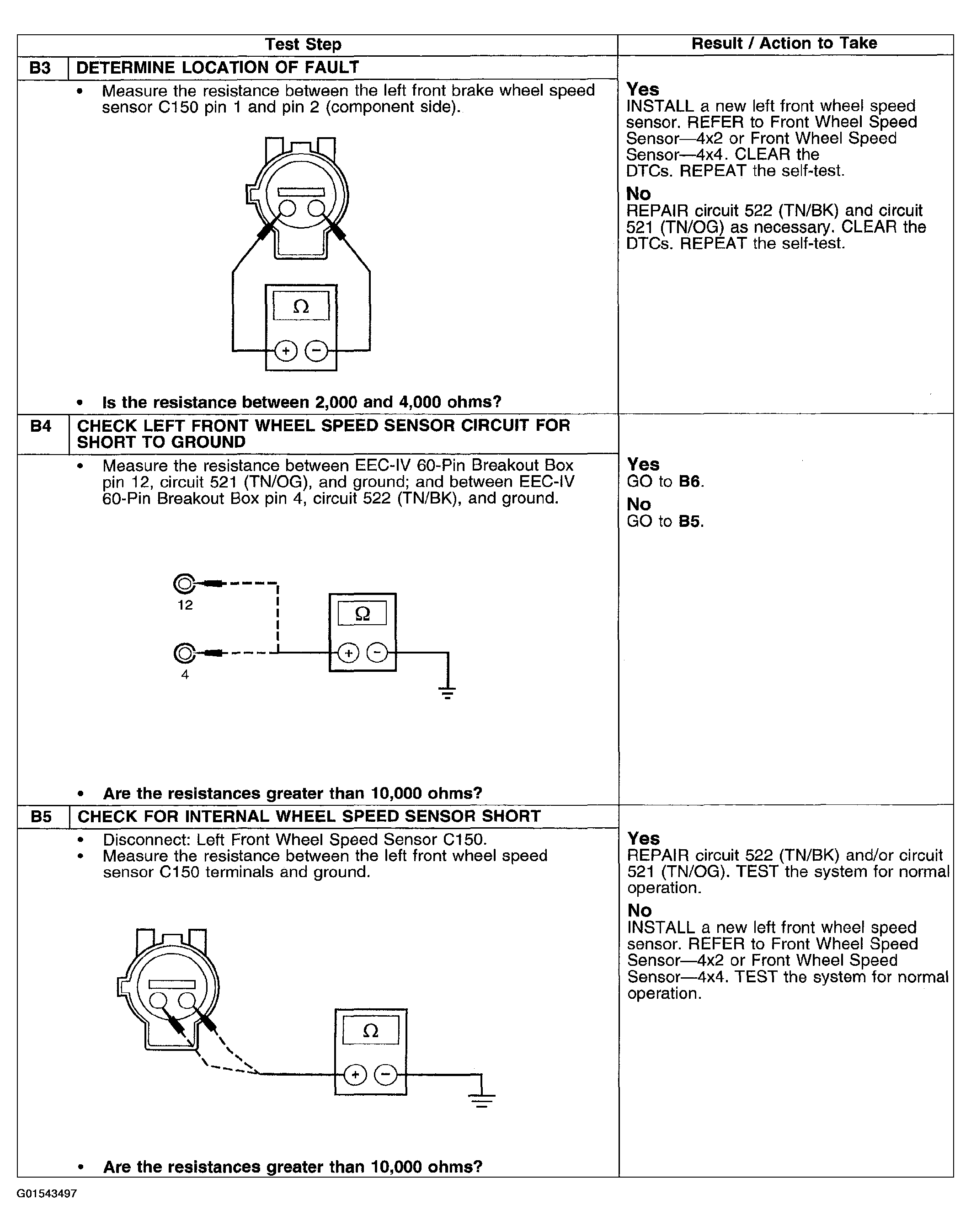

Fig 2: Pinpoint Test B: DTC C1155 - Left Front Wheel Speed Sensor Input Circuit Failure (B3-B5)

Courtesy of FORD MOTOR CO.

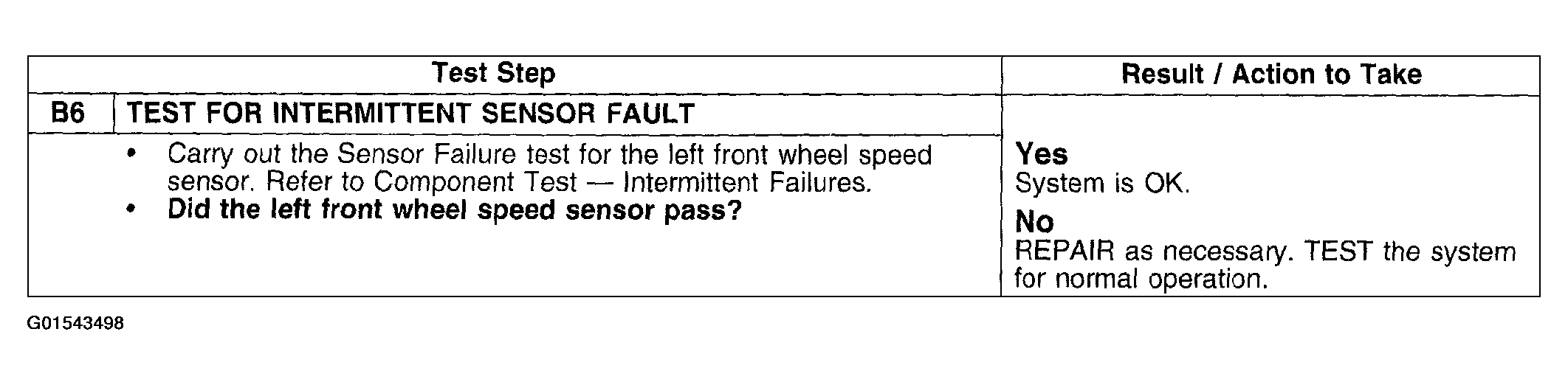

Fig 3: Pinpoint Test B: DTC C1155 - Left Front Wheel Speed Sensor Input Circuit Failure (B6)

Courtesy of FORD MOTOR CO.
