Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with adjustable pedal

Remove the brake pedal motor. Refer to Brake Pedal Motor .
Remove the stoplight switch retaining pin.

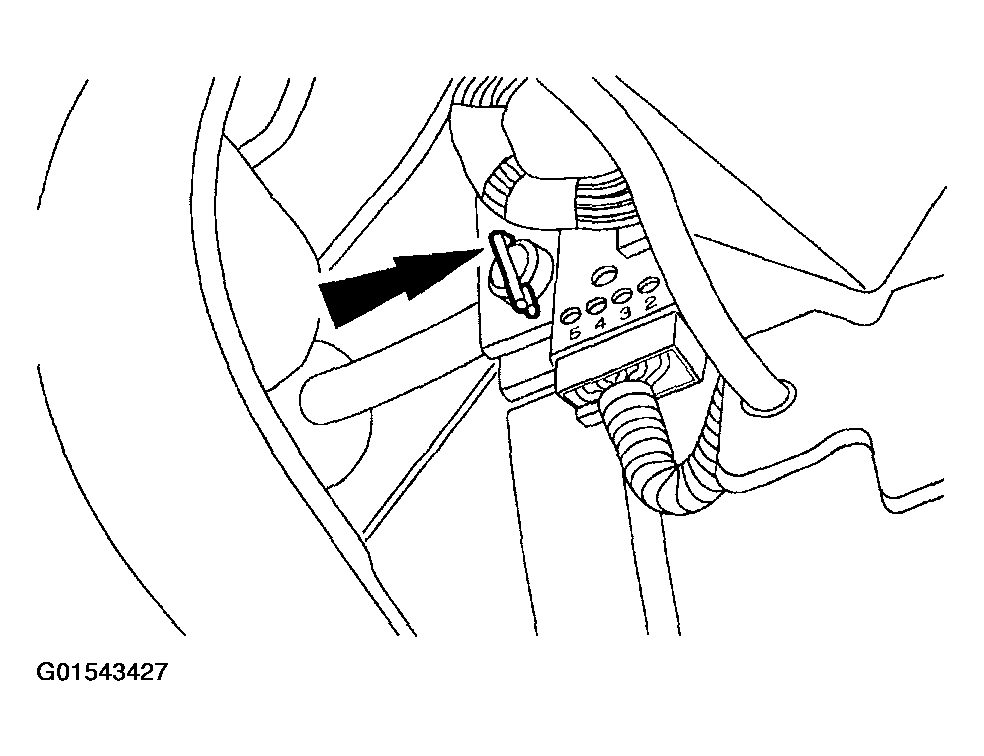

Fig 1: Removing Stoplight Switch Retaining Pin
Courtesy of FORD MOTOR CO.
Slide the stoplight switch (13480) and booster push rod from the brake pedal pin.

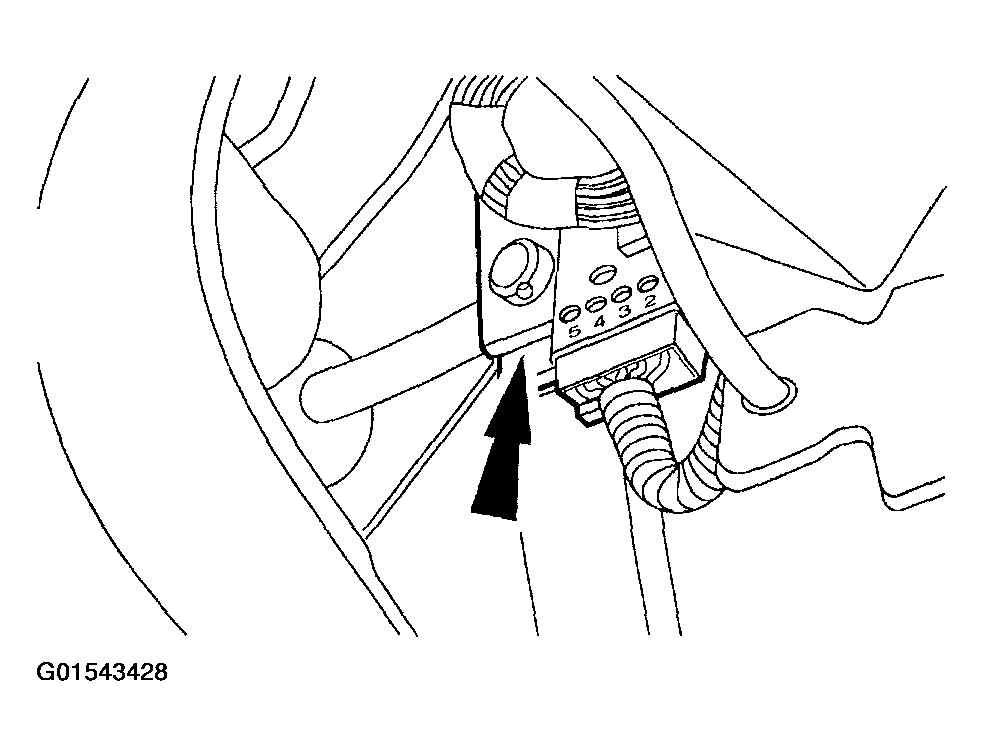

Fig 2: Sliding Stoplight Switch And Booster Push Rod From Brake Pedal Pin
Courtesy of FORD MOTOR CO.

All vehicles
Remove the brake pedal and bracket retaining nuts.

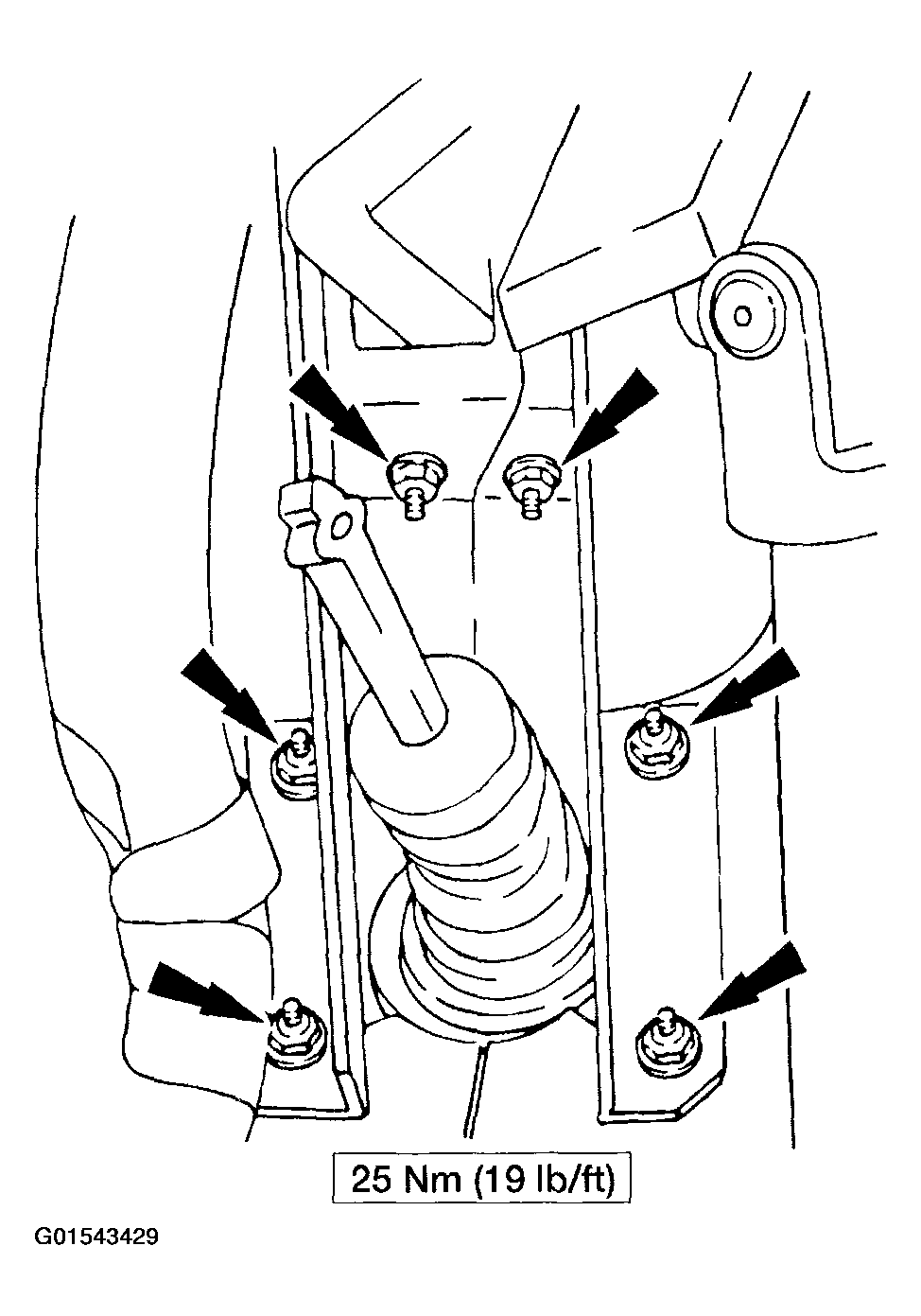

Fig 3: Removing Brake Pedal And Bracket Retaining Nuts
Courtesy of FORD MOTOR CO.

Vehicles equipped with 7.3L diesel engine
Remove the air cleaner assembly.
All vehicles
Position the brake booster assembly out of the way.
Remove the brake pedal and bracket.

CAUTION: The brake pedal (2455) and the accelerator pedal (9725) must be in the same position before installation. The pedals must be in the completely rearward (toward the driver) position.

To install, reverse the removal procedure.
