Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Place the gearshift lever in first gear.
Disconnect the brake pedal motor electrical connector.

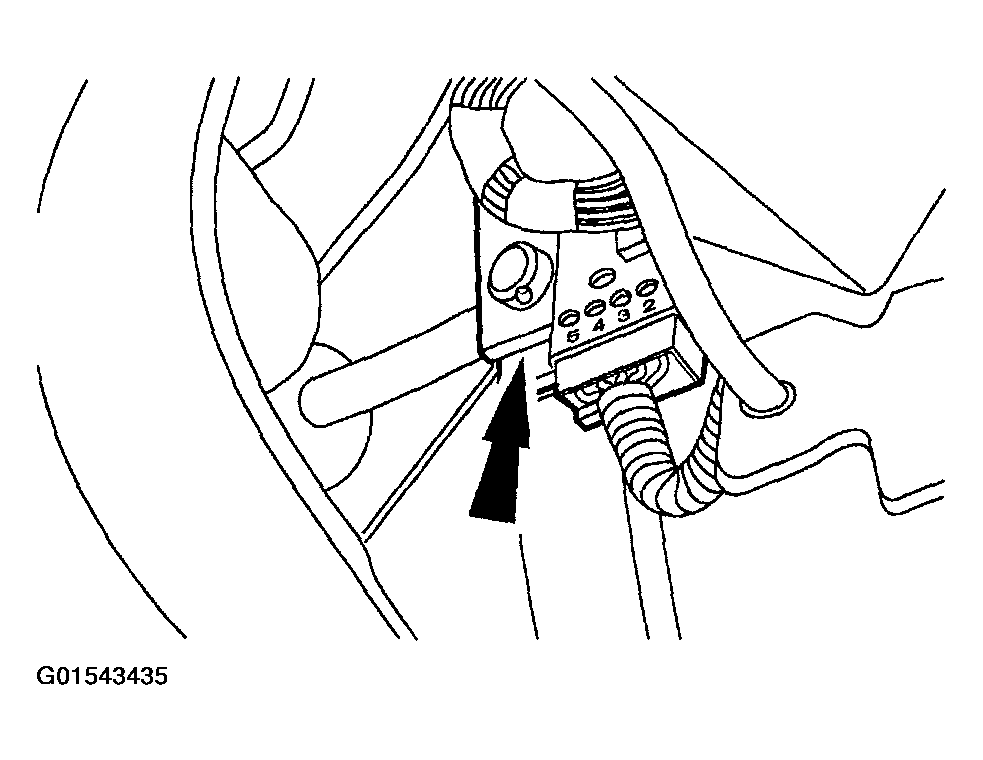

Fig 1: Disconnecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the brake pedal motor-to-accelerator pedal cable from the accelerator pedal by pulling the cable retainer outward.

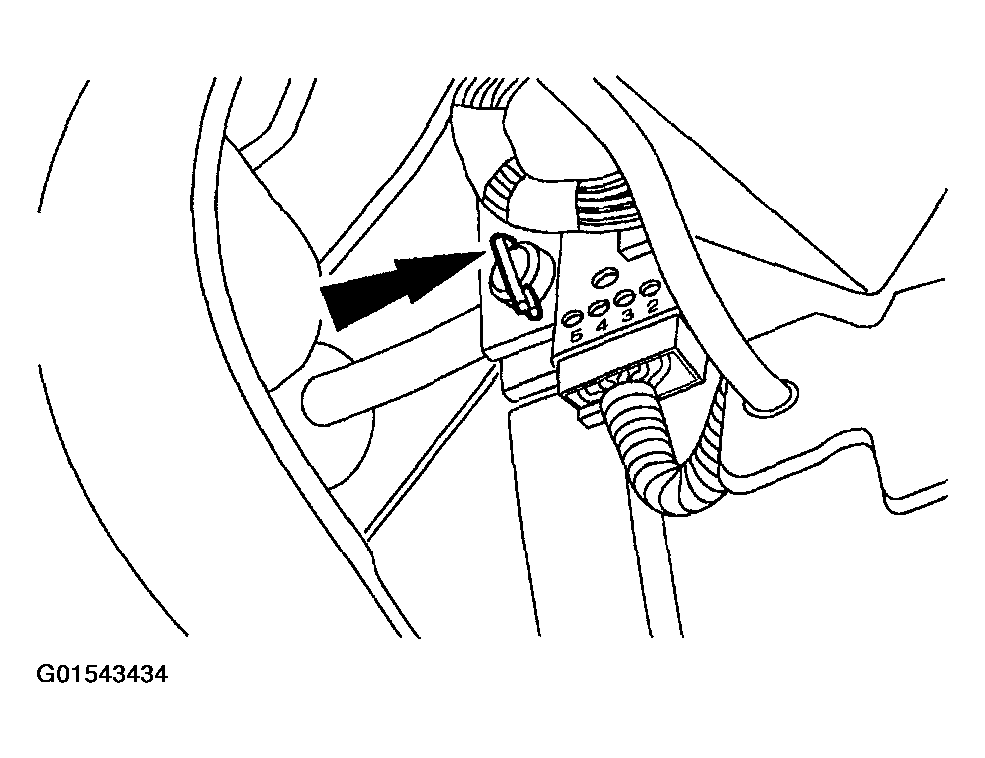

Fig 2: Disconnecting Brake Pedal Motor-To-Accelerator Pedal Cable From Accelerator Pedal
Courtesy of FORD MOTOR CO.
Disconnect the brake pedal motor-to-brake pedal cable from the brake pedal by pulling the cable retainer outward.

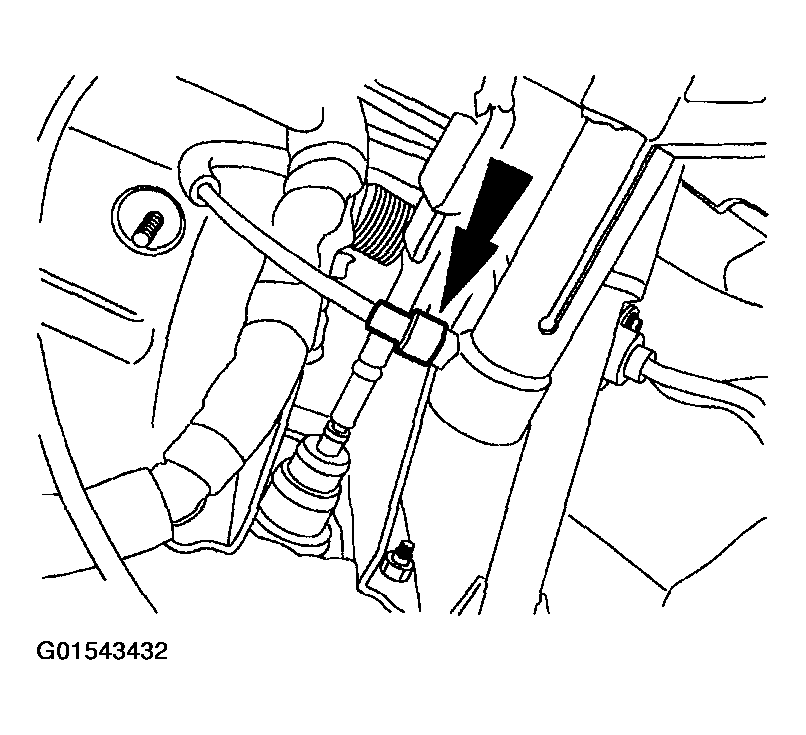

Fig 3: Disconnecting Brake Pedal Motor-To-Brake Pedal Cable From Brake Pedal
Courtesy of FORD MOTOR CO.
Disconnect the transmission shift cable from the steering column shift tube lever.

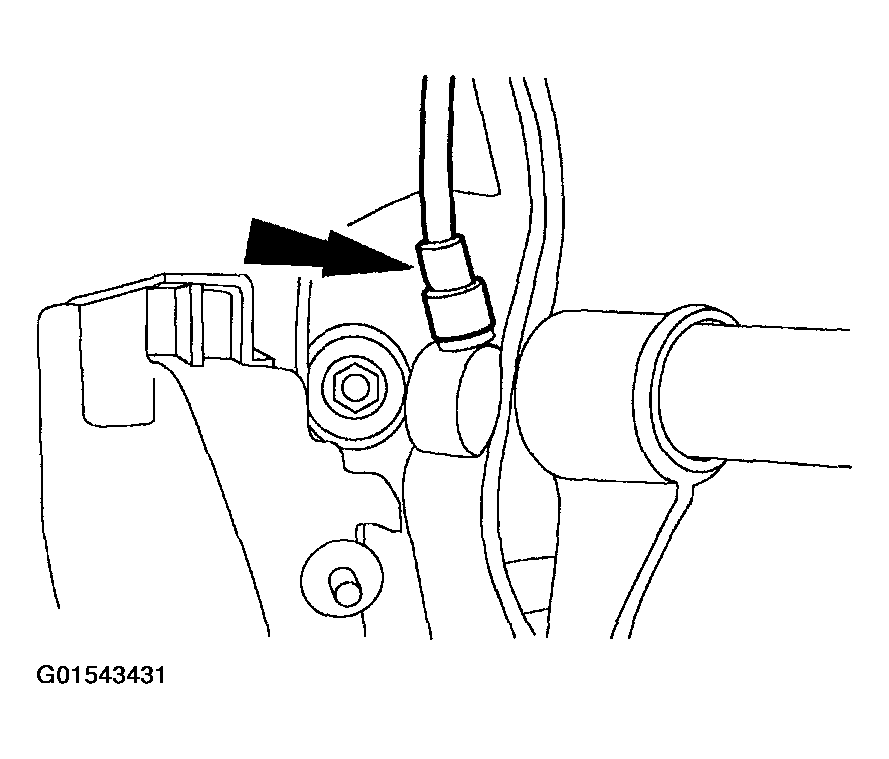

Fig 4: Disconnecting Transmission Shift Cable From Steering Column Shift Tube Lever
Courtesy of FORD MOTOR CO.
Remove the spotlight switch retaining pin.

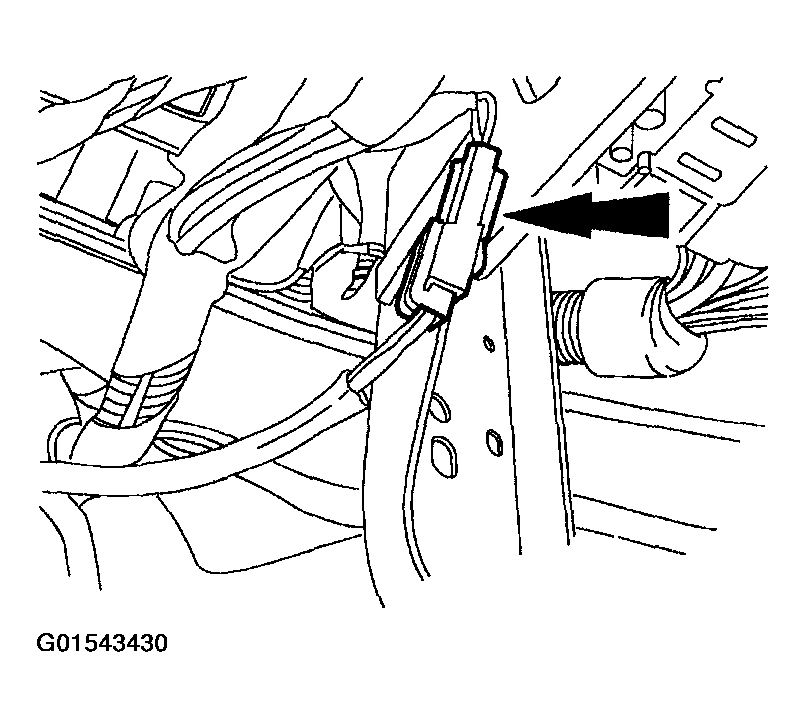

Fig 5: Removing Spotlight Switch Retaining Pin
Courtesy of FORD MOTOR CO.
Slide the stoplight switch (13480) and booster push rod from the brake pedal pin.

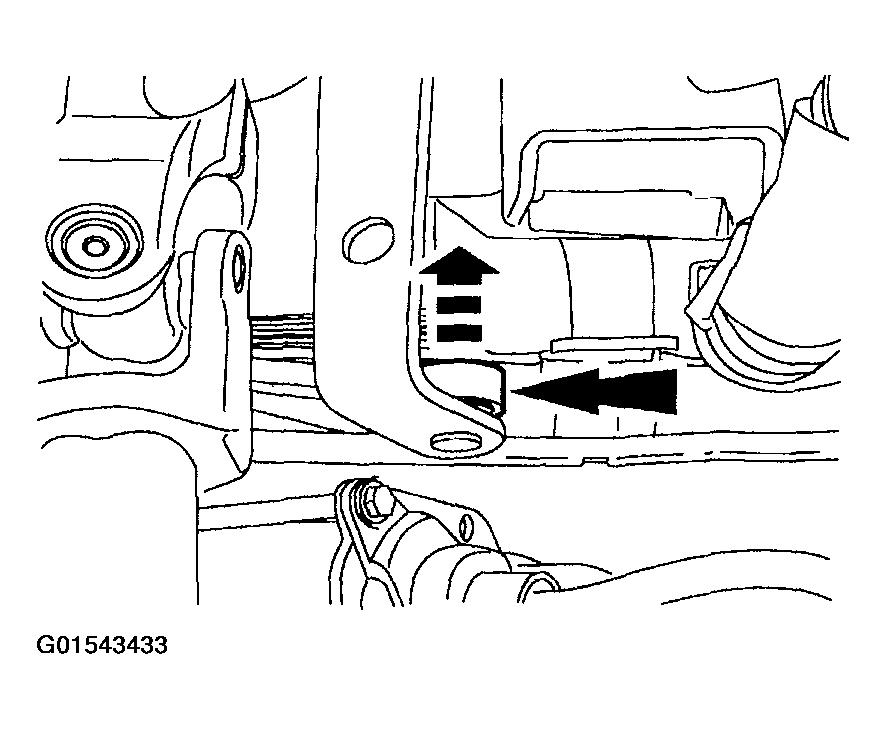

Fig 6: Sliding Stoplight Switch And Booster Push Rod From Brake Pedal Pin
Courtesy of FORD MOTOR CO.
Remove the brake pedal motor bolts.

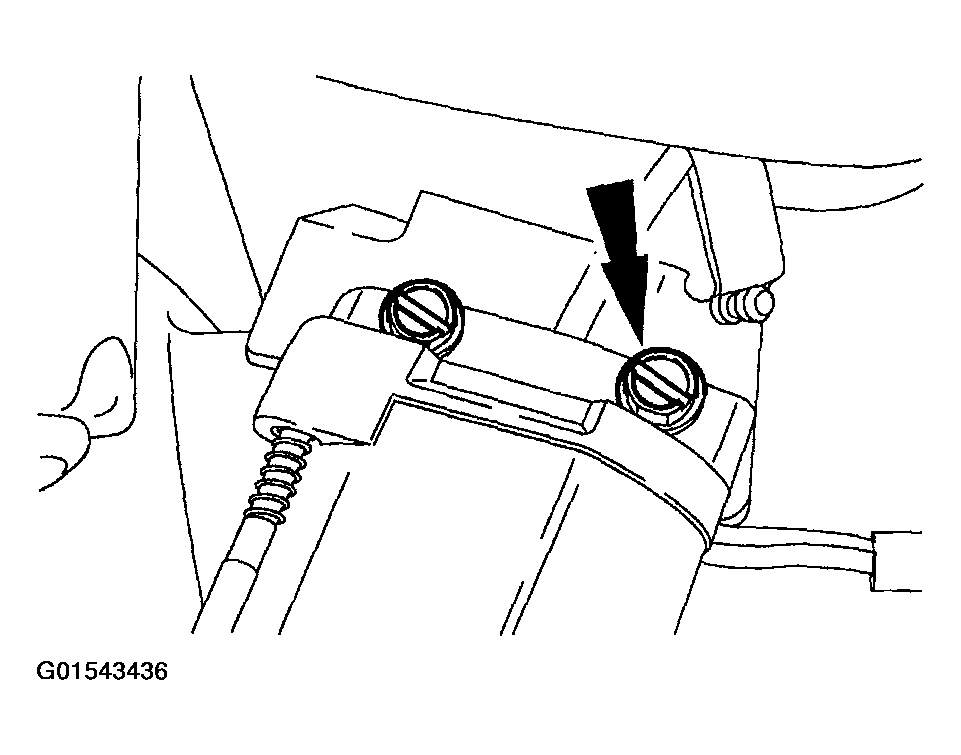

Fig 7: Removing Brake Pedal Motor Bolts
Courtesy of FORD MOTOR CO.

NOTE: Brake pedal motor-to-pedal cable must be routed around the main wiring (14401) harness to prevent cable binding.

NOTE: Hand-tighten the bolts.

To install, reverse the removal procedure.
