Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake pedal motor electrical connector.

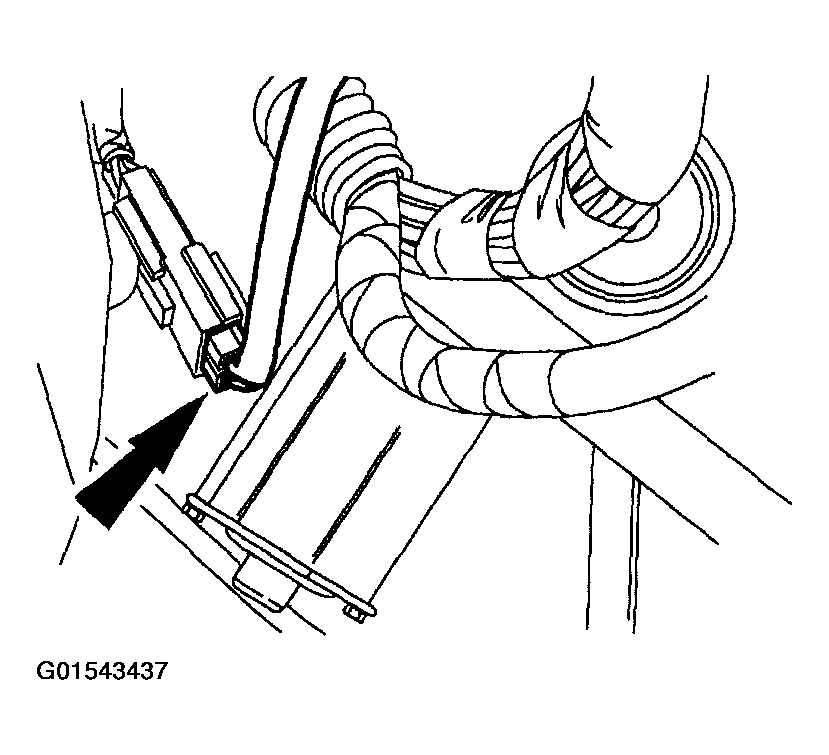

Fig 1: Disconnecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the brake pedal motor bolts.

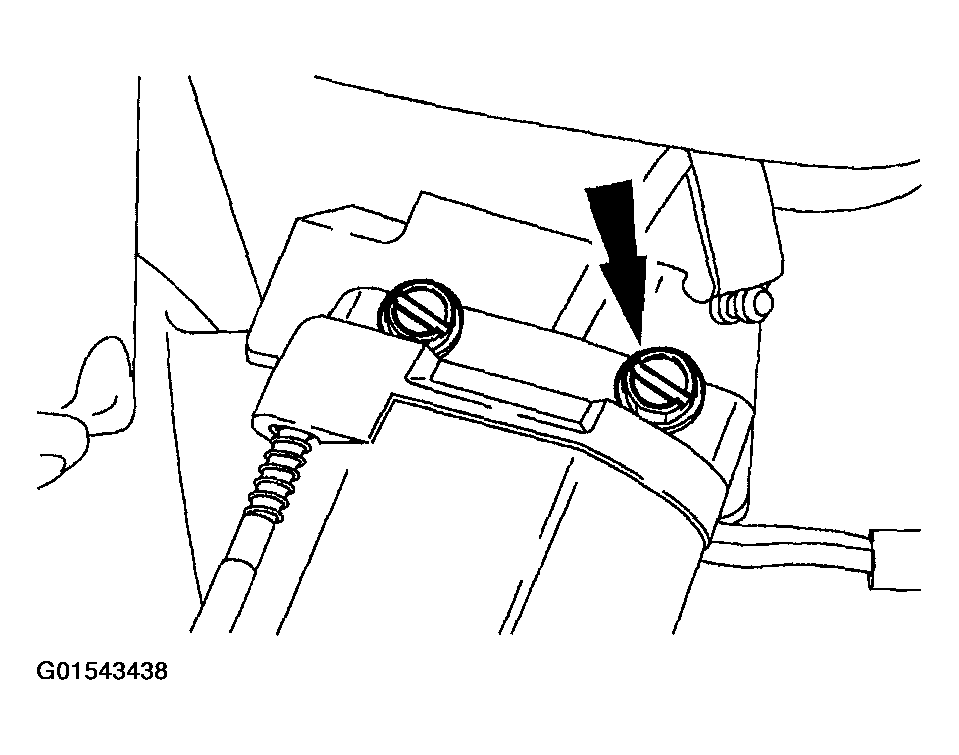

Fig 2: Removing Brake Pedal Motor Bolts
Courtesy of FORD MOTOR CO.
Remove the brake pedal to motor cable (2C431).

Fig 3: Removing Brake Pedal To Motor Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
