Brake Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

Disconnect the brake master cylinder fluid level switch.

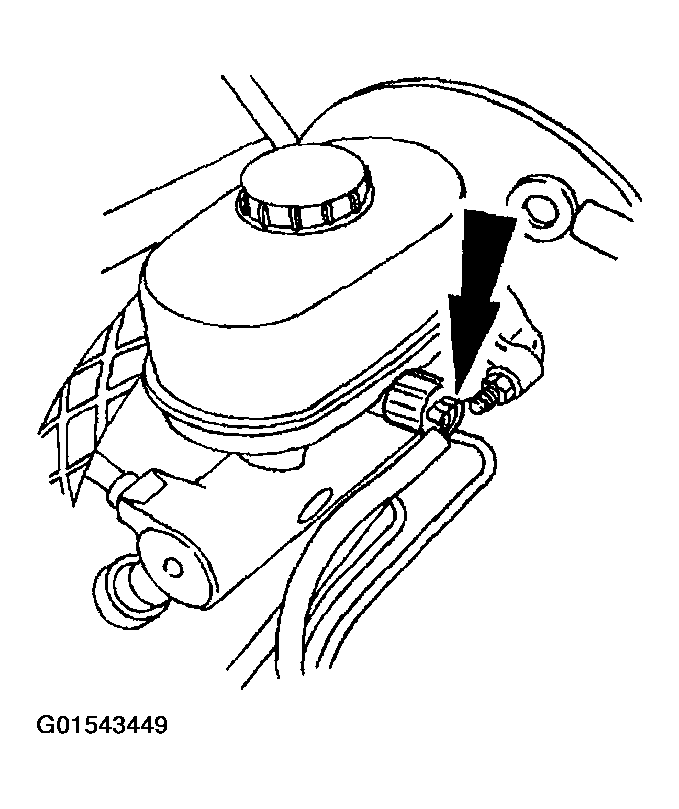

Fig 1: Disconnecting Brake Master Cylinder Fluid Level Switch
Courtesy of FORD MOTOR CO.
Use a suitable suction device to drain the brake master cylinder reservoir.
Carefully pry up on the brake master cylinder reservoir to remove.

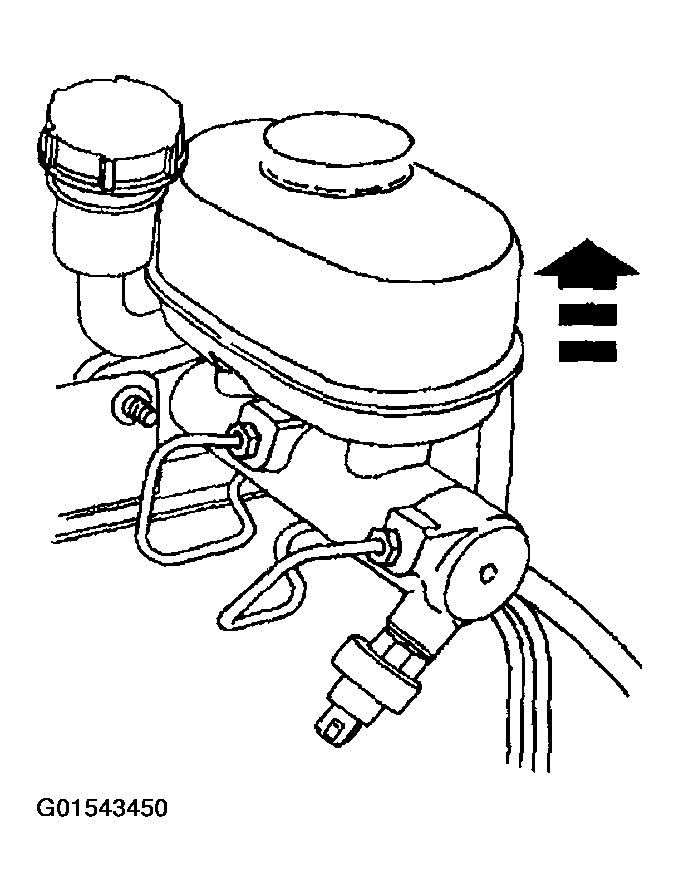

Fig 2: Removing Brake Master Cylinder Reservoir
Courtesy of FORD MOTOR CO.
