Shoes - Rear Wheel: Removal
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Asbestos fiber dust can be present on brake and clutch assemblies and is hazardous if inhaled. Brake and clutch assemblies must be cleaned using a vacuum cleaner recommended for use with asbestos fibers such as a brake/clutch/service vacuum. The bag must be labeled per OSHA instruction, sealed, and the trash hauler notified as to the bag's contents. If a vacuum suitable for asbestos is not available, cleaning must be done wet. If dust generation is still possible, technicians must wear government-approved toxic dust purifying respirators.
WARNING:
Occupational health and safety act (OSHA) requires areas where asbestos dust generation is possible to be isolated and posted with warning signs. Only technicians performing brake or clutch repair are to be present in the area.
- Remove the rear disc brake rotor. Refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .
- Disconnect the rear parking brake cable at the parking brake intermediate cable (2A793).

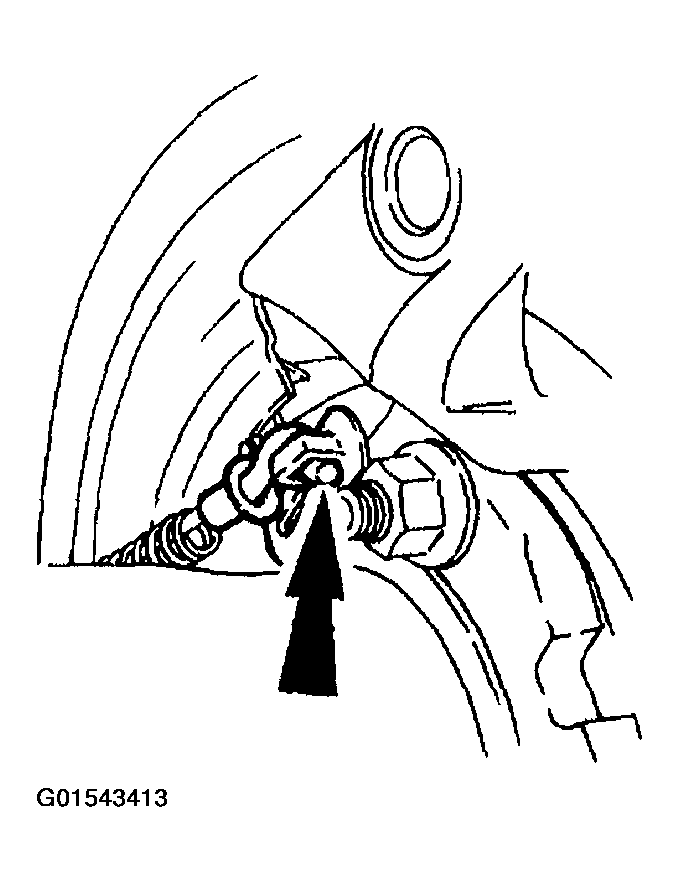

- Disconnect the parking brake cable at the parking brake lever.

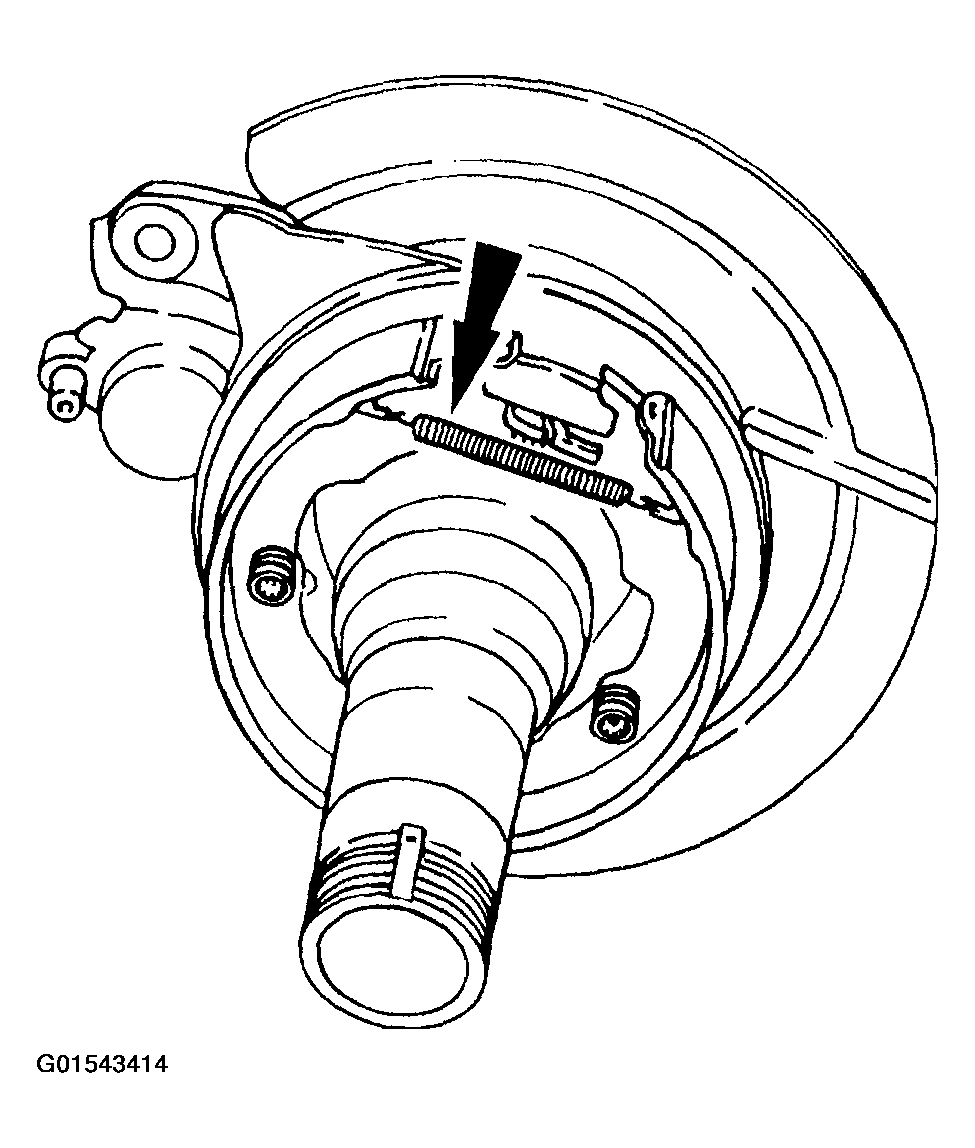

- Remove the outboard brake shoe retracting spring.

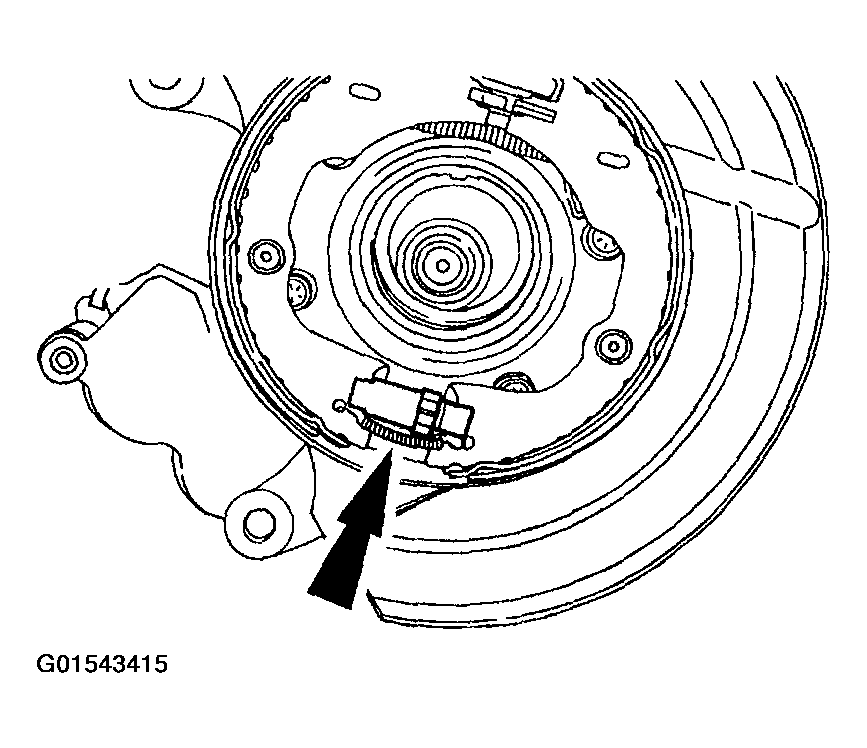

- Remove the brake shoe adjusting screw spring.

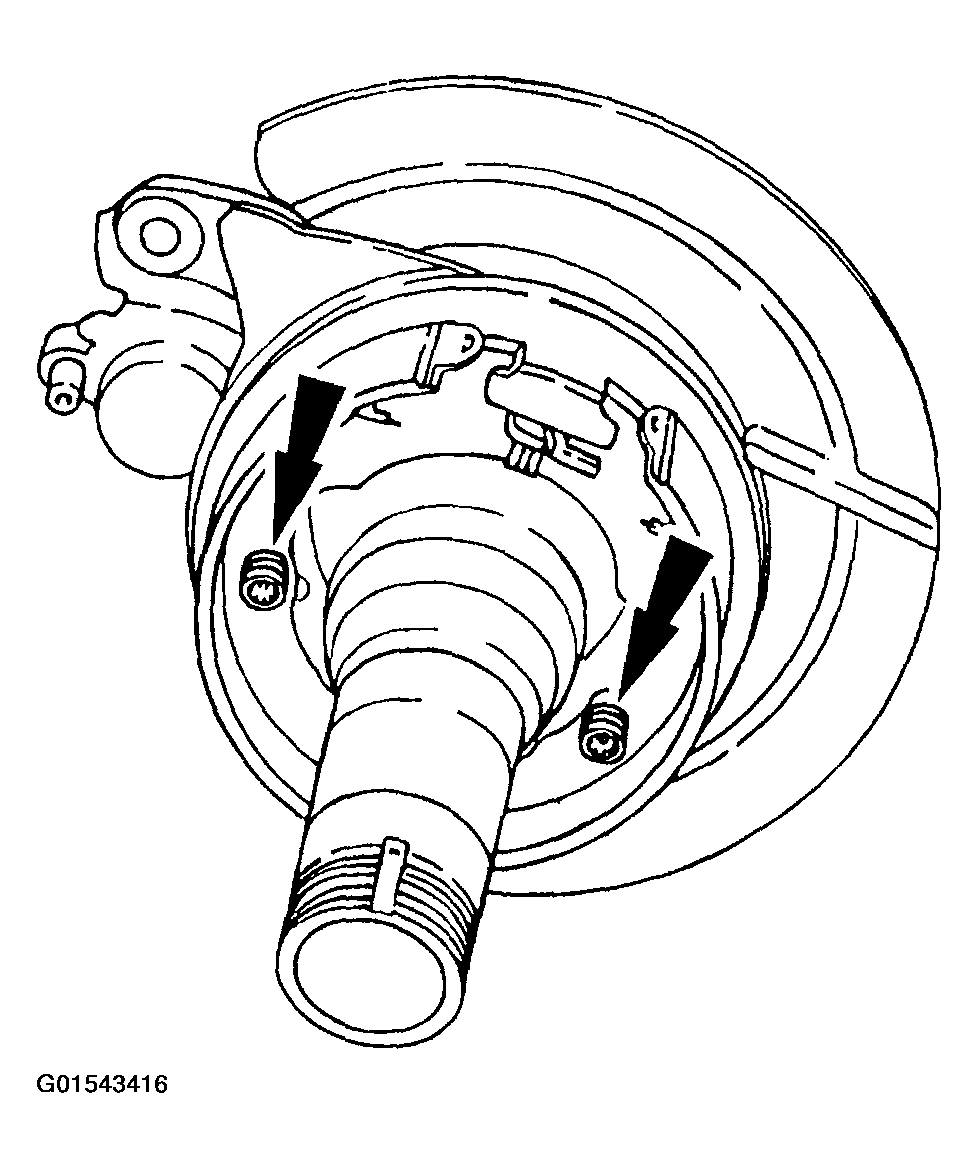

- Remove the brake shoe hold-down springs.

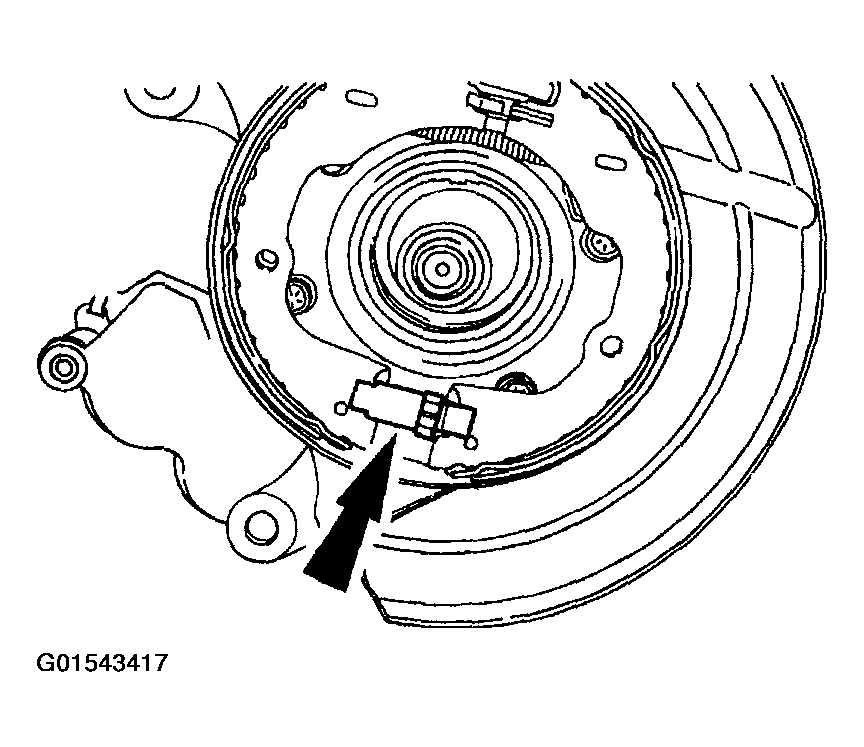

- Remove the brake adjuster screw (2041).

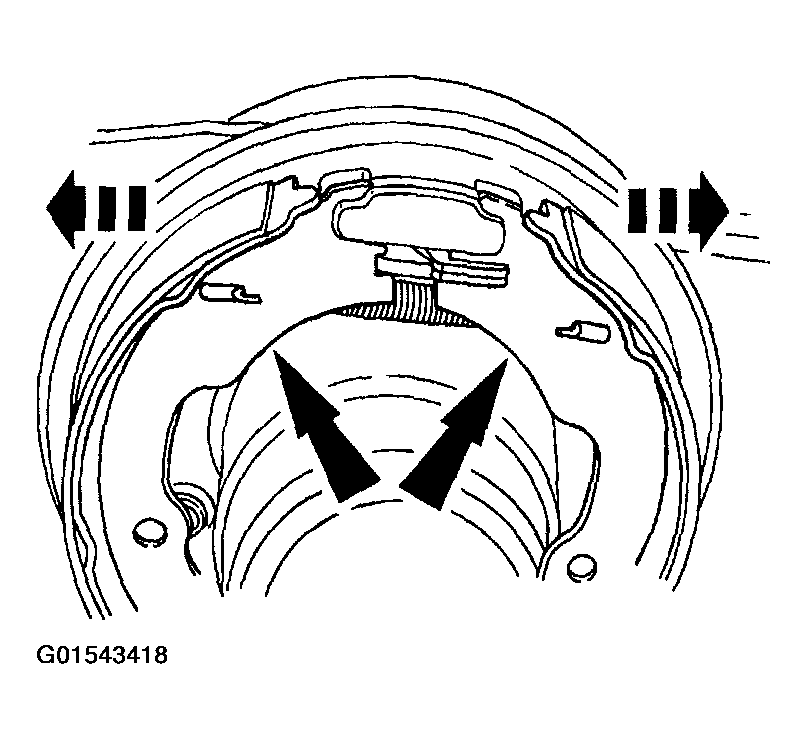

- Remove the parking brake shoe and linings (2N712) along with the inboard brake shoe retracting spring.
- Inspect the components for excessive wear or damage and install new as required.
