Axle and Differential Drain and Refill: Material

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Specifications Material
G01543221Courtesy of FORD MOTOR CO.
  1. Raise and support the vehicle.
  2. Drain and refill the axle lubricant.
    1. Remove the fill plug.
    2. Using the special tool, remove the axle lubricant through the fill hole.
    3. Fill the axle with the specified type and quantity of lubricant.
    4. Install the fill plug.

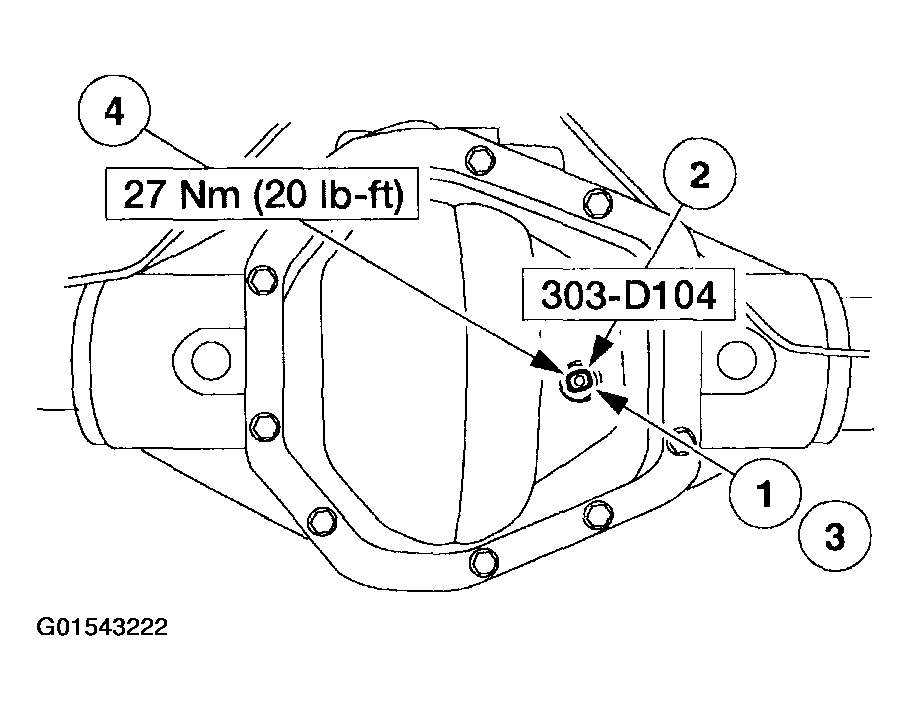

      Fig 2: Installing Fill Plug
      G01543222Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
