Front Drive Axle, Disassembled View

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

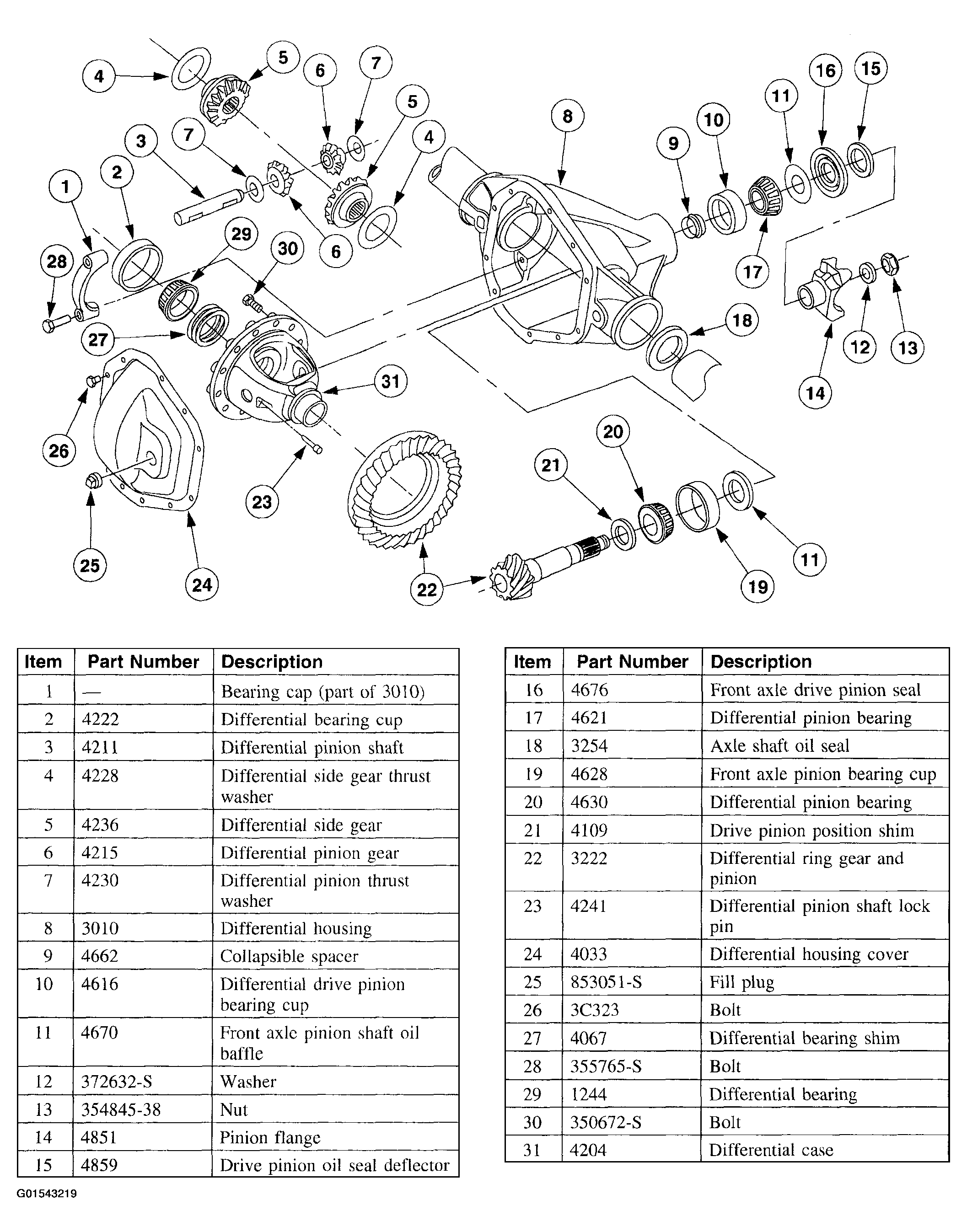

Fig 1: Front Drive Axle Disassembled View
G01543219Courtesy of FORD MOTOR CO.
