Special Tool(s)

WARNING: This page is about a different car, the 2003 Ford Pickup and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

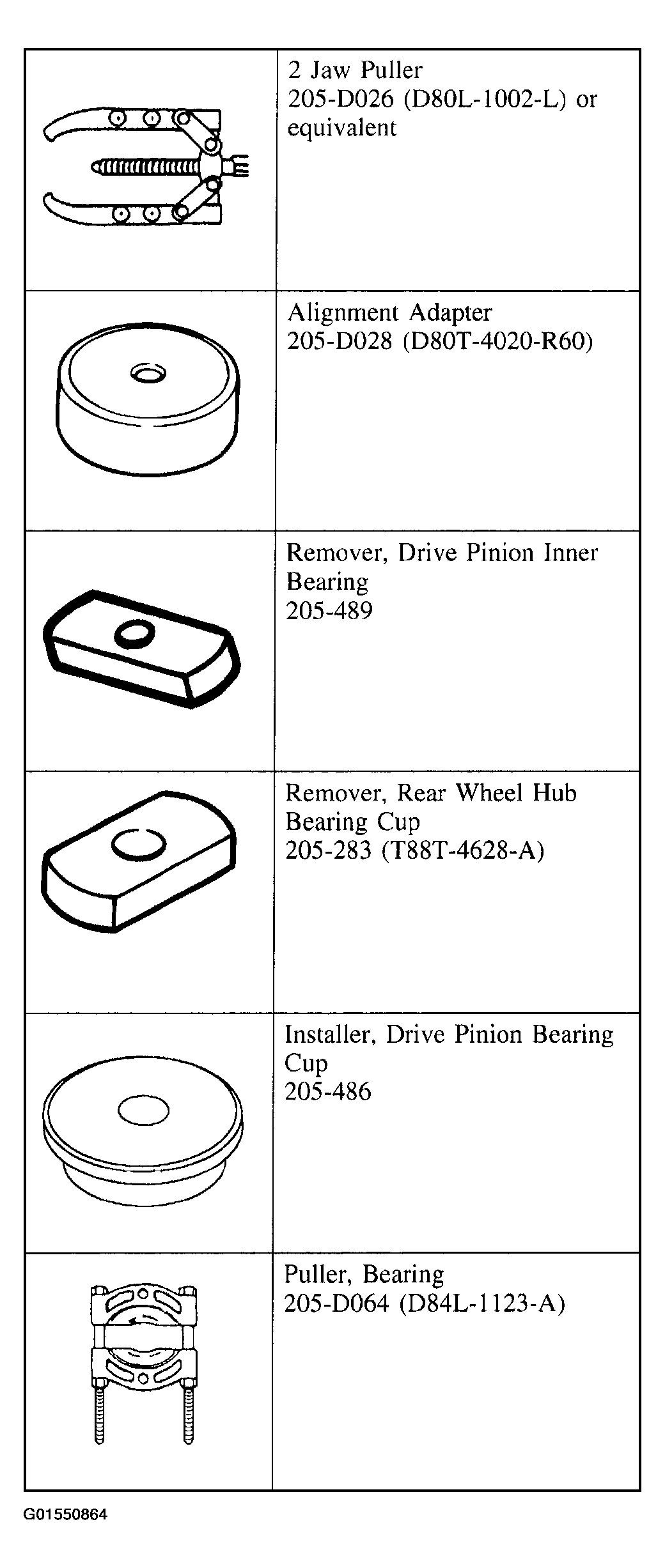

Fig 1: Identifying Special Tool (1 Of 4)

Courtesy of FORD MOTOR CO.

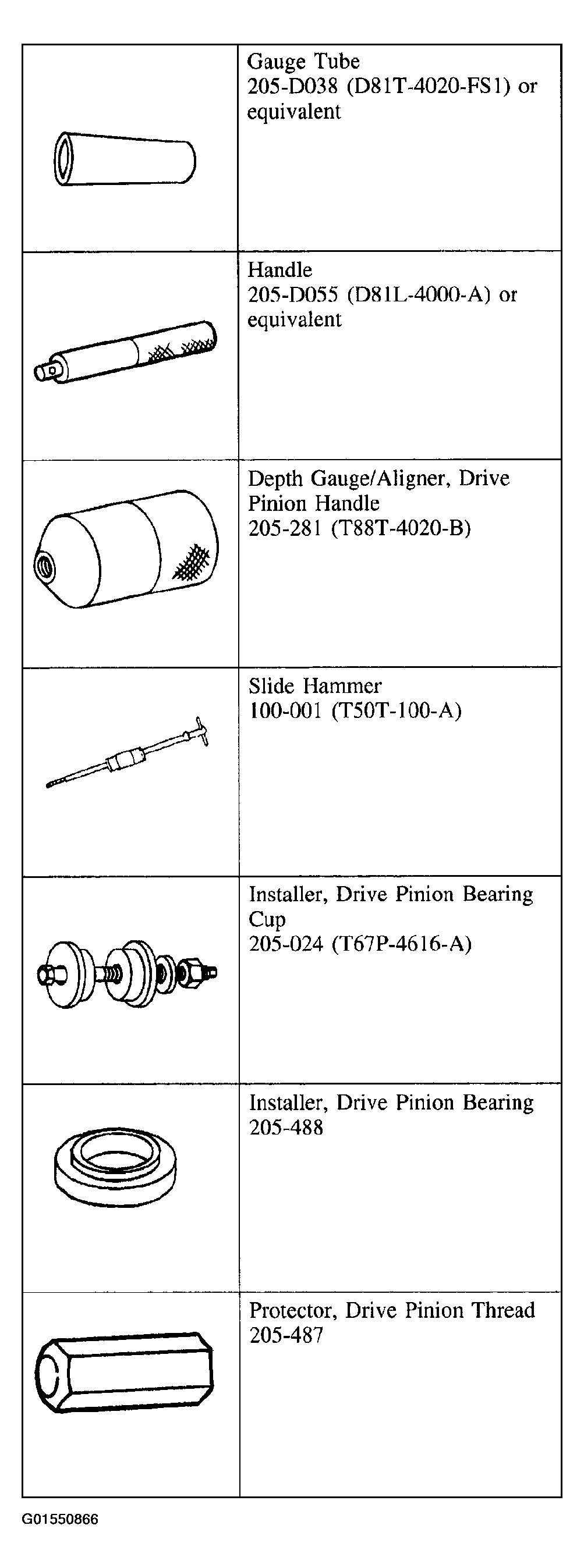

Fig 2: Identifying Special Tool (2 Of 4)

Courtesy of FORD MOTOR CO.

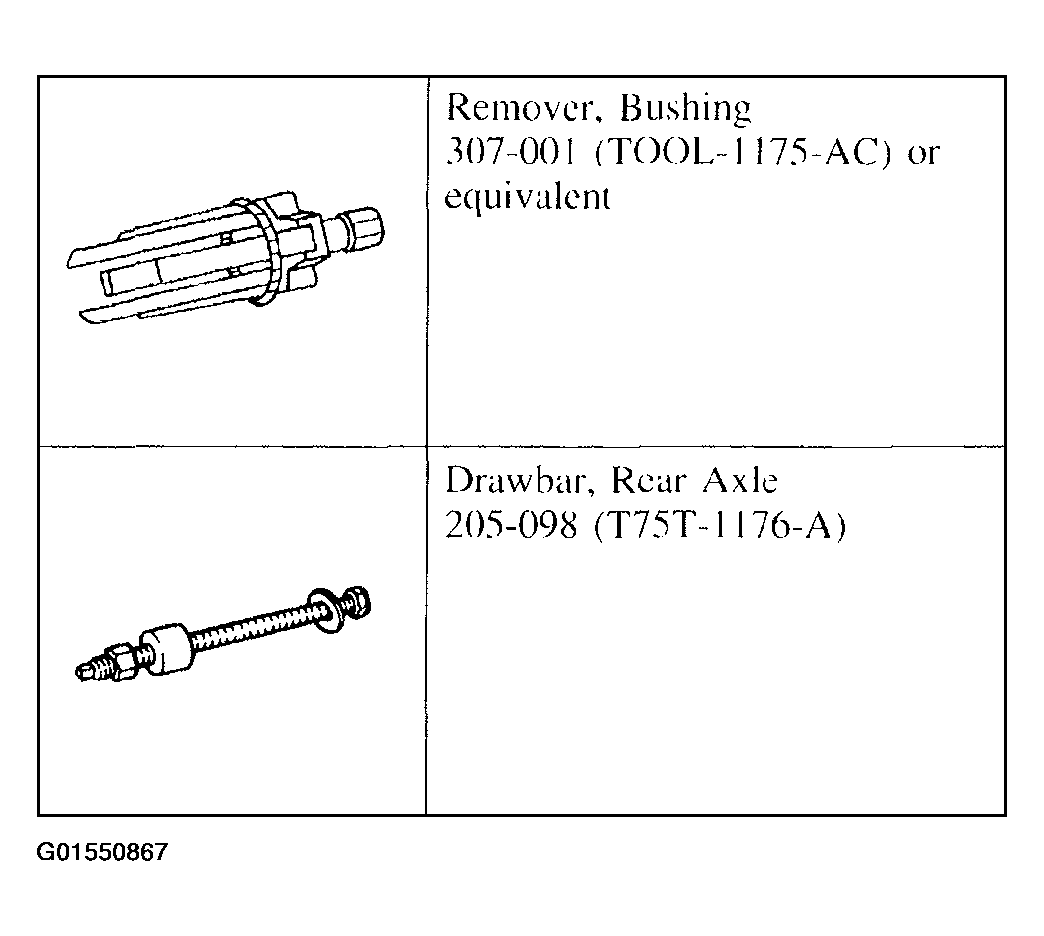

Fig 3: Identifying Special Tool (3 Of 4)

Courtesy of FORD MOTOR CO.

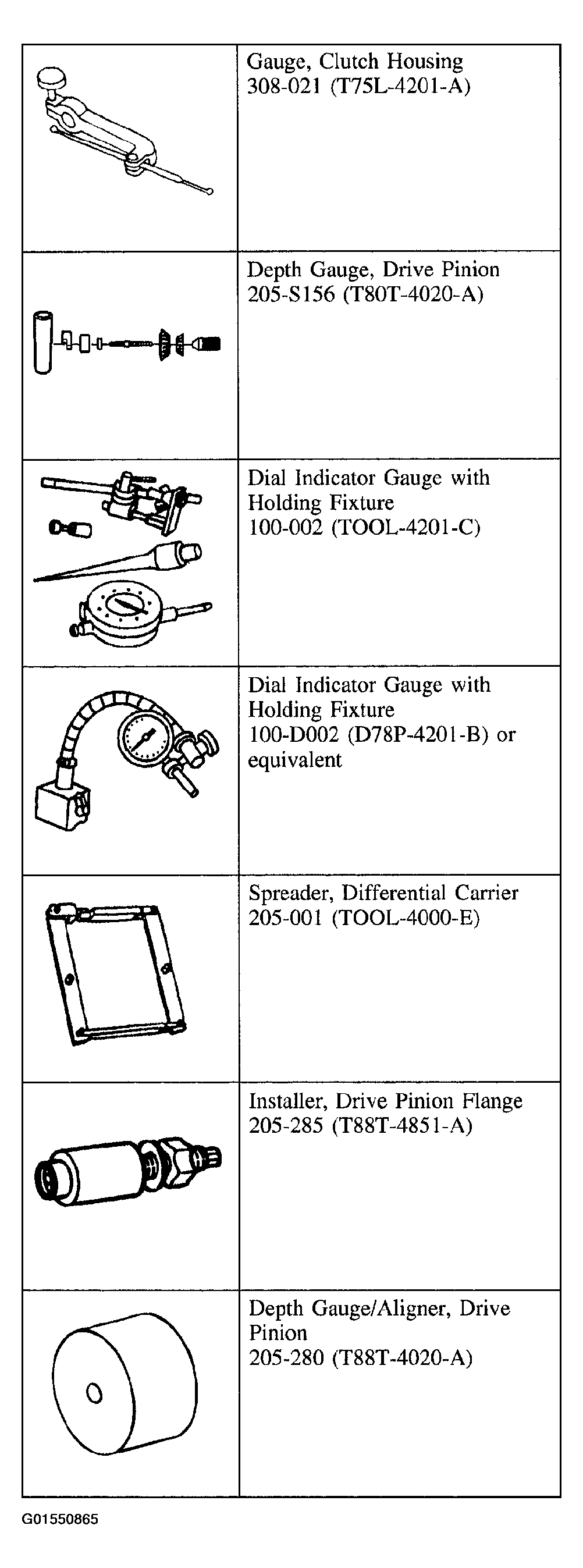

Fig 4: Identifying Special Tool (4 Of 4)

Courtesy of FORD MOTOR CO.
