Driveshaft - Rear, Three-Piece: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

For vehicles equipped with a circular flange, align the index marks and connect the front driveshaft to the transmission. Install the new bolts.
- Hand-tighten only; do not tighten at this time.

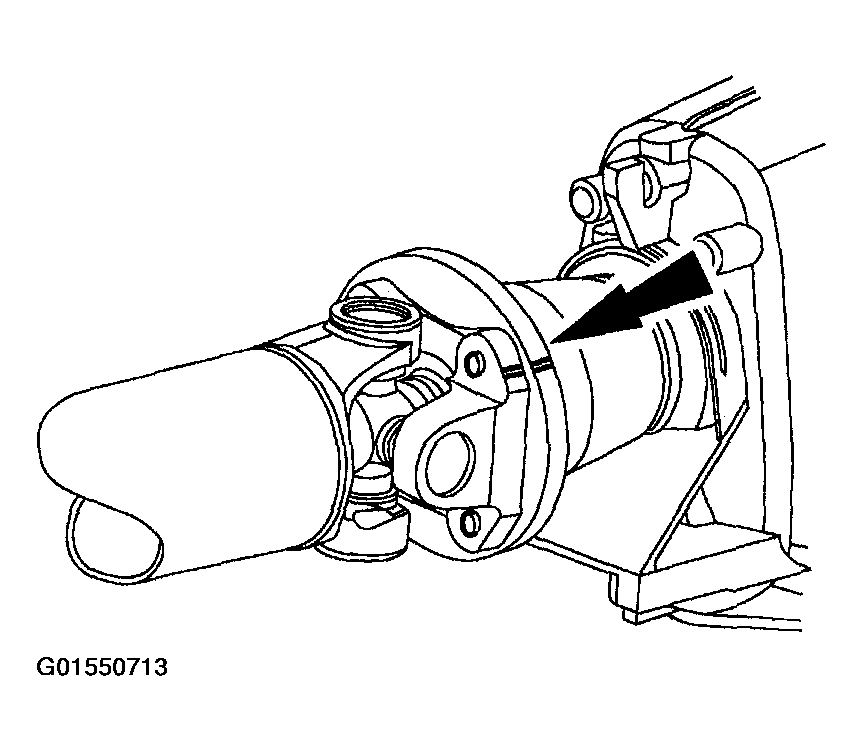

  Fig 1: Aligning Index Marks And Connecting Front Driveshaft To Transmission
  Courtesy of FORD MOTOR CO.
For vehicles equipped with a slip yoke, align the index marks and slide the driveshaft slip yoke onto the output shaft.
Position the center support bearing and install the bolts.
- Hand-tighten only; do not tighten at this time.

  Fig 2: Installing Center Support Bearing Bolts
  Courtesy of FORD MOTOR CO.
Tighten the driveshaft to transmission flange bolts and the driveshaft center bearing bolts.

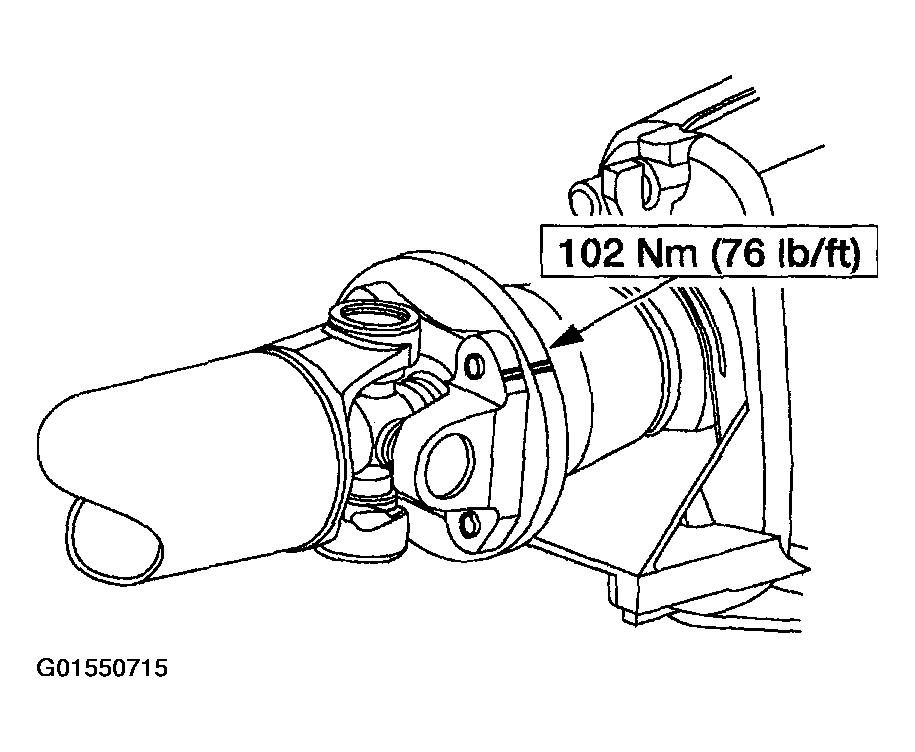

Fig 3: Installing Driveshaft To Transmission Flange Bolts
Courtesy of FORD MOTOR CO.

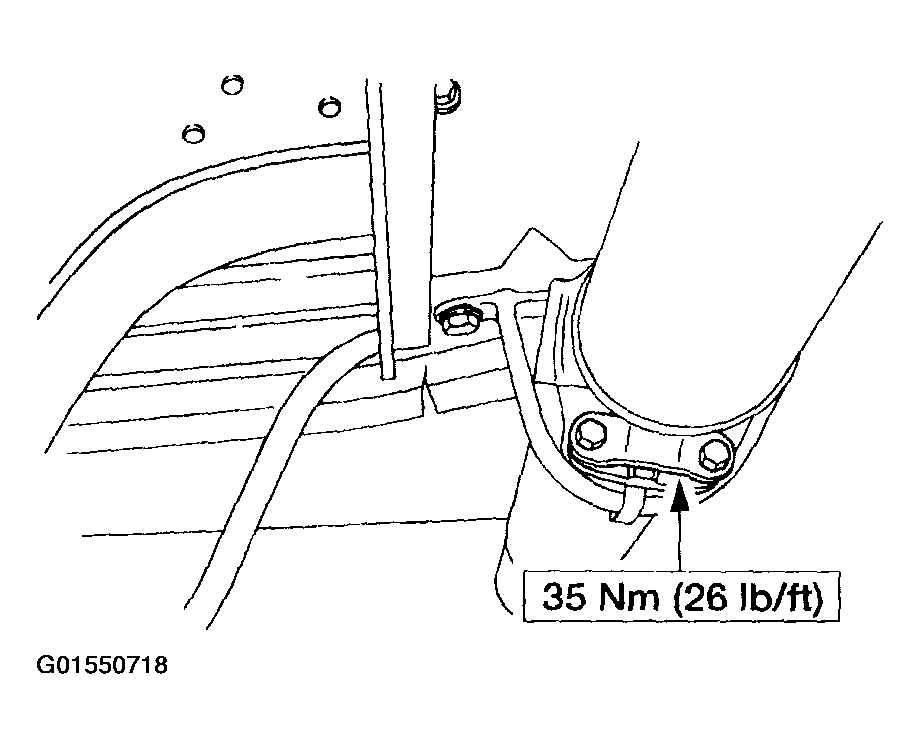

Fig 4: Tightening Driveshaft Center Bearing Bolts
Courtesy of FORD MOTOR CO.
Position the rear driveshaft assembly and install the center support bearing bolts.
- Hand-tighten only; do not tighten at this time.

  Fig 5: Installing Center Support Bearing Bolts
  Courtesy of FORD MOTOR CO.
Connect the rear driveshaft assembly to the front driveshaft. Install the new retainers and bolts.

Fig 6: Connecting Rear Driveshaft Assembly To Front Driveshaft
Courtesy of FORD MOTOR CO.
Connect the rear driveshaft assembly to the rear axle. Install the new retainers and bolts.

Fig 7: Connecting Rear Driveshaft Assembly To Rear Axle
Courtesy of FORD MOTOR CO.
Tighten the driveshaft center support bearing bolts.

Fig 8: Installing Center Bearing Support Bolts
Courtesy of FORD MOTOR CO.
